Xeno XL-2059F Lithium Battery D 3.9V 16000mAh DX34615 Primary Lithium 3.9 V Non Rechargeable TL-6930
Xeno XL-2059F Lithium Battery D 3.9V 16000mAh DX34615 Primary Lithium 3.9 V Non Rechargeable TL-6930
Arnaizph
SKU:X02-0001
Couldn't load pickup availability
100% Original
100% Brand New
XENO Energy Lithium Thionyl Chloride D-battery. Great for a broad variety of applications within medical, military and E-Call.
Model : XL-2059F
Brand : Xeno
Made : Korea
Chemistry : Lithium Thionyl Chloride ( LiSOCl₂ )
Cell size : D

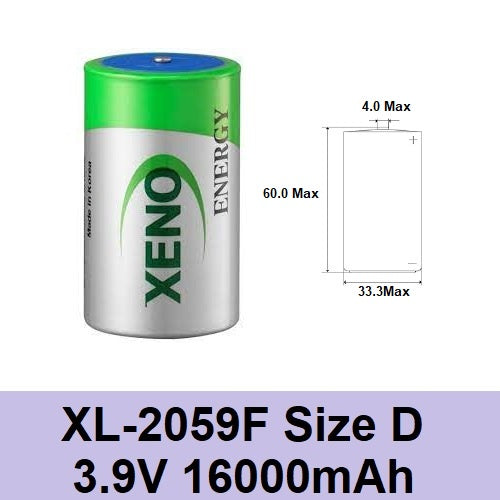

Dimension : Diameter: 33.3mm Height: 60.0mm
Nominal voltage : 3.9V
Nominal capacity : 16000mAh (at 30mA/20°C and 2.0V cut-off)
*3.9V and 16000mAh
*Suitable for battery packs
*Superior long shelf life
*Moderate Voltage Delay (TMV)
Max. discharge current : Continuous: 230mA Pulsed: 400mA
Maximum Pulse capability reading over 3.0V at 400mA/0.1sec. every 2 min. at +20°C,
10μA / cm² base current with fresh batteries.
The pulse capability can be different to the cell status, environment.
For max. pulse coverage, capacitor support is recommended.
Terminals/Connector : STD, T1, AX, Wire and Connector
Weight : 98g
Operating temperature range : -40 ~ +85°C
Please store batteries at a clean, cool (not over +30°C), dry and ventilated condition
