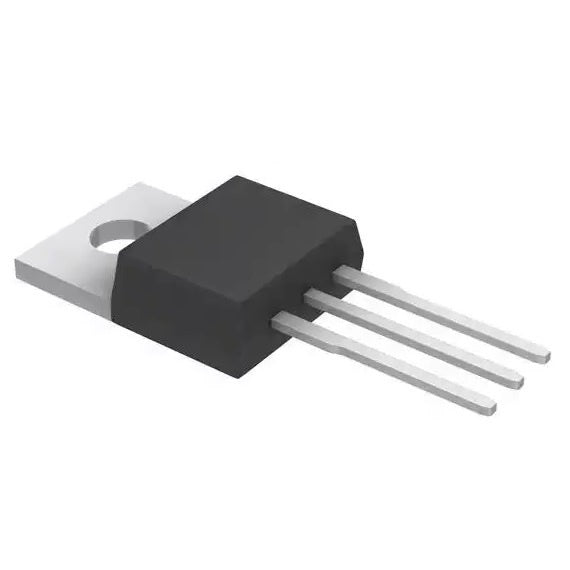

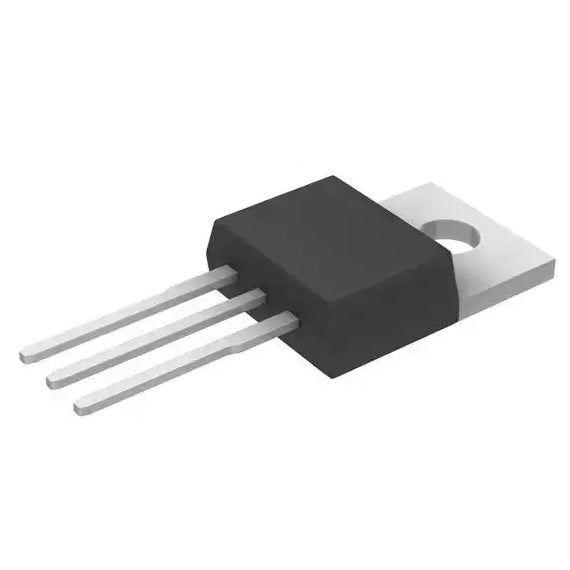

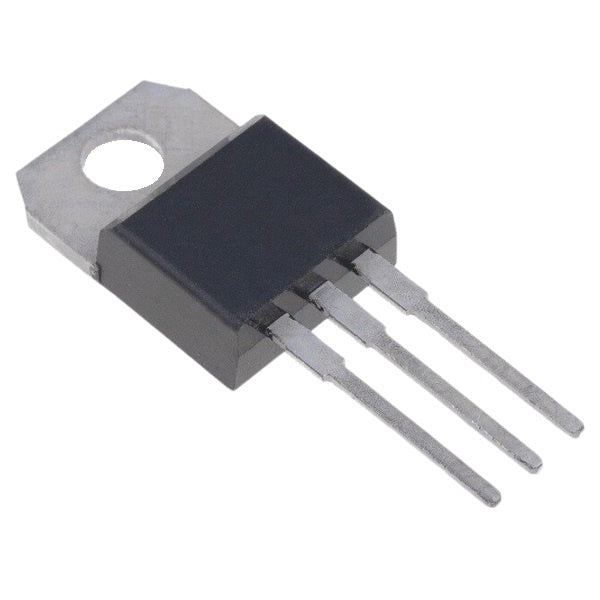

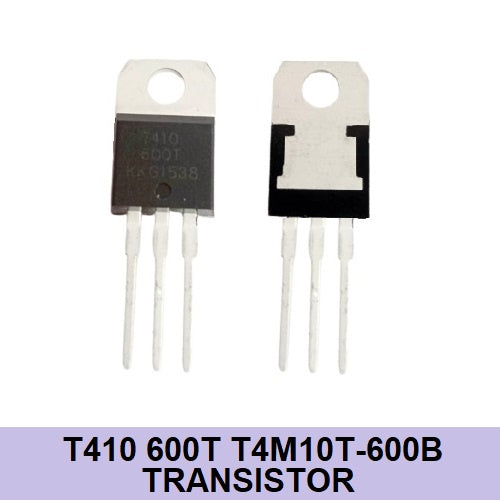

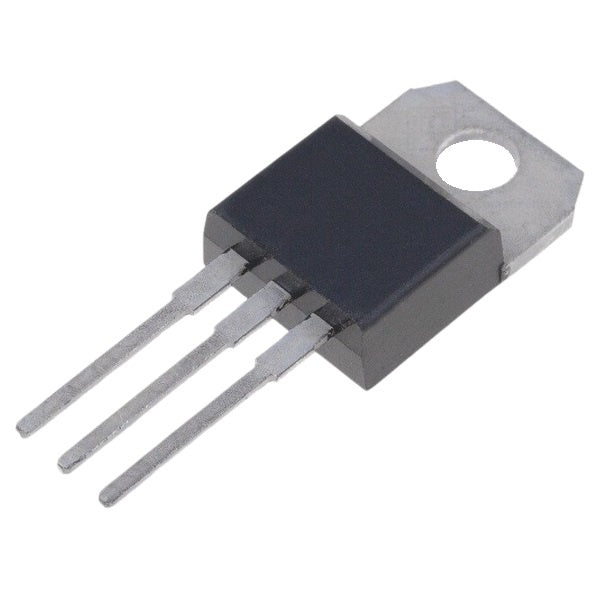

Transistor T410 600T T4M10T-600B 3-Pin Triac Thyristors For AC Inductive Loads Kitchen Equipment 4A

100% Brand New

Technical :

Current Rating     4 A

Element Configuration     Single

Hold Current     15 mA

Max Operating Temperature     125 °C

Max Repetitive Reverse Voltage (MRRV)     600 V

Max RMS Current     4 A

Min Operating Temperature     -40 °C

Peak Non-Repetitive Surge Current     30 A

RMS Current (Irms)     4 A

Voltage Rating (DC)     600 V

Dimensions

Height     9.15 mm

Length     10.4 mm

Width     4.6 mm

Product Overview :

The T410-600T is a 3-pin Triac is suitable for use on AC inductive loads, applications using universal motors, electro valves, kitchen aid equipment, power tools, dishwashers. The T series is the latest addition to Snubber less Triacs and provides enhanced commutation for a given current rating. Immunity is also improved up to 5 times for a given current rating.

10mA Sensitivity

Applications :

Motor Drive & Control, Consumer Electronics, Power Management
