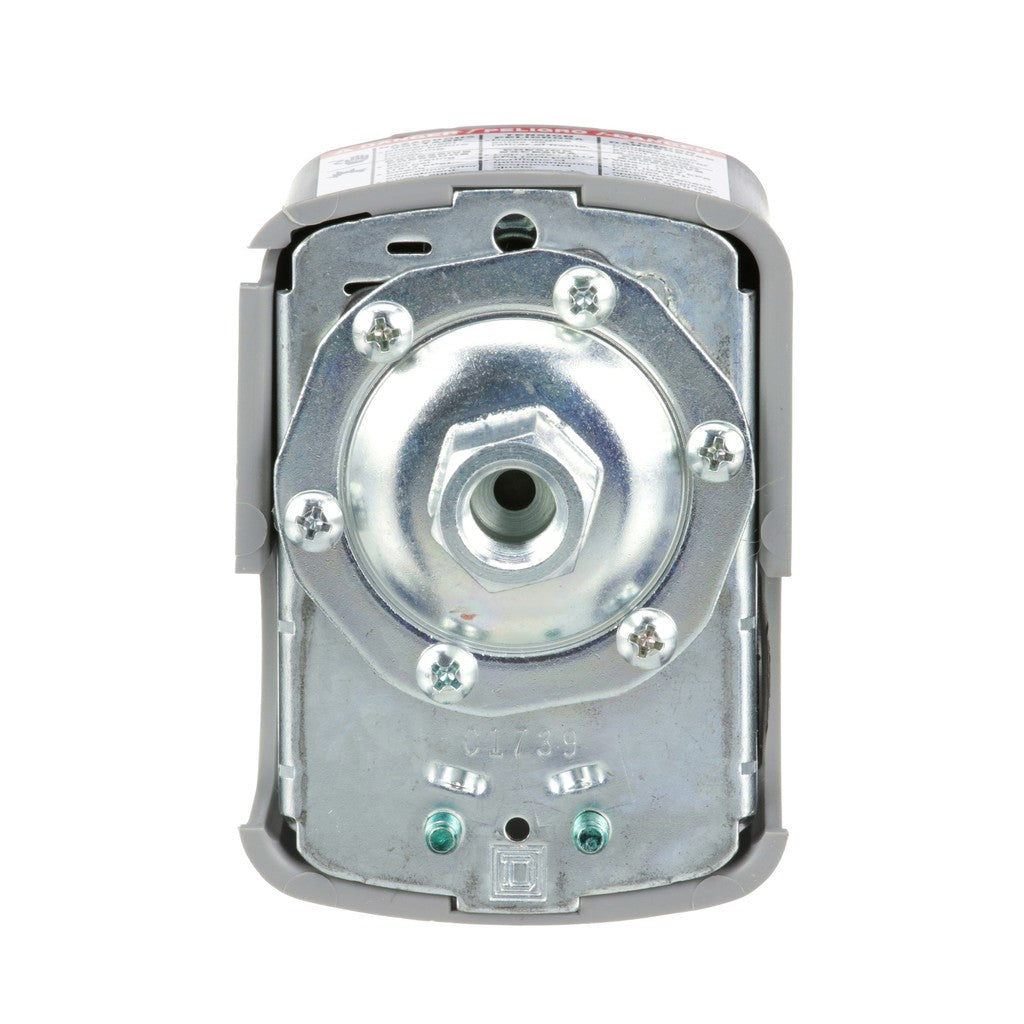

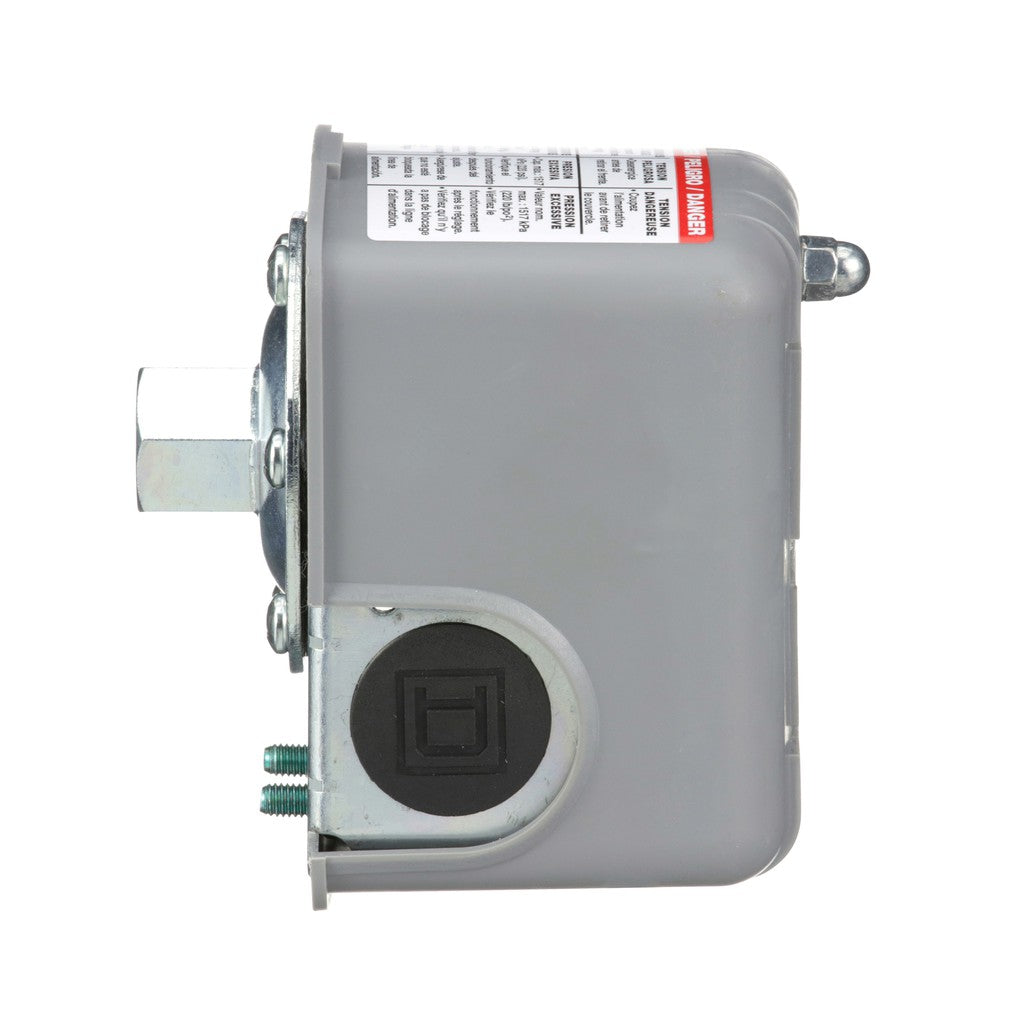

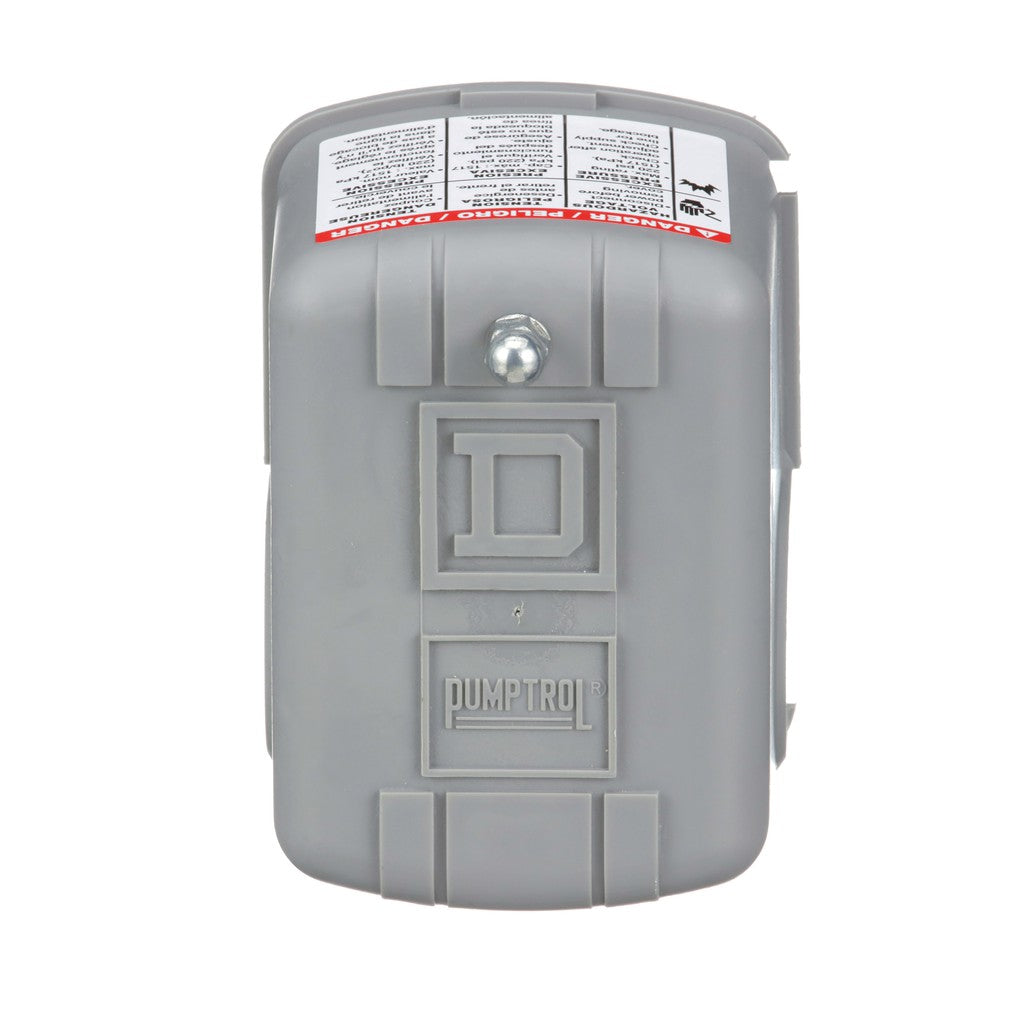

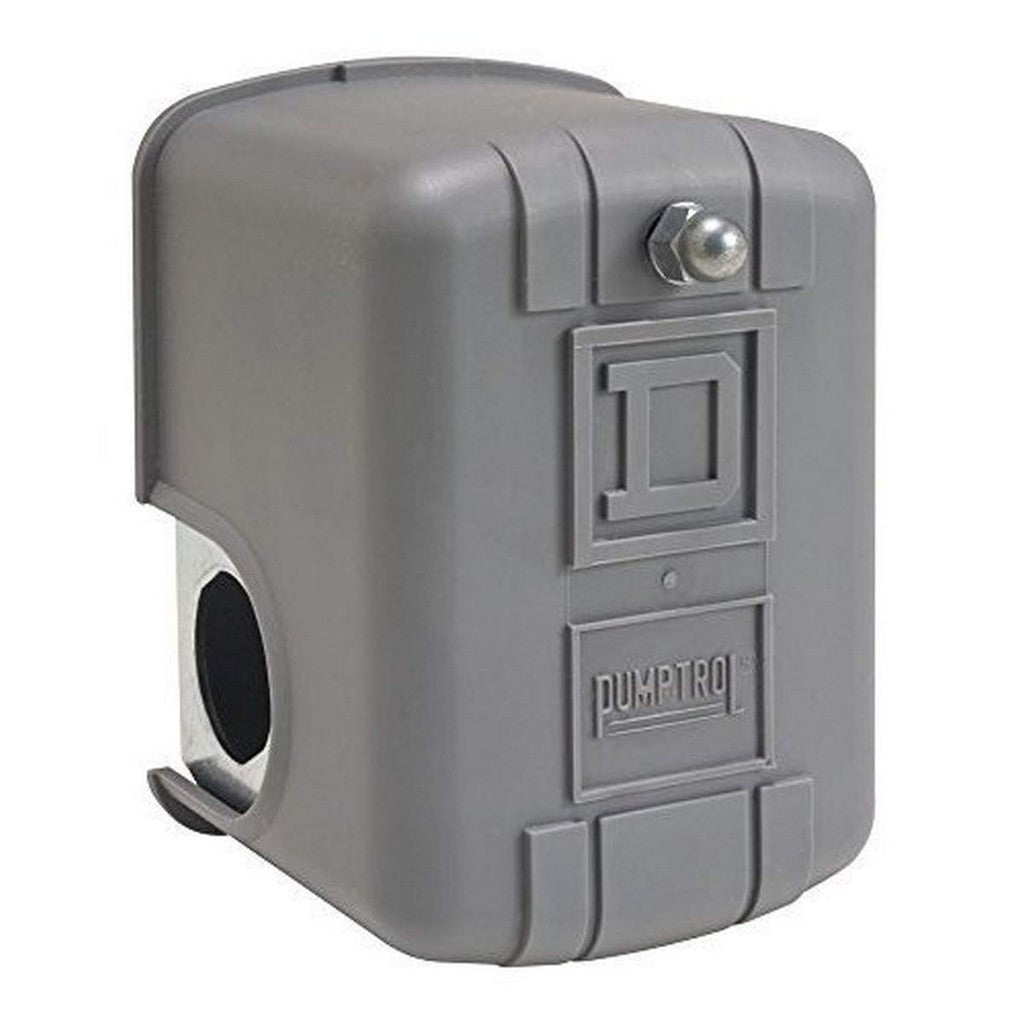

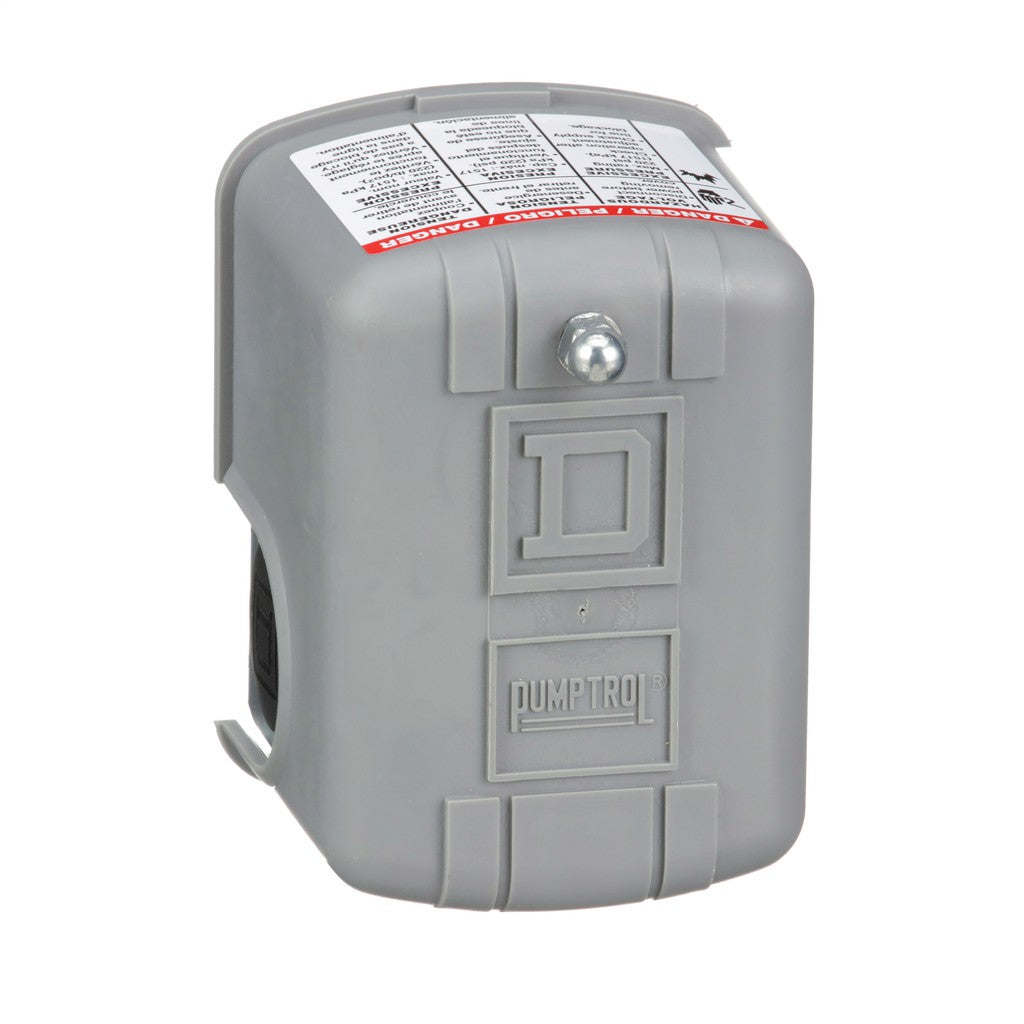

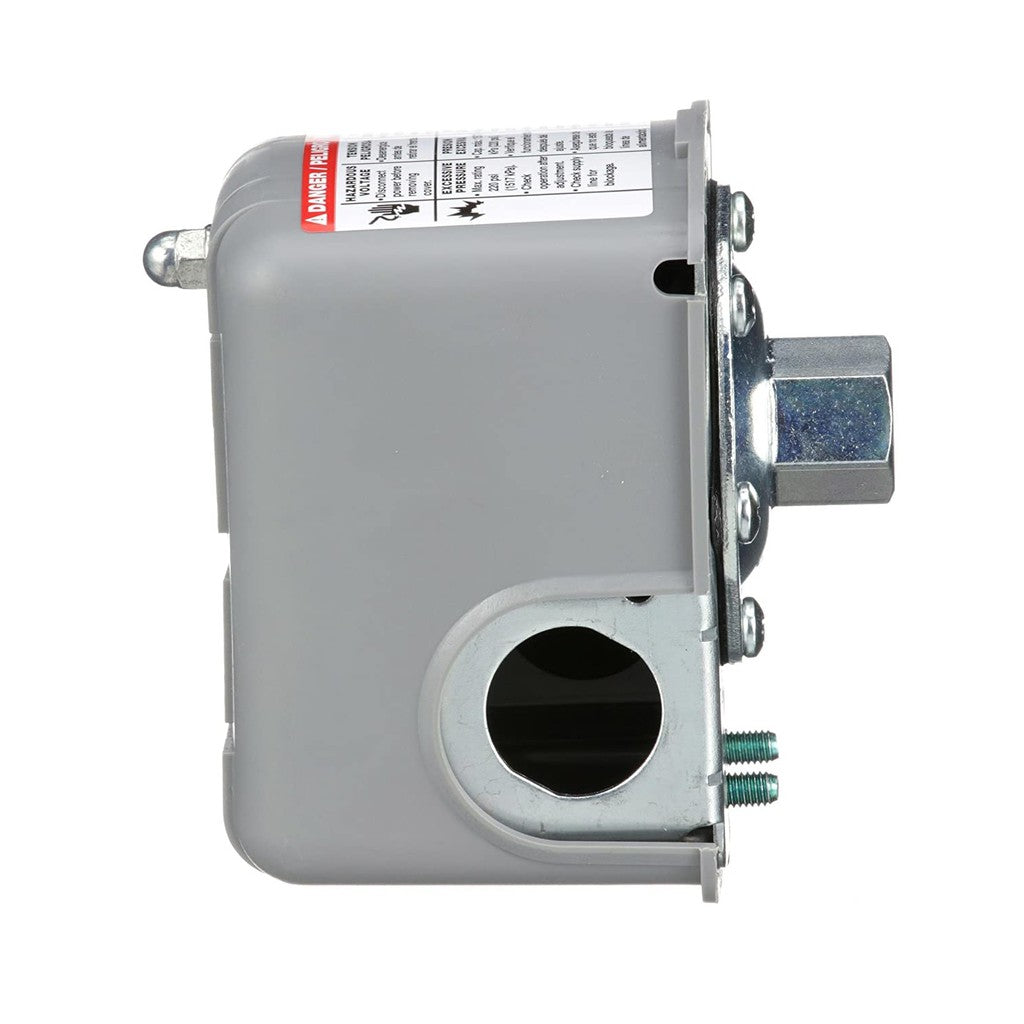

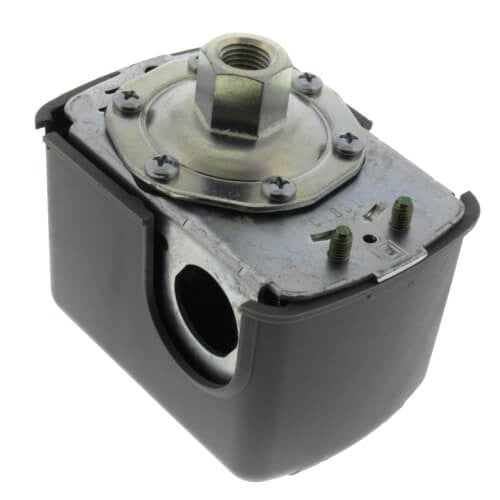

Square D 9013FSG2J20 Water Pump Pressure Switch 20 40 PSI
100% Original
100% Brand New
Range of product Square D Pumptrol
Pressure sensor name 9013FS
Pressure sensor size 65 psi (5...45 psi)
Value of setting 20...40 psi
Electrical circuit type Power circuit
Product specific application Control electrically driven water pumps
Pressure sensor type Electromechanical pressure switch
Controlled fluid Fresh water (-22...257 °F)
Adjustable range on rising pressure 20...65 psi
Approximate adjustable differential 15...30 psi
Destruction pressure 220 psi
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Adjustable differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Cable entry number 2 0.88 in cable entries with 0.84 in across flats UL 508
Electrical connection Screw-clamp terminals, clamping capacity: 5.261 mm² Screw-clamp terminals, clamping capacity: 10 AWG
Fluid connection type 0.25 inch NPSF internal conforming to UL 508
Short circuit protection 20 A by cartridge fuse, type gG
Materials in contact with fluid Nitrile (Buna-N) or equivalent rubber diaphragm Zinc plated steel or equivalent flange
Material Noryl thermoplastic resin or equivalent cover Polypropylene cover
Operating position Any position
Motor power kW 0.75 kW (1 hp) at 575 V AC, 3 phases 0.75 kW (1 hp) at 460 V AC, 3 phases 2.2 kW (3 hp) at 230 V AC, 3 phases 1.5 kW (2 hp) at 115 V AC, 3 phases 1.1 kW (1.5 hp) at 115 V AC, 1 phase 1.5 kW (2 hp) at 230 V AC, 1 phase
Electrical durability 100000 cycles at 10 cyc/mn
Mechanical durability 300000 cycles
Terminal block type 4 terminals
Operating rate 10 cyc/mn
[Ui] rated insulation voltage 575 V conforming to UL 508
Product weight 1 lb(US)
Repeat accuracy +/- 3 %
