Schneider Magnetic Contactor (9A to 38A) TeSys Deca Contactors Schneider Electric TeSys D Contactor
Schneider Electric TeSys Deca Contactor (9A to 38A) 3P (3 NO) AC-3/AC-3e 0 to 440V 220VAC 50/60Hz
100% Original
100% Brand New
TeSys D Contactor
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 220VAC 50/60Hz coil
New modern look & feel of all machines
Designed to meet the requirements of Electro domestic and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Environmental performance of the product
Please select the correct size:

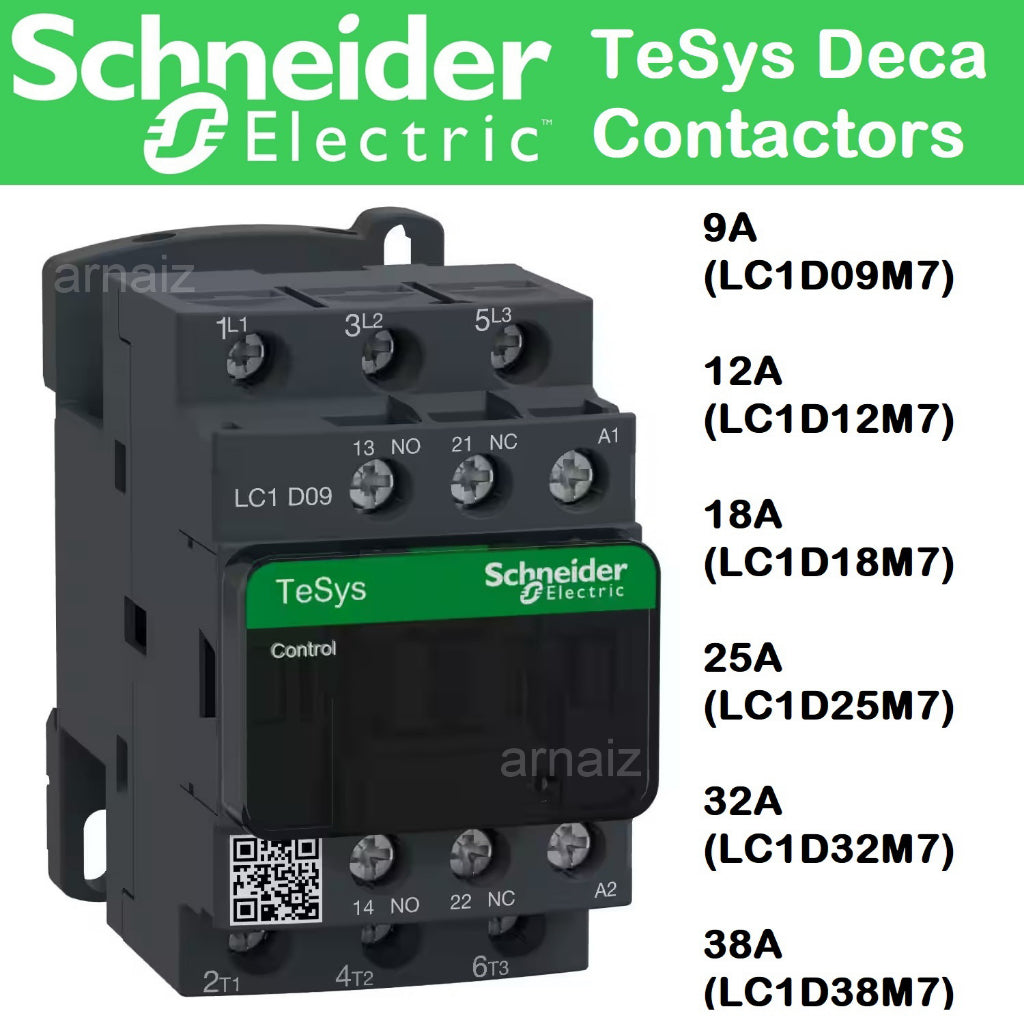

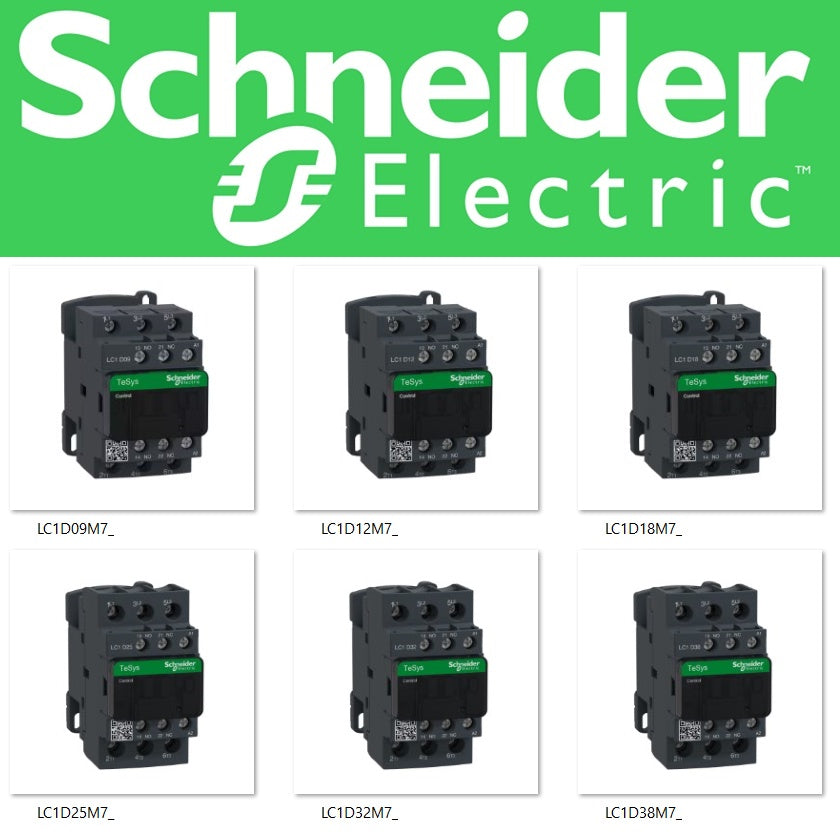

LC1D09M7 - 9A - for motor control applications up to 9A/690V AC-3/3e (4kW@400V)
LC1D12M7 - 12A - for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V)

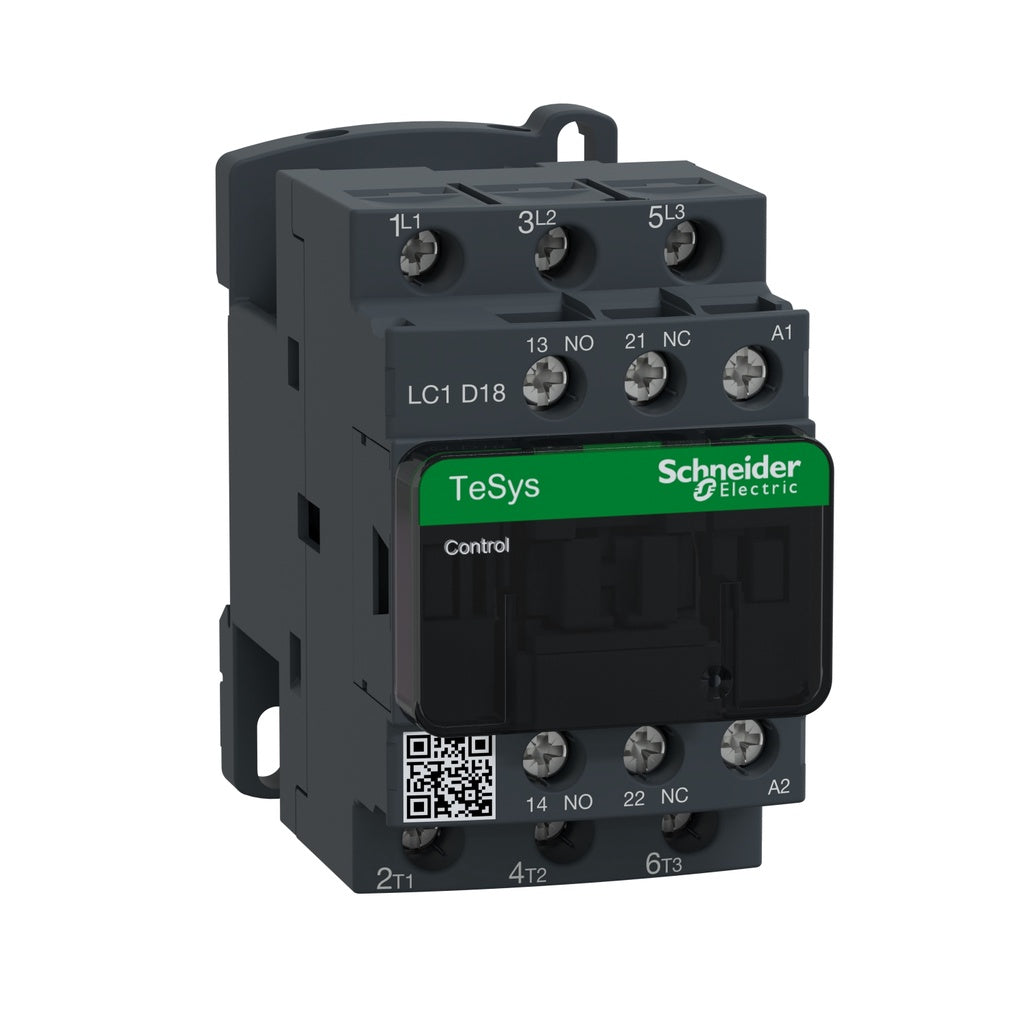

LC1D18M7 - 18A - for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V)
LC1D25M7 - 25A - for motor control applications up to 25A/690V AC-3/3e (11kW@400V)
LC1D32M7 - 32A - for motor control applications up to 32A/690V AC-3/3e (15kW@400V)

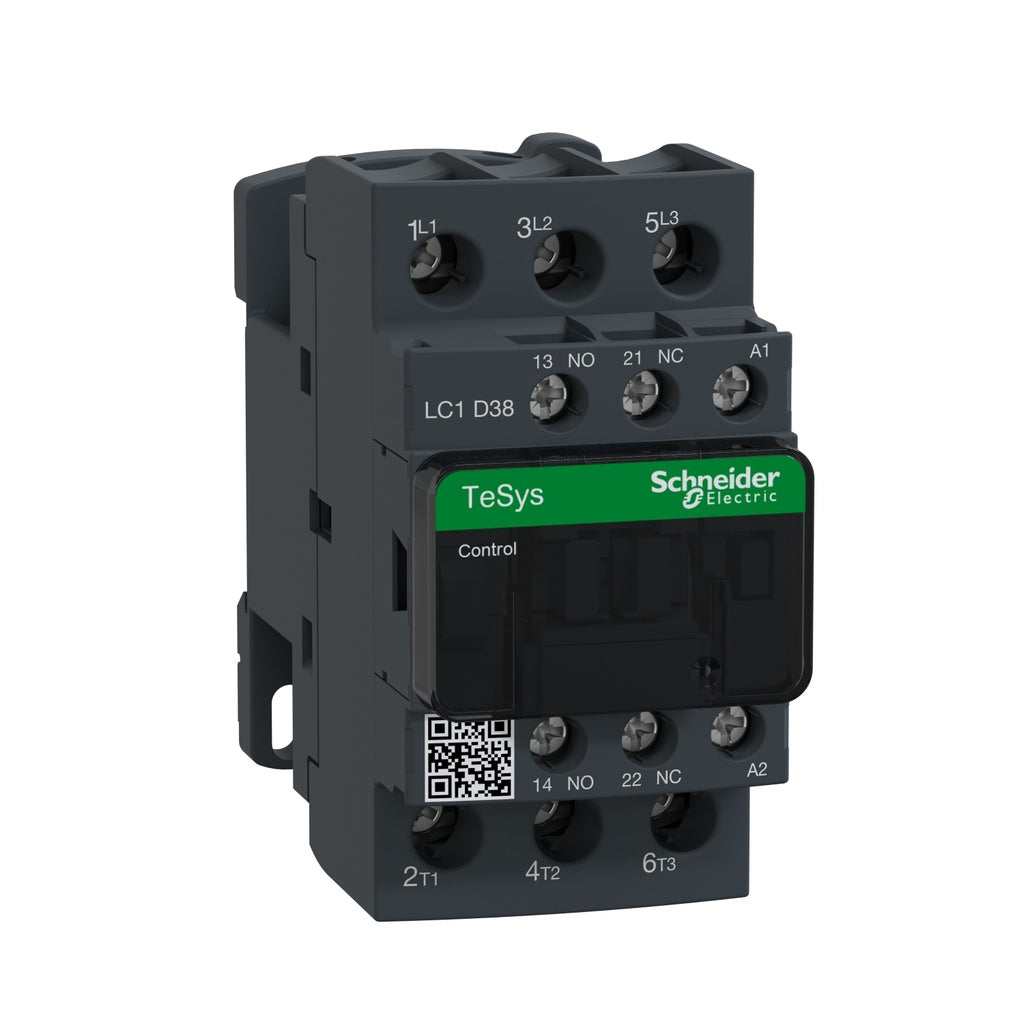

LC1D38M7 - 38A - for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V)
It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.
For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.
Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
