Schneider Magnetic Contactor (80A 95A) TeSys Deca Contactors Schneider Electric TeSys D Contactor
Schneider Electric TeSys Deca Contactor (80A to 95A) 3P (3 NO) AC-3/AC-3e 0 to 440V 220VAC 50/60Hz
100% Original
100% Brand New

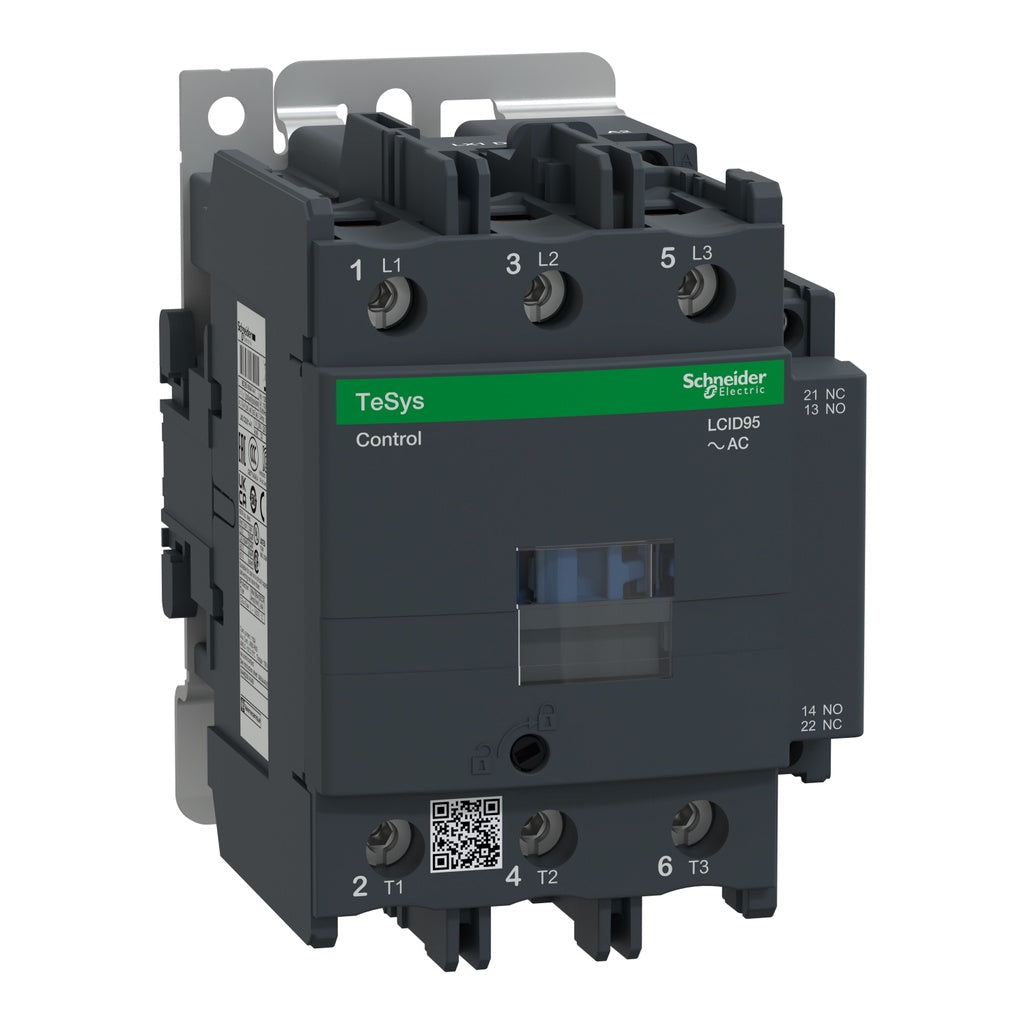

TeSys D Contactor
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 220VAC 50/60Hz coil
New modern look & feel of all machines
Designed to meet the requirements of Electro domestic and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Environmental performance of the product
Please select the correct size:

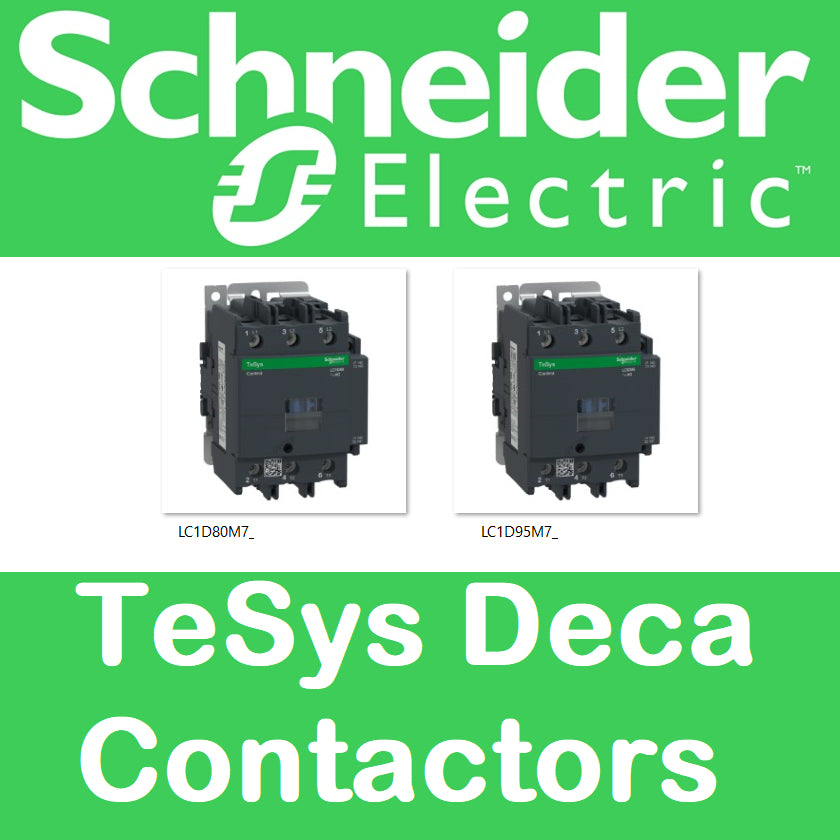

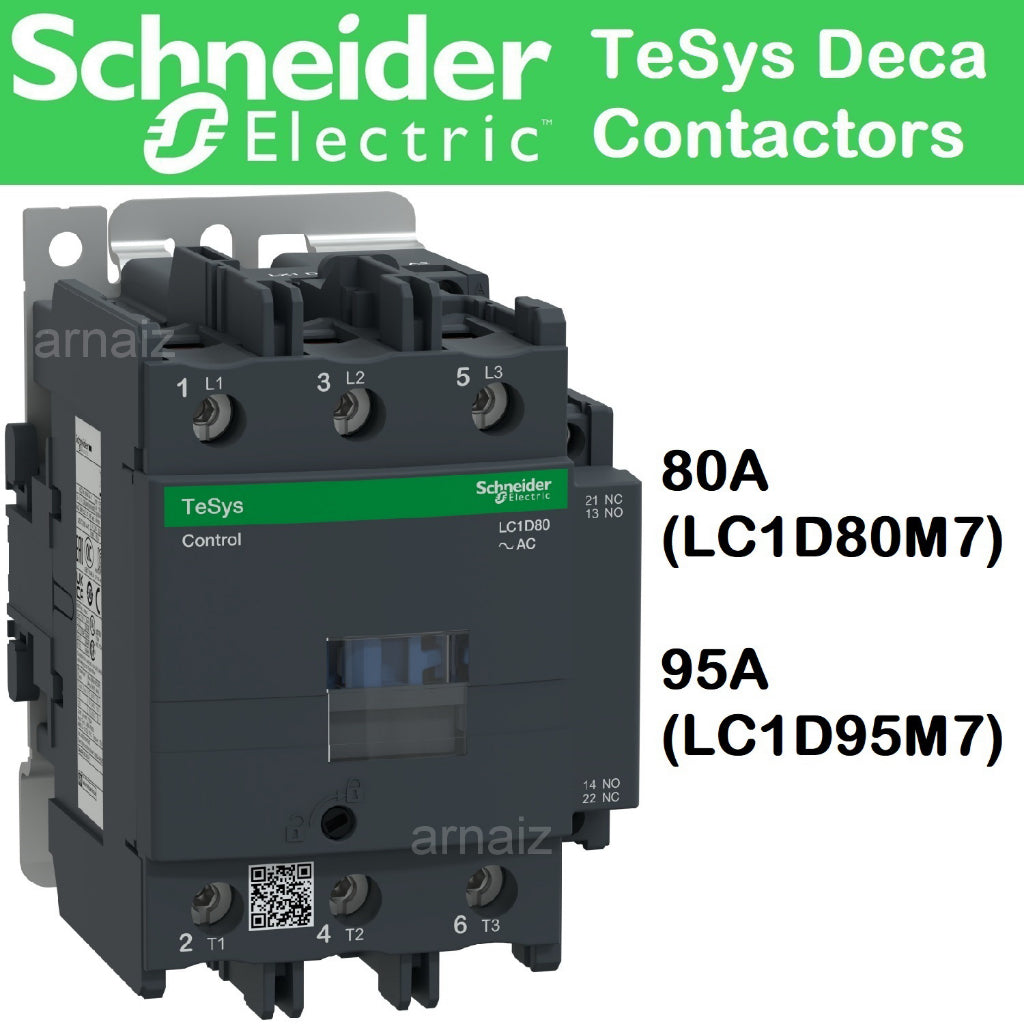

LC1D80M7 - 80A - for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V)
LC1D95M7 - 95A - for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V)
It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals.
For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.
Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
