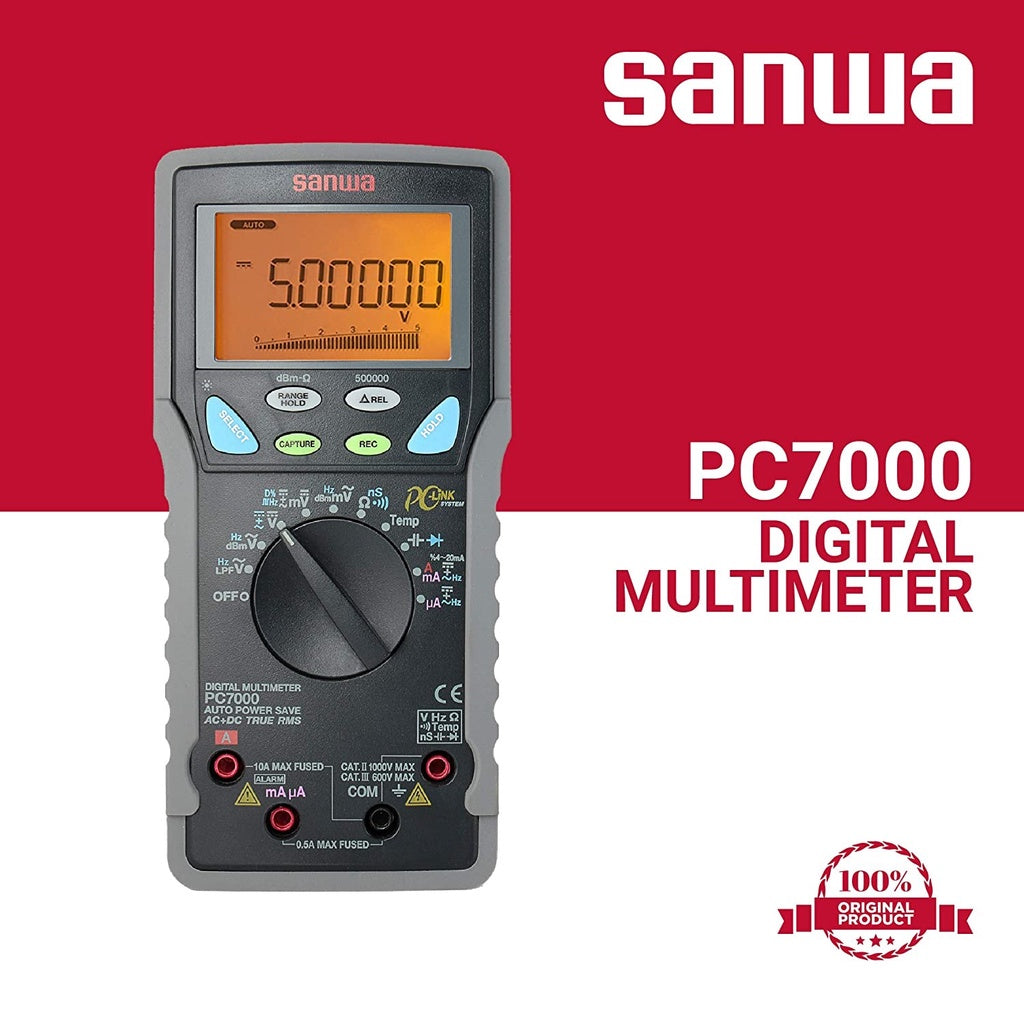

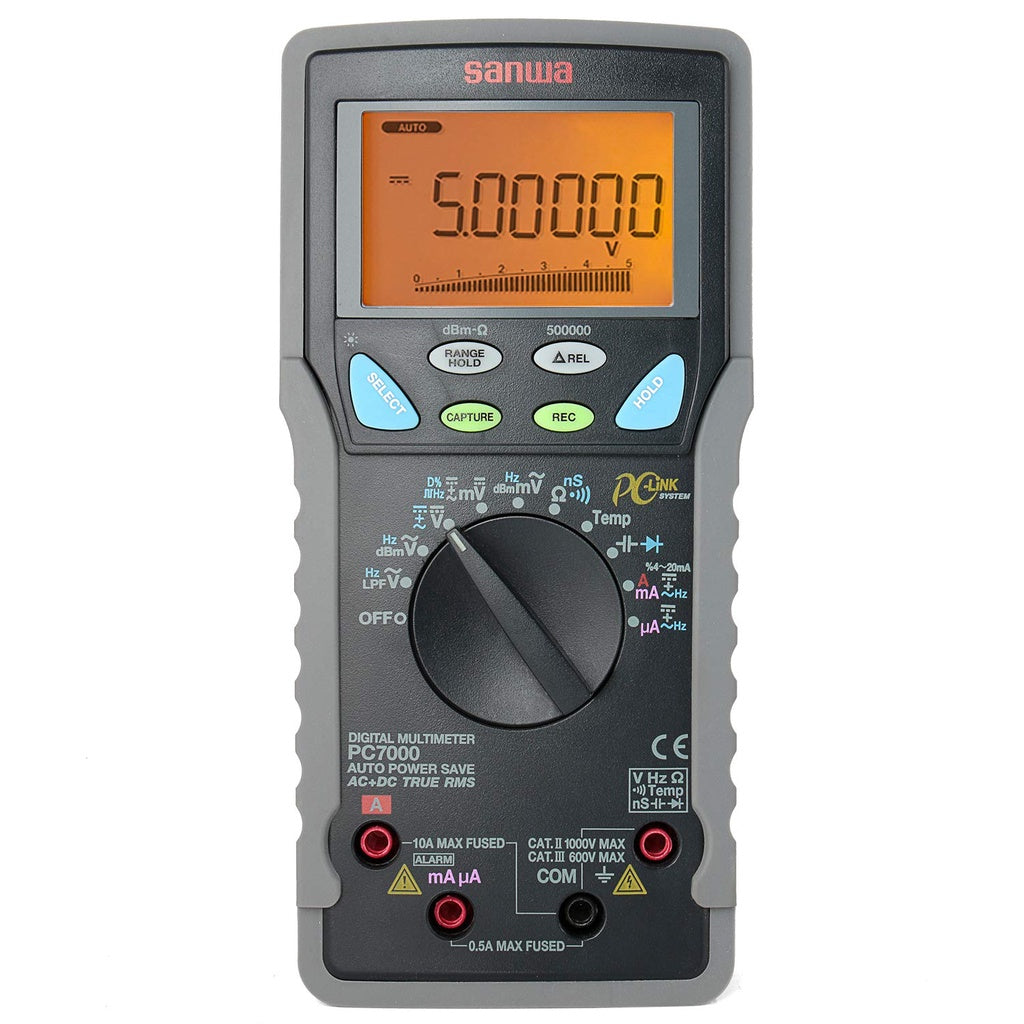

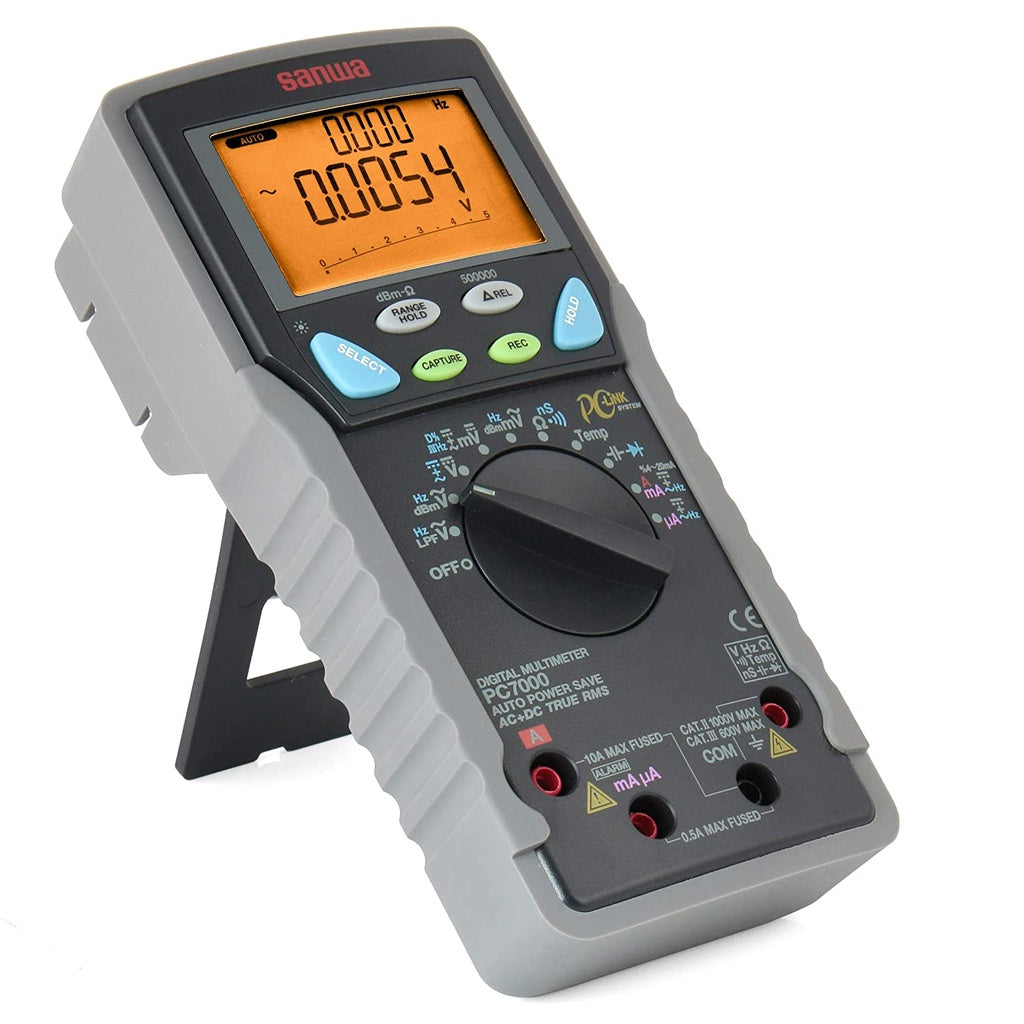

SANWA PC7000 Digital Multimeter High Accuracy High resolution PC Link, Dual Display, Temperature Test
100% Original
100% Brand New
50000 & 500000 counts
(Selectable 5-4 / 5 digits 500000 counts for DCV)
Dual display shows voltage/current and its frequency, and AC components and DC components of voltage/current
Low-pass filter for variable frequency drive(VFD) circuit
Capture (peak hold), Interval: 0.8ms
MAX/MIN/AVG recording mode
K type thermocouple temperature measurement -50℃ ～ 1000℃
Conductance measurement
Auto power save (17min.)(cancelable)
About this item :
AC True RMS 4-4 / 5digits 50000 count Dual display with backlight and bar graph (Selectable 5-4 / 5 digits 500000 count for DCV)
Dual Display shows voltage/current and its frequency, and AC components and DC components of voltage/current
ow-pass filter for variable frequency drive(VFD) circuit and Current (mA / μA) %4-20mA measurement
Capture (peak hold) 0.8ms in duration, MAX, MIN, AVG recording mode, Logic frequency measurement, duty cycle measurement, dB measurement, Relative value and Conductance measurement

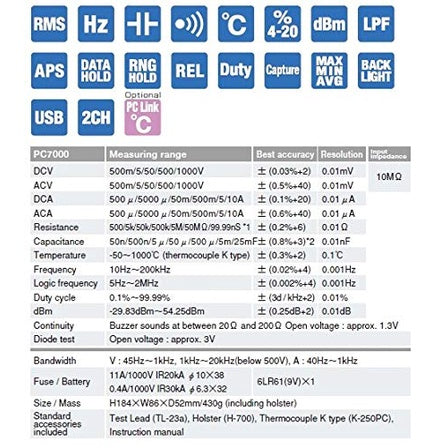

1000VAC/DC, 10A AC/DC, Resistance, Capacitance, Temperature, Frequency, Continuity and Diode test
