Sanwa DM1009S Analog Insulation Resistance Tester 1000V 2000 Megaohms AC 600V DC 60V
100% Original
100% Brand New

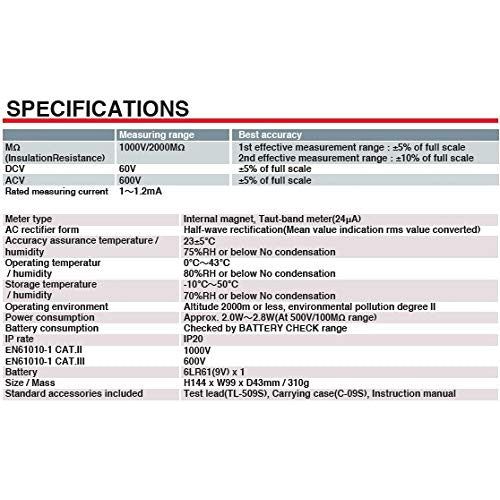

- DCV: 60V ±5%
- ACV: 600V ±5%
- Measuring range: 1000V/2000MΩ ±5%
- Power consumption: 2.0W～2.8W
-Battery consumption : Checked by BATTERY CHECK range
- Rated measuring current: 1～1.2mA
-IP rate : IP20
-Temperature/humidity : --10℃-50℃ , 80%RH
-Auto Power off
-Pin: 6LR61(9V)x1
- H144 x W99 x D43mm /310g )
-Standard accessories included : Test lead, Carrying case, Instruction manual
Test voltage DC1000V/2000Mohms (MADE IN JAPAN)
One-shot or continuous measurement push switch
Supplied with a convenient and high quality carrying case with shoulder strap
ACV measurement range (600V), DCV measurement range (DC60V)
Auto discharge function, Inner battery check range
