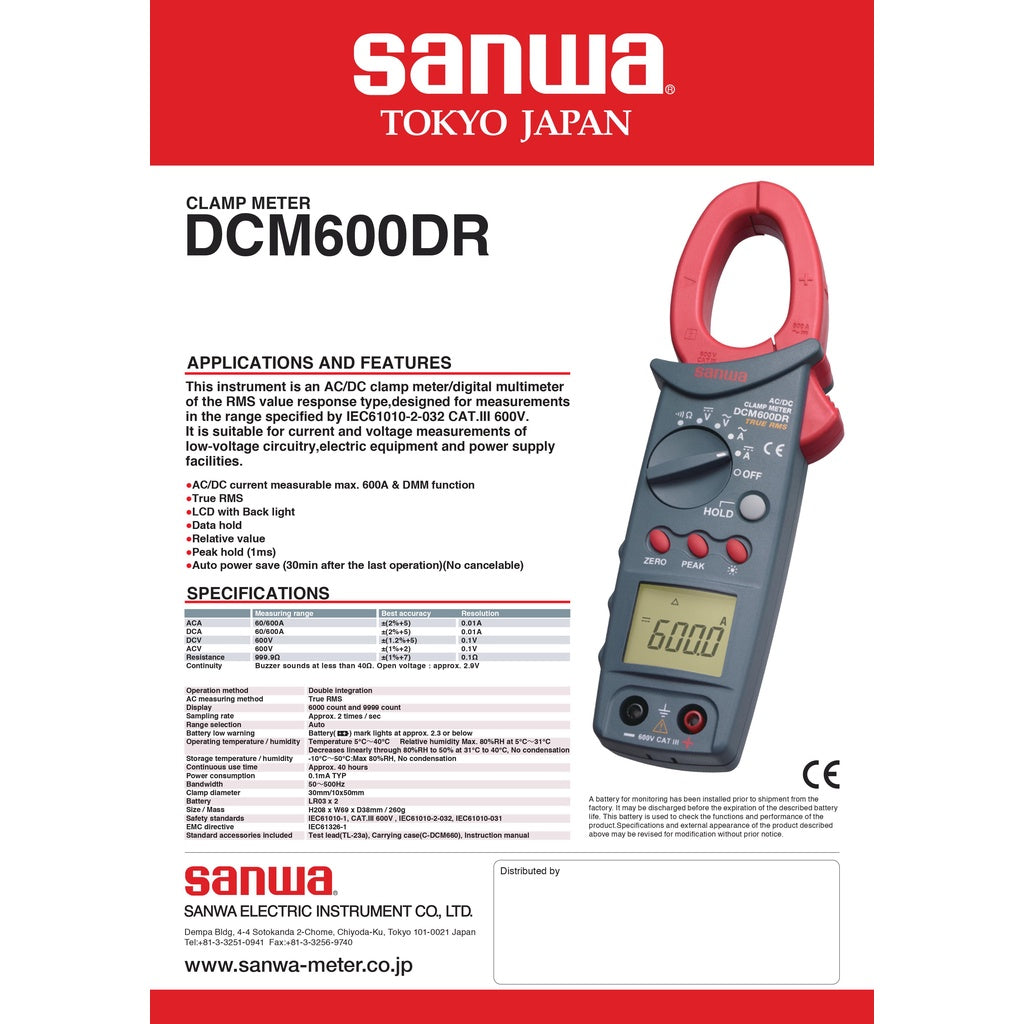

Sanwa DCM600DR Digital Clamp Meter AC/DC 600A
100% Original
100% Brand New
Maximum Current : 600 Ampere
Display : 6000 Counts and 9999 Counts
Clamp Diameter : 30mm
AC Current : 60/600A
AC Voltage : 0.1V to 600V
DC Voltage : 0.1V to 600V
DC Current : 0.01A to 600A
Resistance : 0.1Ω to 999.9Ω
Continuity Buzzer : Yes
Backlit Display : Yes
Data Hold : Yes
Peak Hold : Yes
Range Selection : Auto
Dimensions : 208mm (L) x 69mm (W) x 38mm (D)
Weight : 260g
FEATURES:
IEC61010-1 CAT III 600V, IEC61010-2-032, IEC61010-031
LCD Backlit display with maximum reading of 6000.
AC voltage range: 0 to 600V.
AC current range: 0 to 600A.
DC voltage range: 0 to 600V.
DC current range: 0 to 600A
Data Hold, Auto Power Save
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity.
Peak Hold (1 ms)
True RMS
With Case
