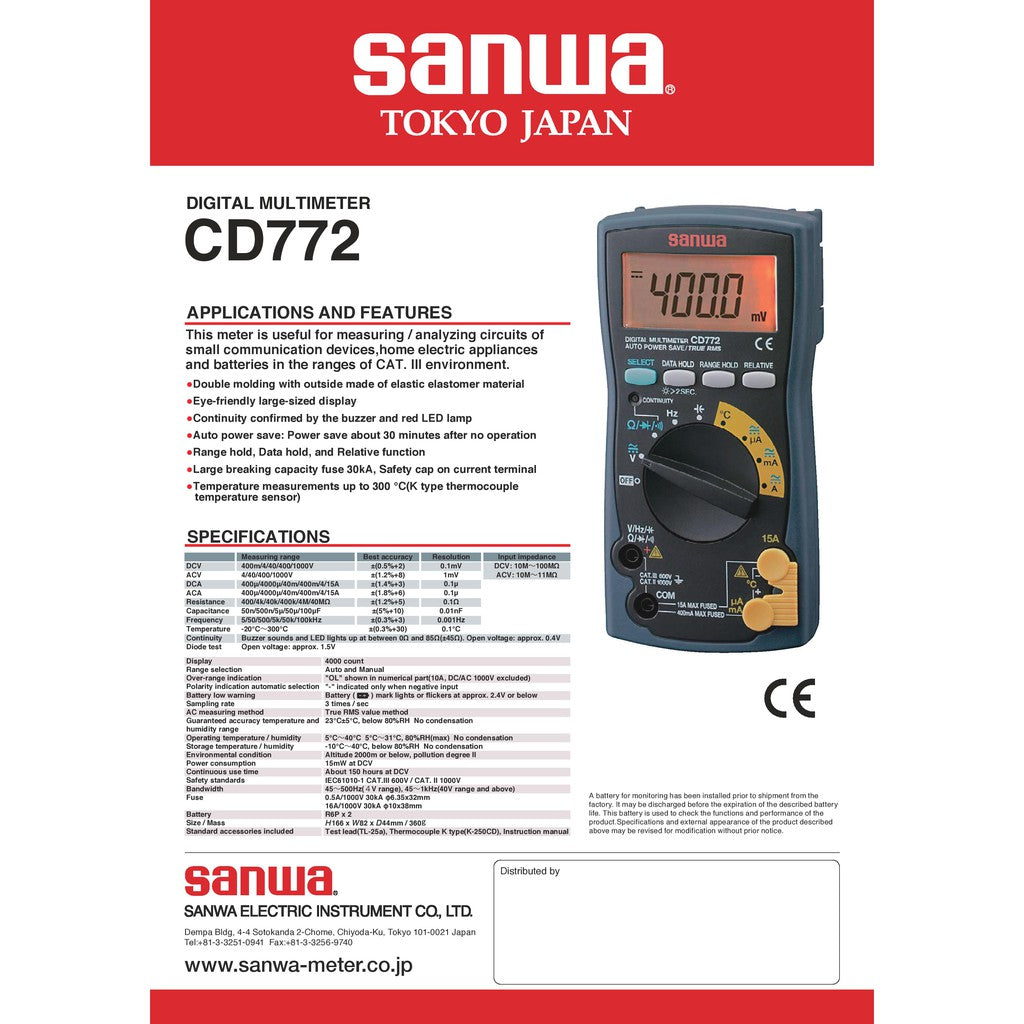

Sanwa CD772 Digital Multimeter Backlight Buzzer Temperature measurement Multitester
100% ORIGINAL
100% BRAND NEW
Sanwa CD772
Digital Multimeter
Backlight
Buzzer
Temperature measurement
Multitester
This meter is useful for measuring / analyzing circuits of small communication devices,home electric appliances and batteries in the ranges of CAT. III environment
Double molding with outside made of elastic elastomer material
Eye-friendly large-sized display
Continuity confirmed by the buzzer and red LED lamp
Auto power save: Power save about 30 minutes after no operation
Range hold, Data hold, and Relative function
Large breaking capacity fuse 30kA, Safety cap on current terminal
Temperature measurements up to 300 ℃(K type thermocouple temperature sensor)
3-3/4 digits 4000 count
AC True RMS
Easy to read large LCD with Backlight
Large breaking capacity fuse 30kA
K-type thermocouple temperature measurement -20℃〜300℃
Thermo plastic elastomer, high resistance against drop shock
Safety cap on current terminal
Data hold, Range hold, Relative function
Continuity check, Diode test
Auto power off function (30min.)
Maximum 20A can be measured if the measurement time is less than 10 seconds. (Take 10 minutes or longer intervals between measurements)
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 45〜500Hz (4V range), 45〜1KHz (40V range and above)
