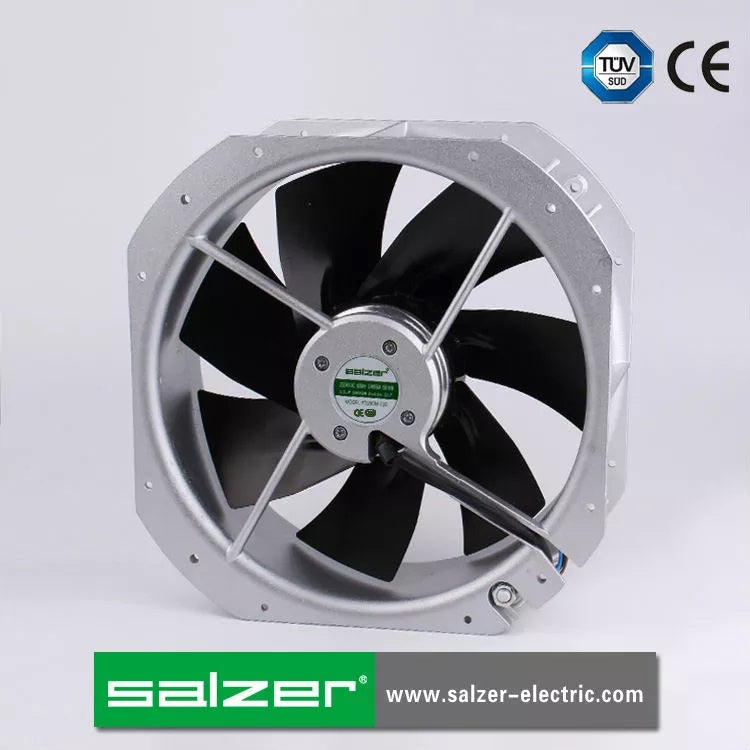

Salzer PD280M-220 Blower Fan Metal Frame AC Axial Fan 280 mm 11.02 inches

Salzer PD280M-220 Blower Fan Metal Frame AC Axial Fan 280 mm 11.02 inches

100% Original

100% Brand New

280X280X80mm

11.02 x 11.02 x 3.14 inches

220V 0.52A 115W

General Information

1) Motor: capacitor-run external rotor induction motor

2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)

3) Insulation resistance: 100MΩ or over with a DC 500V Megger

4) Insulation grade: F; Protection grade: IP54

5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz

6) Allowable ambient temperature range: -20-+90°C(operating);-40-+90°C(storage)

Material

Casing: The casing of the AC axial fan is made of die-cast aluminium

Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)

Bearing: Ball bearing
