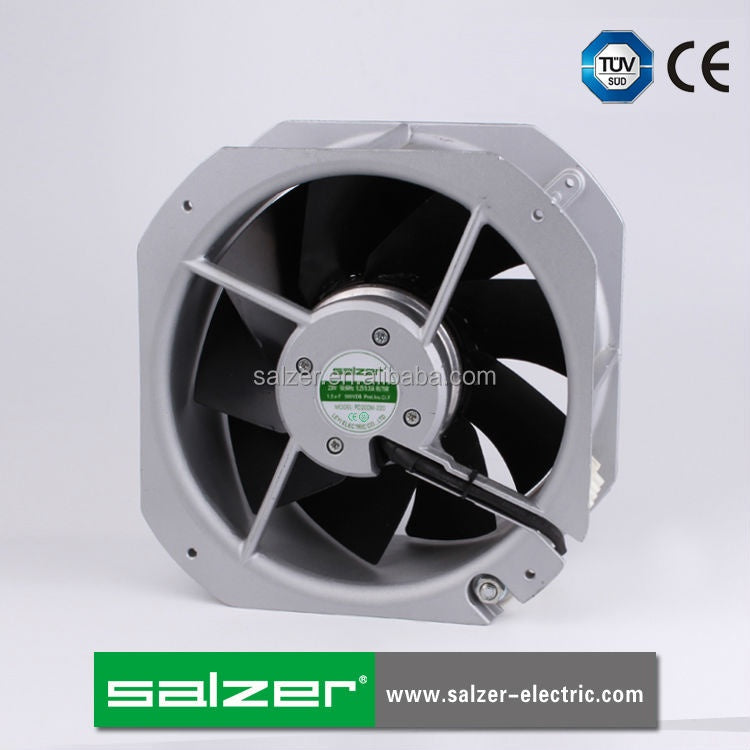

Salzer PD225M-220 Blower Fan 225 x 225 x 80 mm AC Axial Fan with Metal Impeller 8.86 x 8.86 x 3.15 inches
100% ORIGINAL
100% BRAND NEW
Salzer PD200M-220
Blower Fan
225 x 225 x 80 mm
8.86 x 8.86 x 3.15 inches
220V 0.31A 72W
AC Axial Fan with Metal Impeller
General Information1) Motor: capacitor-run external rotor induction motor2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)3) Insulation resistance: 100MΩ or over with a DC 500V Megger4) Insulation grade: B; protection grade: IP545) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz6) Allowable ambient temperature range: -20-+90°C(operating);-40- +90°C(storage)Material casing: The casing of the AC axial fan is made of die-cast aluminum Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)Bearing: Ball bearing
