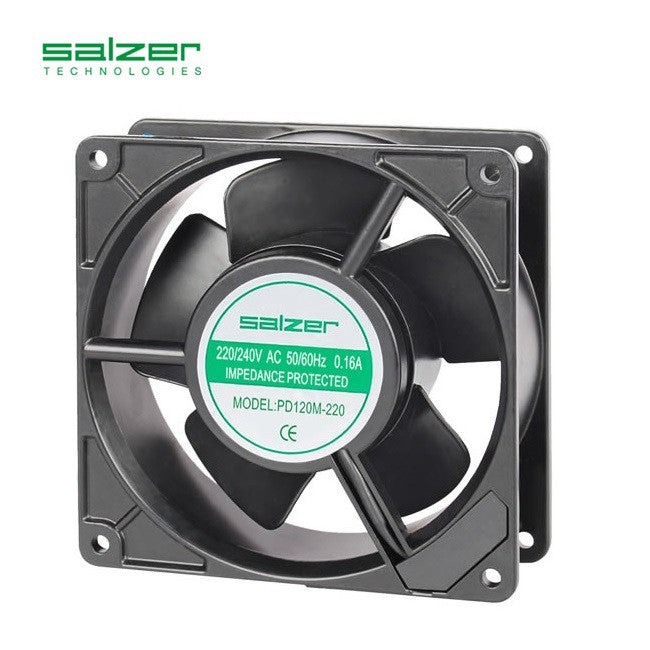

Salzer PD120M-220 Blower Fan 120 x 120 x 38 mm AC Axial Fan with Metal Impeller 4.72 x 4.72 x 1.50 inches Ventilation Exhaust
100% ORIGINAL
100% BRAND NEW
Salzer PD120M-220
Blower Fan
120 x 120 x 38 mm
4.72 x 4.72 x 1.50 inches
AC Axial Fan with Metal Impeller
General Specifications1) Motor structure: shaded pole motor inducted by running eternal rotor, with design of ultra temperature protection.2) Operation System: Double high precise ball bearing.3) Insulation resistance: Over 100 M Ω tested by a resistor at DC 500V4) Insulating grade: F; protecting grade: IP545) Dielectric withstand voltage: AC 1800V, at 0.5mA, 50/60Hz6) Allowable ambient temperature range: -25℃ - +75℃ (ball bearing) under un-concretionary state.MaterialCasing: Die-casting aluminium Alloy. With anti-corrosion treatment.Impeller: Stricked out from metal armor plate, impellers are welded to motor rotor directly. Surface is finished to be anti-corrosion by cathode electrophoresis.Bearig: Ball bearing
