Philflex RG-6 Coaxial Cable – Professional Grade (300m Full Roll)
Experience uninterrupted signal clarity with the Philflex PXRG6. Engineered for high-performance data and video transmission, this coaxial cable is the top choice for professional installers and DIY home setups alike. Whether you are wiring a massive CCTV security network or a high-definition home theater, Philflex delivers the "Wise Essentials" for your connectivity needs.

Primary Applications
CCTV Security Systems: Provides stable, interference-free video feeds for long-distance camera runs.
Satellite & Digital TV: Optimized for high-frequency signals, ensuring crisp HDTV and 4K resolution.
High-Speed Internet: Compatible with cable modems and broadband setups.
Signal Distribution: Ideal for residential buildings, offices, and commercial spaces.

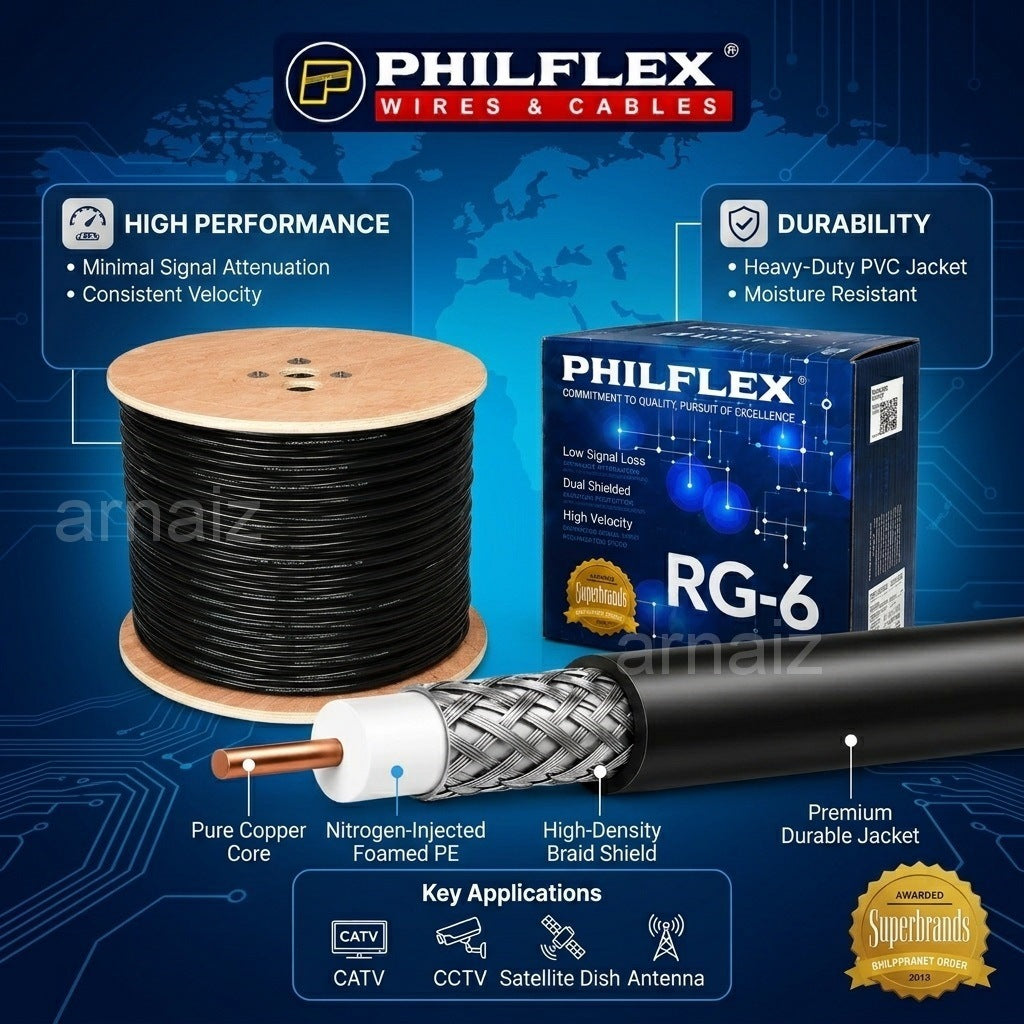

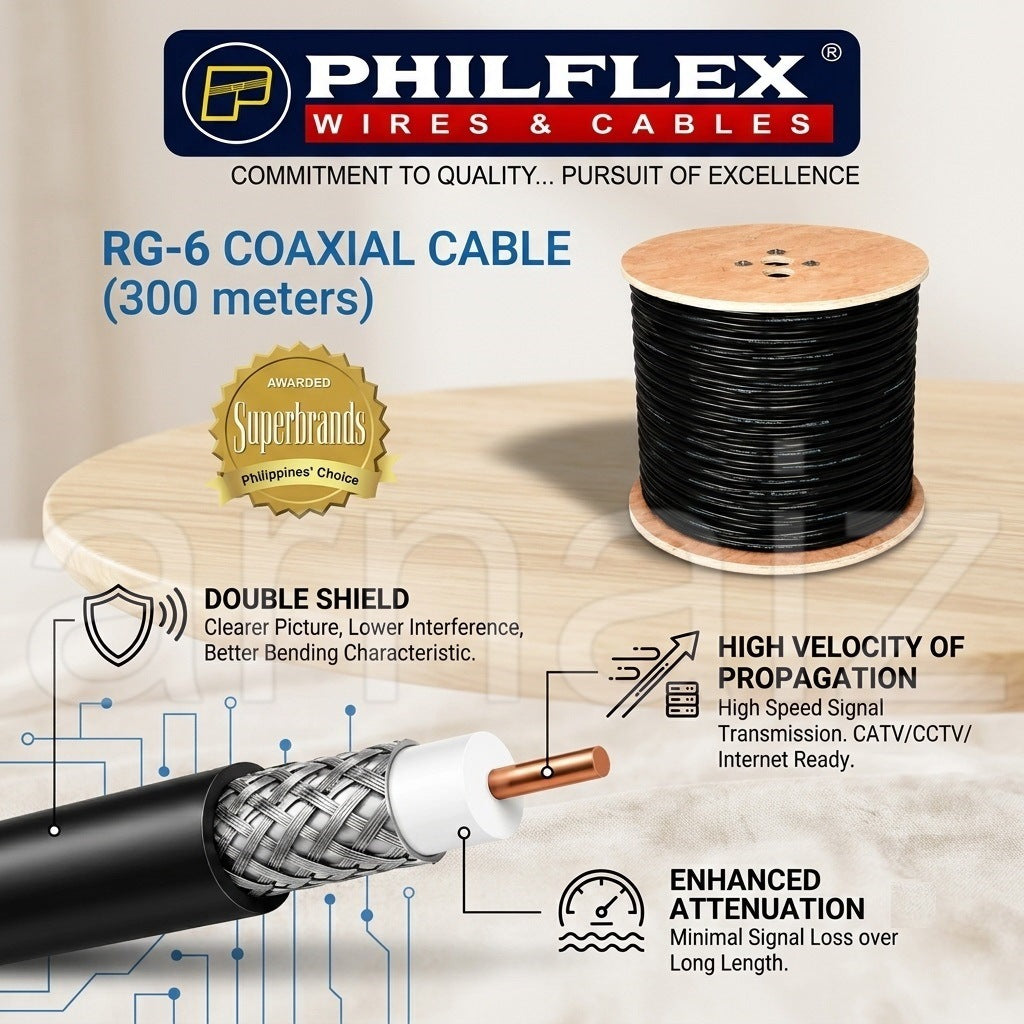

Key Performance Features
High Velocity of Propagation: Ensures faster signal travel with minimal delay or "lag" in video feeds.
Superior Shielding: Designed to block out electromagnetic interference (EMI) and radio frequency interference (RFI) for a "noise-free" experience.
Durable Outer Jacket: Flexible yet tough, the outer insulation is built to withstand pulling through conduits and long-term indoor/outdoor exposure.
Low Signal Loss: Maintains high signal strength even over the full 300-meter span.

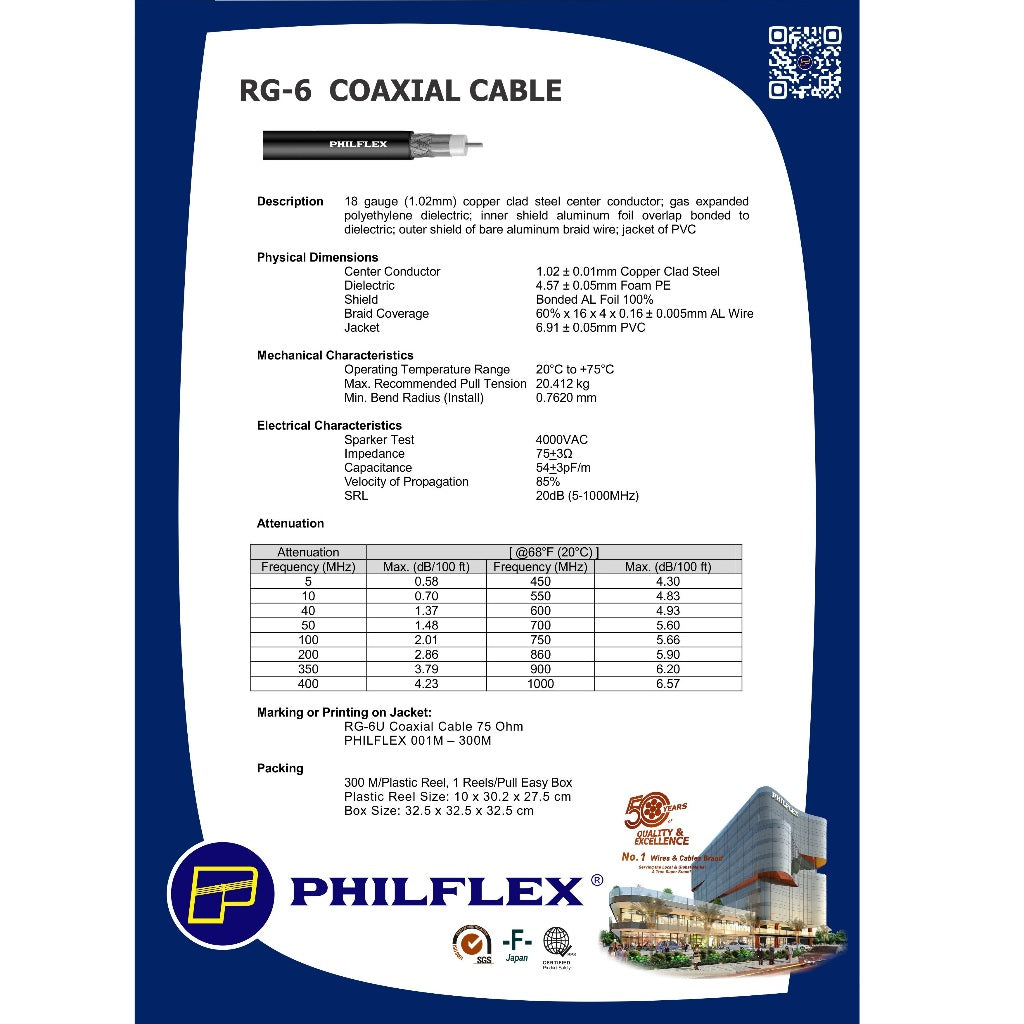

Specifications at a Glance
Feature Technical Detail
Brand Philflex (PXRG6)
Type RG-6 Coaxial
Length 300 Meters (Full Wooden Spool)
Impedance 75 Ohms (Standard for Video/Data)
Core Material High-Conductivity Copper-Clad Steel
Application CCTV, HDTV, Satellite, Modem

Physical Dimensions
18 gauge (1.02mm) copper clas steel center conductor; gas expanded polythene dielectric; inner shield aluminum foil overlap bonded to dielectric; outer shield of bare aluminum braid wire; jacket of PVC
Center Conductor: 1.02 ± 0.01mm Copper Clad Steel

Dielectric: 4.57 ± 0.05mm Foam PE
Shield: Bonded AL Foil 100%
Braid Coverage: 60% x 16 x 0.16 ± 0.005mm AL Wire
Jacket 6.91 ± 0.05 mm PVC

Mechanical Characteristics
Operating Temperature Range: 20C to + 75C
Max. Recommended Pull Tension: 20.412 kg
Min. Bend Radius (Install): 0.7620 mm

Electrical Characteristics
Sparker Test: 4000VAC
Impedance: 75±3Ω
Capacitance: 54±3pF/m
Velocity of Propagation: 85%
SRL: 20dB (5-1000MHz)
