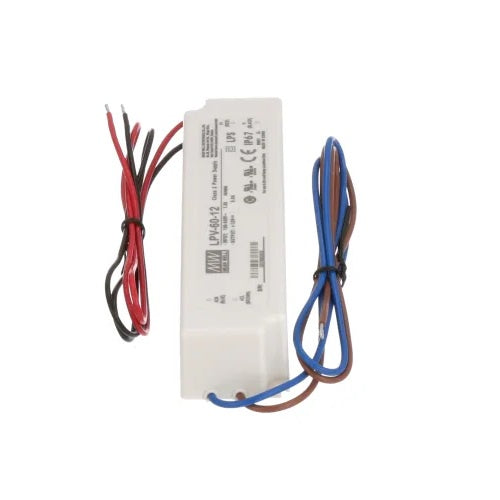

Meanwell LPV-60-12 Led Driver 60W Single Output Switching Power Supply
100% Original
100% Brand New
Model: Meanwell LPV-60-12
Dimensions : 6.39 L x 1.67 W x 1.25 H in
Input Voltage : 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC
Input Voltage Range : 100-264 VAC
Mounting Type : Panel Mount
Number of Outputs: 1 Output
Operation : Switching
Output Current : 5 A
Output Power : 60 W
Output Voltage : 12 VDC
Primary Type : AC-DC
Series : LPV-60 Series
Special Features :100% Full Load Burn-In Test ; Short Circuit Protection ; Overload Protection ; Over Voltage Protection
Type : LED Driver
Features:
Constant Current Mode Power Supply
Universal AC Input/Full Range
Fully Encapsulated with IP67 Level
Withstand 300 VAC Surge Input for 5 Second
Protections: Short Circuit, Over Current, Over Voltage
Fully Isolated Plastic Case
Cooling by Free Air Convection
Small and Compact Size
UL1310 Class 2 Power Unit
Pass LPS
100% Full Load Burn-In Test
Low Cost, High Reliability
Suitable for LED Lighting and Moving Sign Applications
