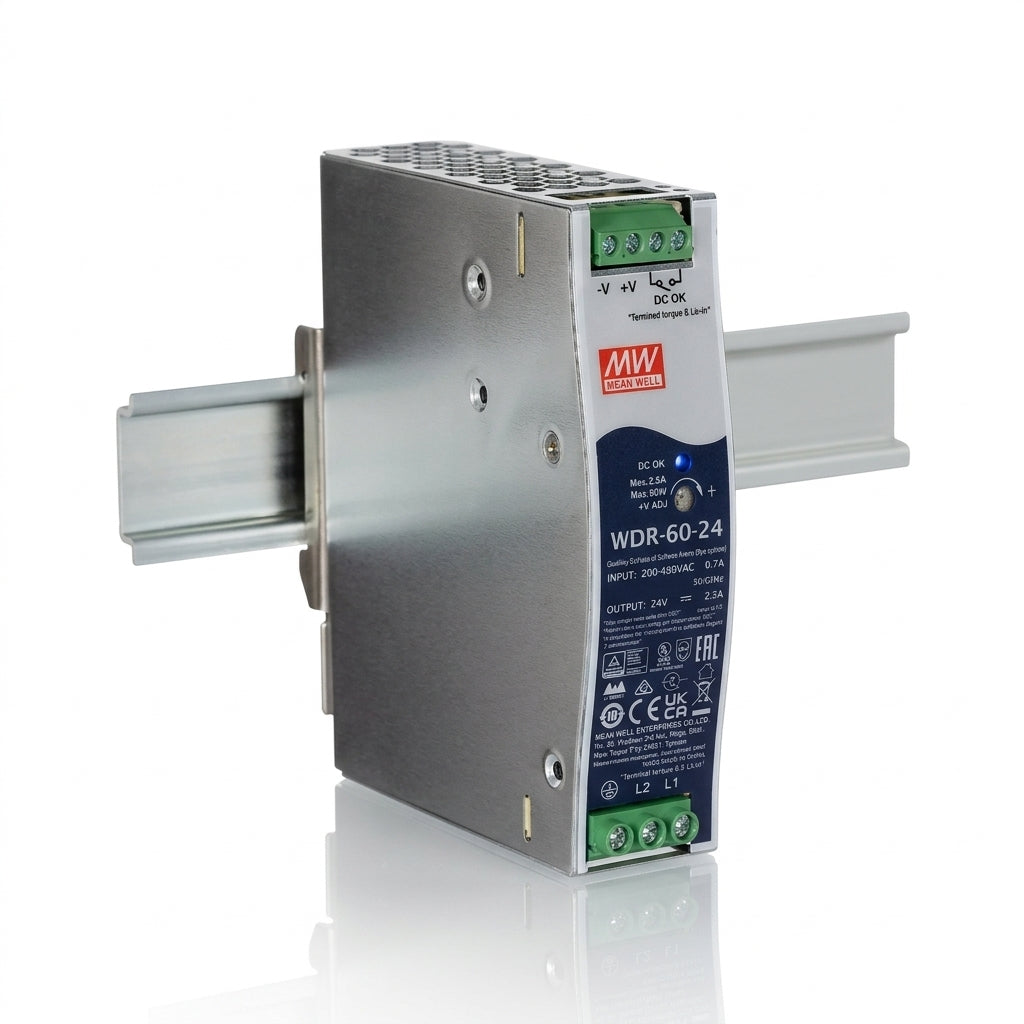

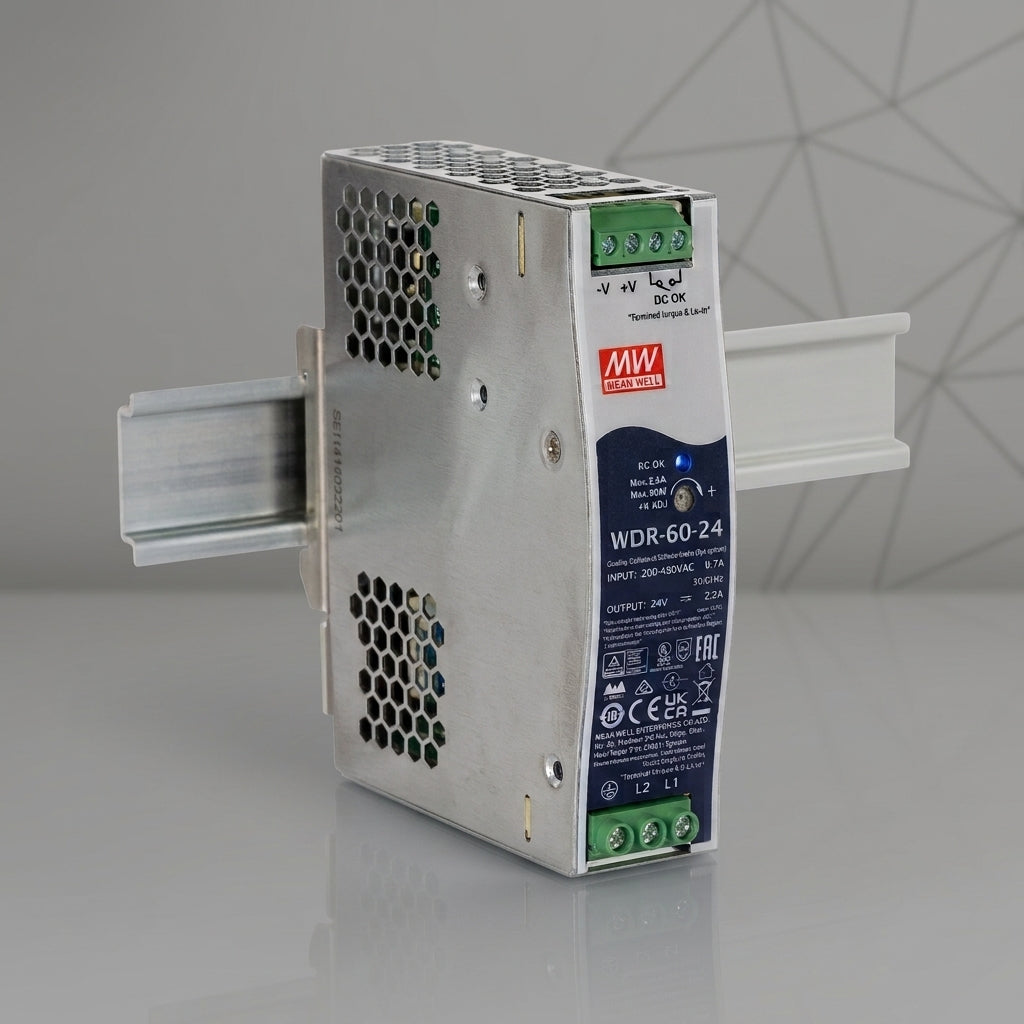

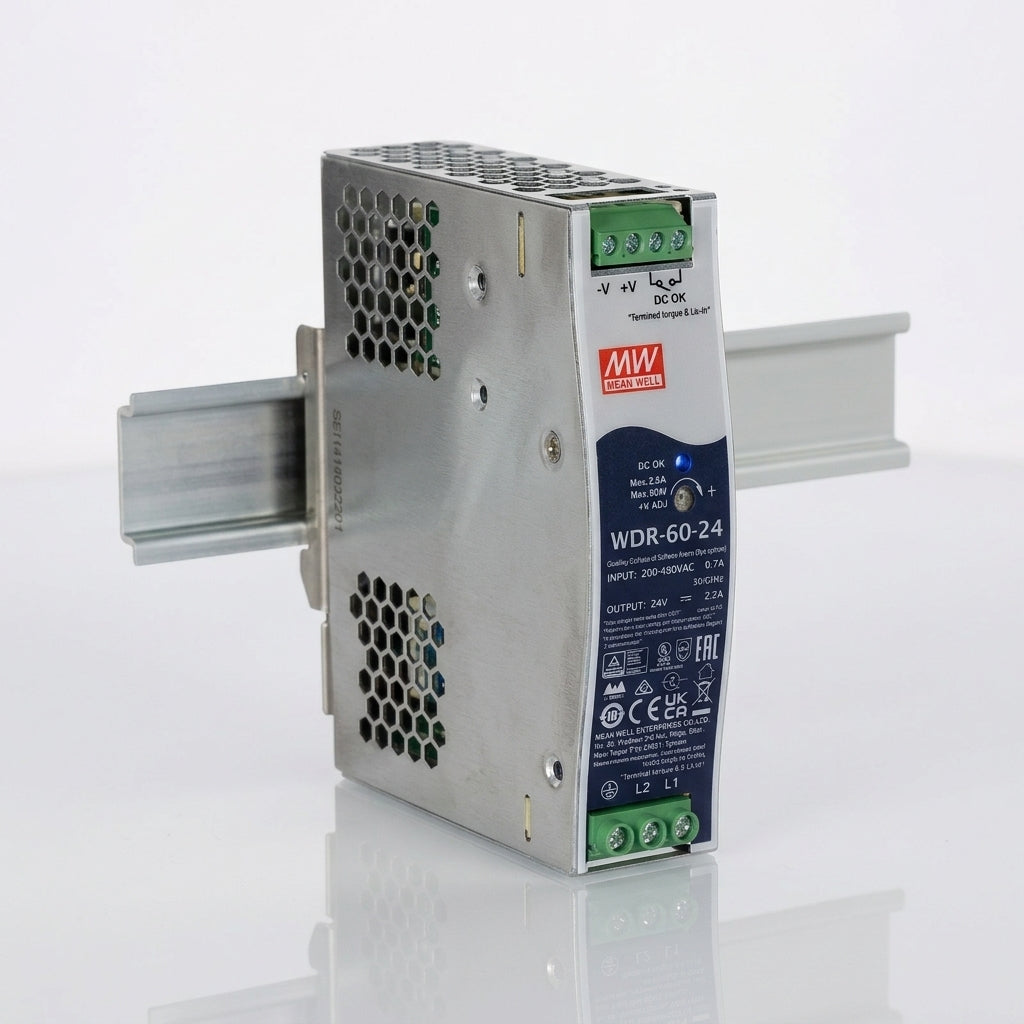

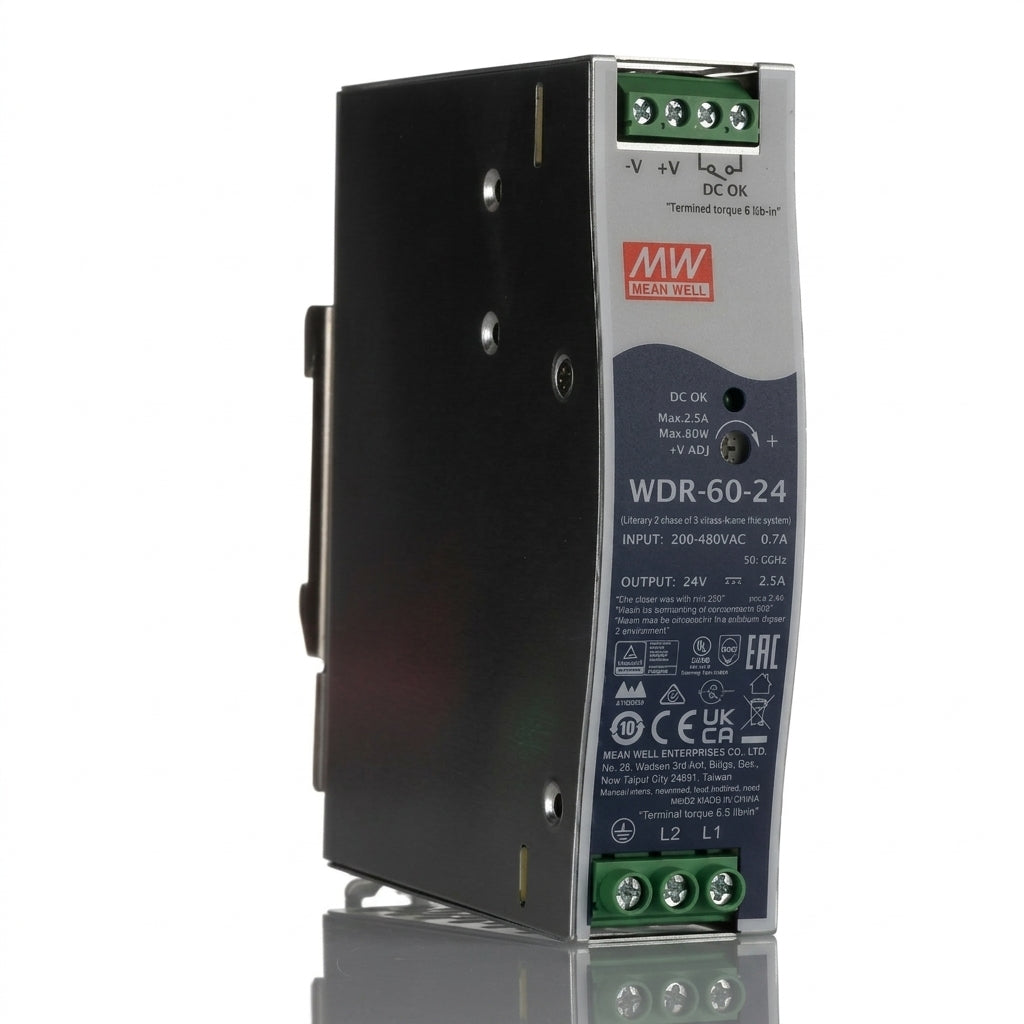

MEAN WELL WDR-60-24 Industrial DIN Rail Power Supply – 60W 24V DC 2.5A Ultra Wide Input Meanwell

MEAN WELL WDR-60-24 Industrial DIN Rail Power Supply – 60W 24V DC 2.5A Ultra Wide Input Meanwell

Upgrade your industrial automation setups with the MEAN WELL WDR-60-24, a ultra-slim, high-efficiency 60W DIN rail power supply designed for demanding environments. Delivering a reliable 24V DC output at 2.5A, this unit features a wide 200–480VAC input range, making it perfect for single or two-phase industrial AC power systems.

Its compact 32mm width saves vital space inside control cabinets, while its rugged design guarantees steady performance in temperature conditions ranging from -20°C to +60°C.

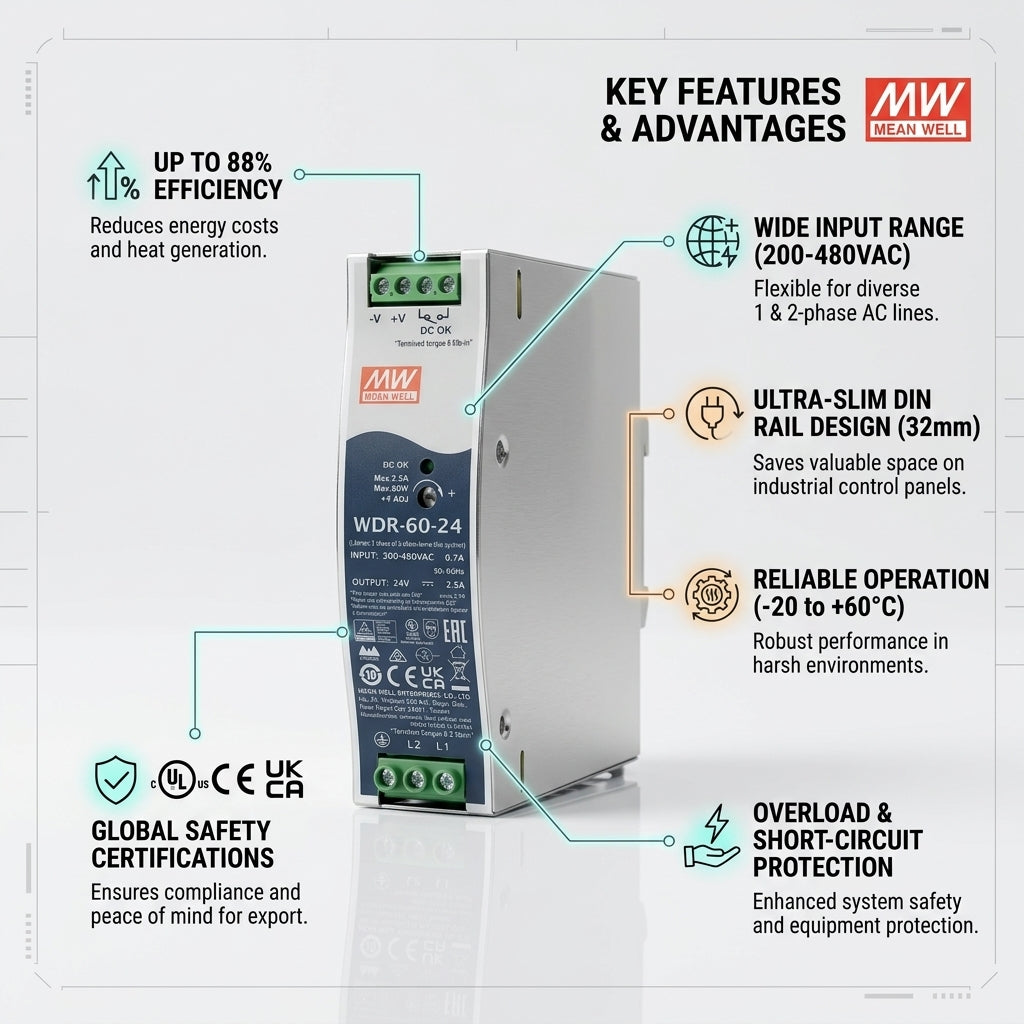

Key Features & Benefits

High Efficiency (Up to 88%): Minimizes power consumption and reduces heat generation to extend component life.

Ultra-Slim Profile (32mm): Space-saving design optimized for high-density DIN rail panel layouts.

Wide AC Input Range: Accepts 200–480VAC input, compatible with 1-phase and 2-phase power configurations.

Built-in Protection: Features integrated safeguards against overload, short-circuit, over-voltage, and over-temperature.

Global Compliance: Certified with international safety standards including UL, CE, EAC, and UKCA for reliable global deployment.

Durable & Industrial-Grade: Engineered to operate reliably in harsh ambient environments from -20°C to +60°C.

Technical Specifications


Model WDR-60-24
Brand MEAN WELL
Output Voltage 24V DC
Output Current 2.5A
Rated Power 60W (Max 80W peak capability)Input Voltage200–480VAC (50/60Hz)
Efficiency Up to 88%
Operating Temp. -20°C to +60°C
Mounting Type DIN Rail TS-35/7.5 or 15Dimensions Width32mm
Certifications UL, CE, UKCA, EAC

Ideal Applications
Industrial control systems & factory automation
Semiconductor fabrication equipment
Electro-mechanical apparatus
Power distribution cabinets & panels
