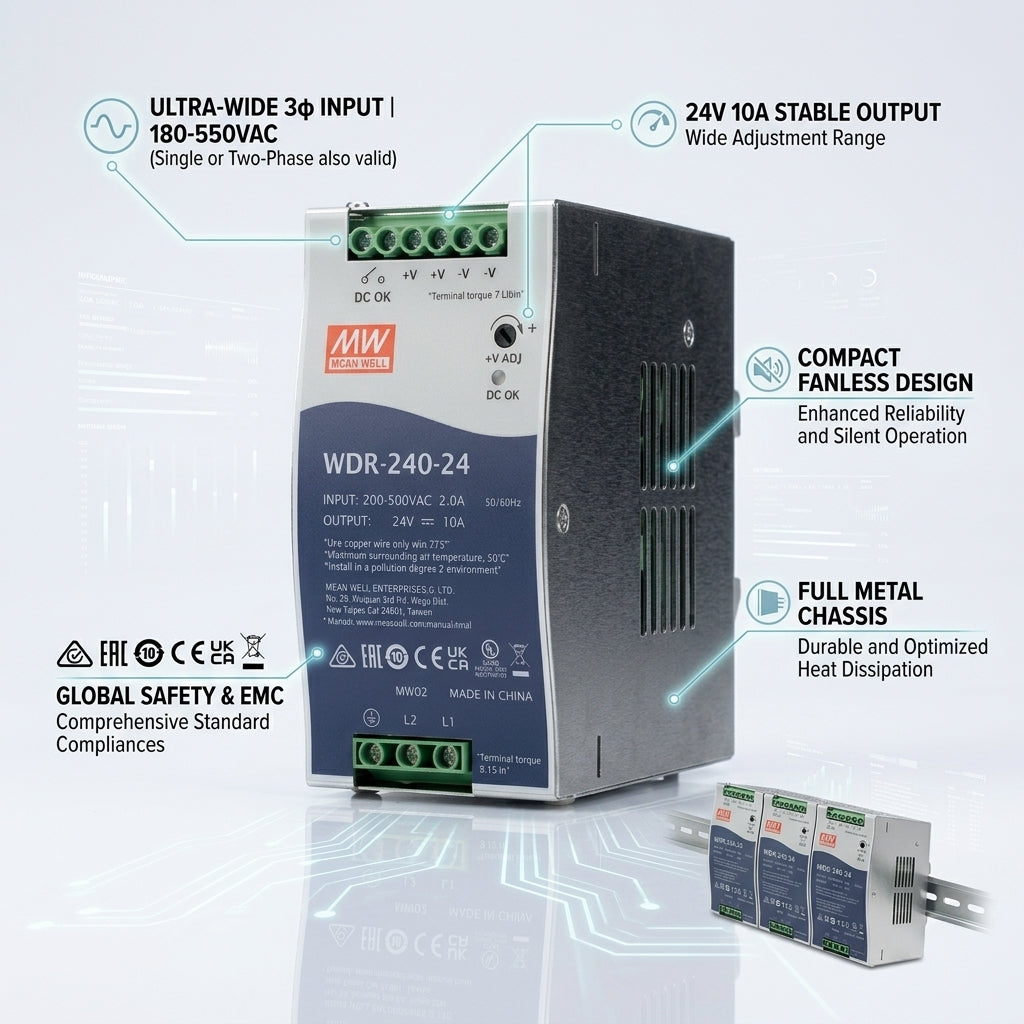

The Mean Well WDR-240-24 is a high-performance 240W industrial DIN rail power supply designed for demanding automation and control environments. Featuring an ultra-wide 200–500VAC input range and delivering a stable 24V DC / 10A output, it ensures reliable power delivery for industrial machinery, control panels, and automation systems.

Upgrade your industrial control setup with the Mean Well WDR-240-24 Single/Two-Phase Industrial DIN Rail Power Supply. Built for durability and maximum efficiency, this power supply accepts a broad input voltage range (200–500VAC), making it ideal for environments prone to grid fluctuations or phase imbalances. With a slim metal housing, passive convection cooling, and essential safety certifications, it provides continuous, heavy-duty power performance.

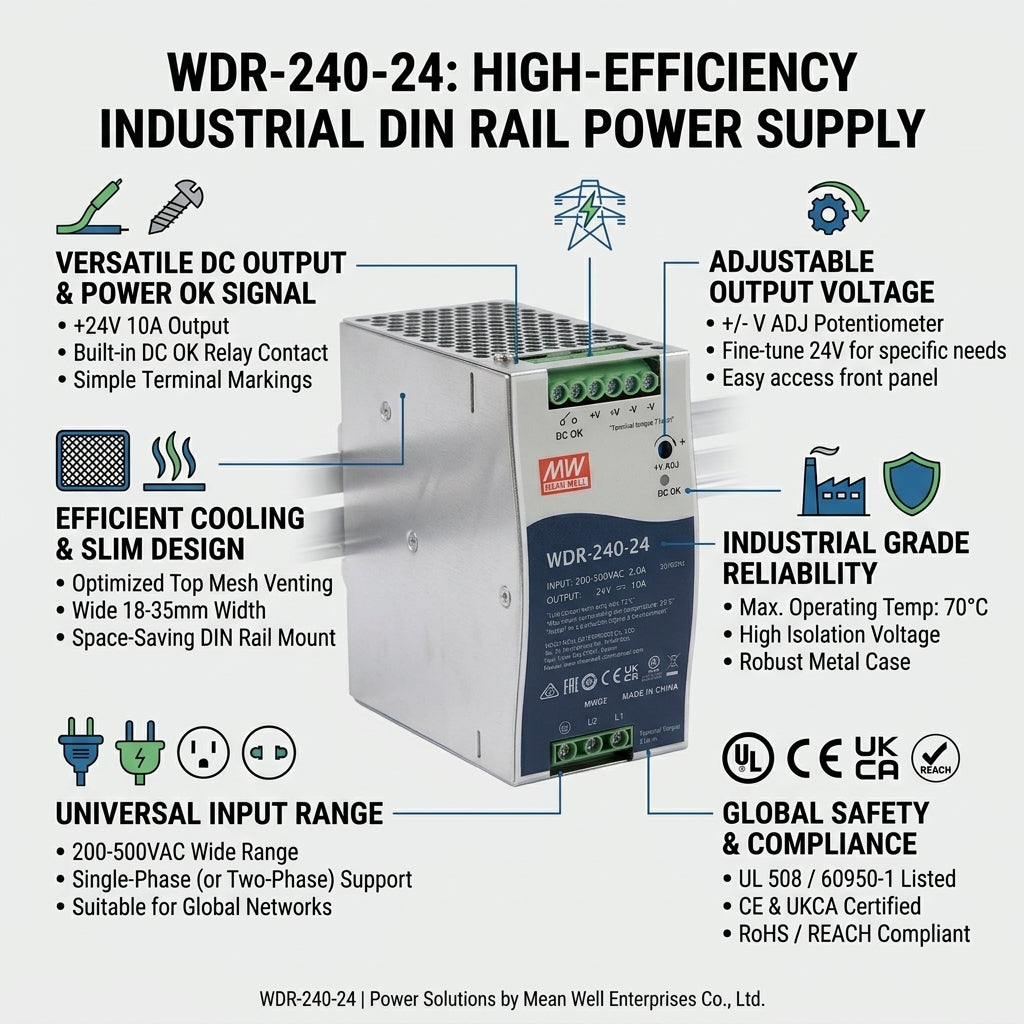

Key Features & Benefits

Ultra-Wide Input Range: Handles 200–500VAC single-phase or two-phase inputs, offering ultimate versatility across various global electrical grids.

High Efficiency & Output: Delivers a steady 24V DC at 10A (240W), with a fine-tunable output voltage (+V ADJ potentiometer) to compensate for cable line drops.

Industrial Reliability: Built with a rugged metal enclosure and optimized top-venting cooling system to operate reliably in harsh working environments up to 70°C.

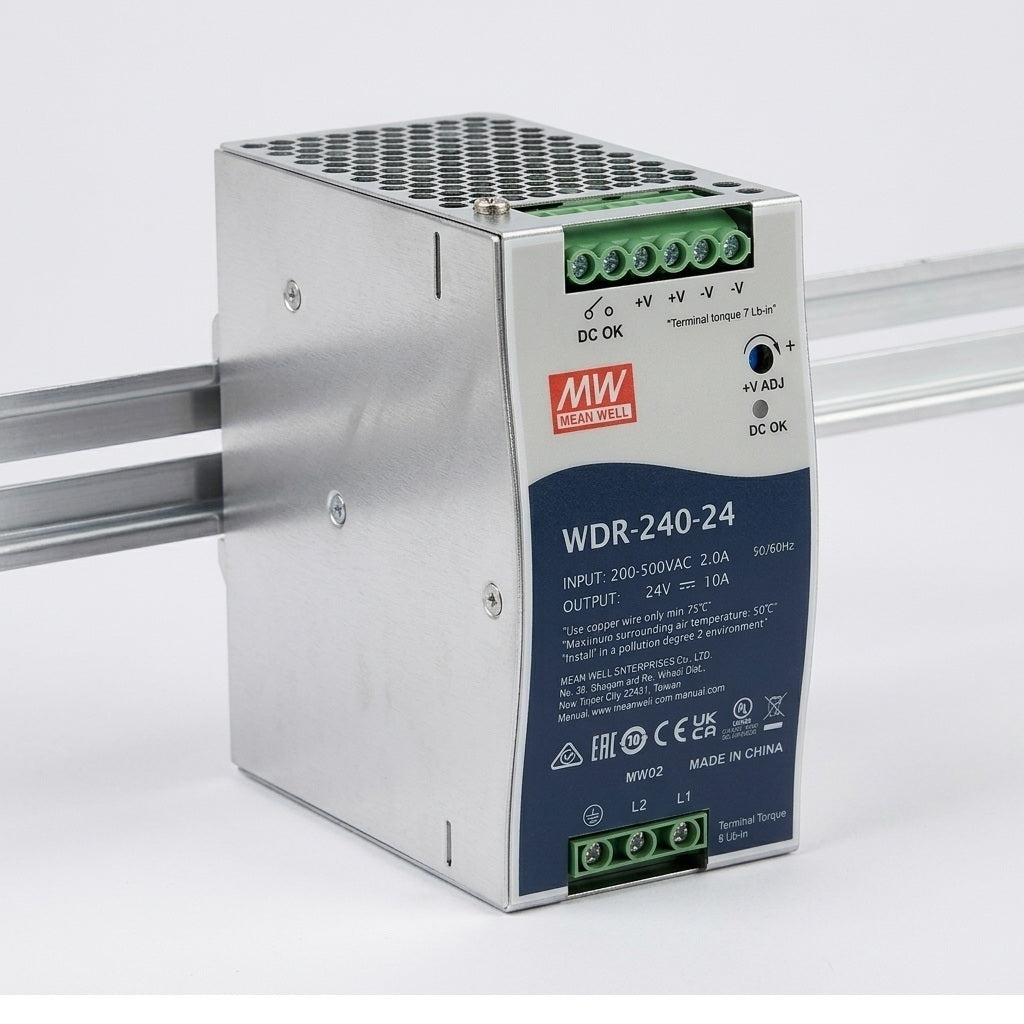

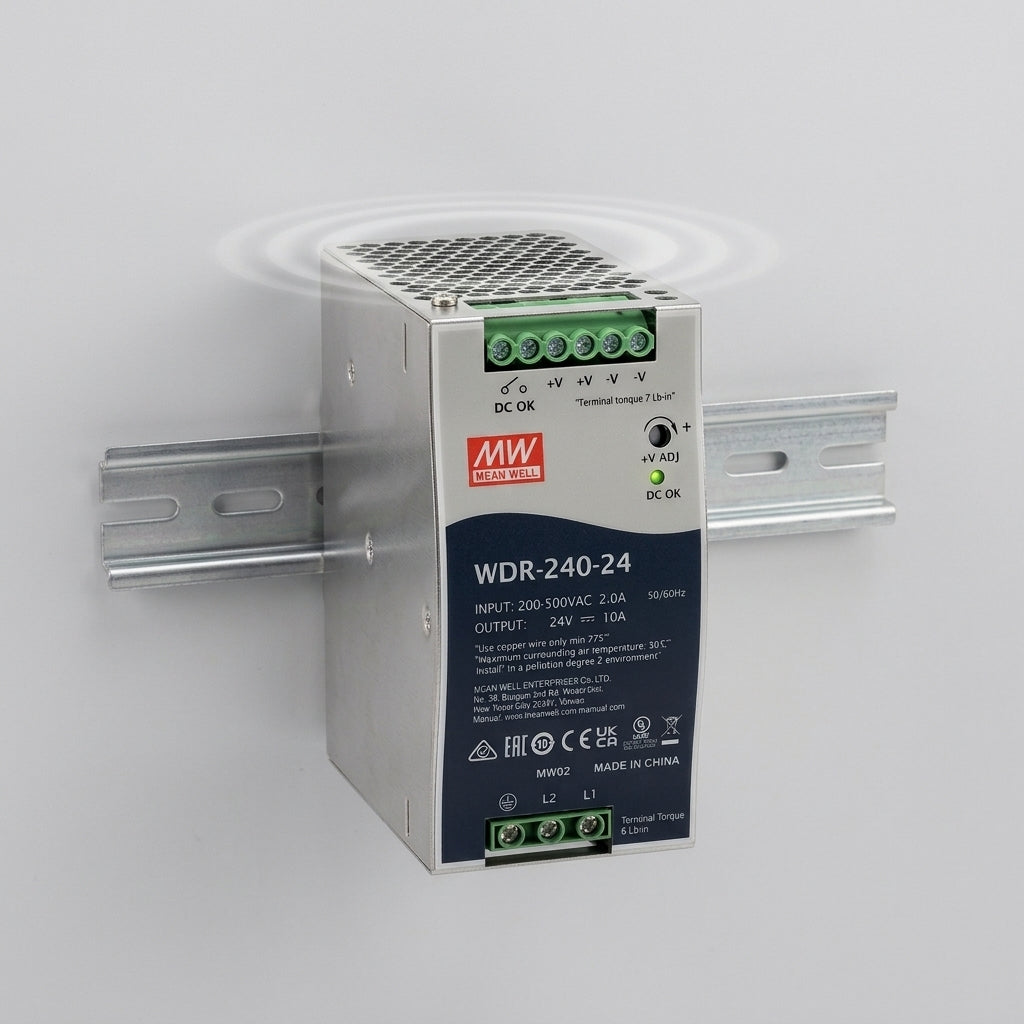

Compact DIN Rail Design: Mounts quickly onto standard TS-35/7.5 or 15 DIN rails, saving valuable cabinet space.

Integrated Safety & Monitoring: Includes a built-in DC OK relay contact for real-time status indication, plus protections against short circuit, overload, overvoltage, and overtemperature.

Global Compliance: Fully certified under UL 508, CE, UKCA, and RoHS standards.

Technical Specifications
Brand: MEAN WELL
Model: WDR-240-24
Output Voltage: 24V DC
Output Current: 0 – 10A
Rated Power: 240W
Input Voltage Range: 200 – 500VAC (47–63Hz)
Voltage Adjust Range: 24 – 28V DC
Mounting Type: DIN Rail (TS-35)
Operating Temperature: -30°C to +70°C
Certifications: UL 508, CE, UKCA, EAC, RoHS / REACH

Applications
Industrial control & factory automation systems
Semiconductor fabrication equipment
Electro-mechanical apparatus
Power distribution and PLC cabinets
