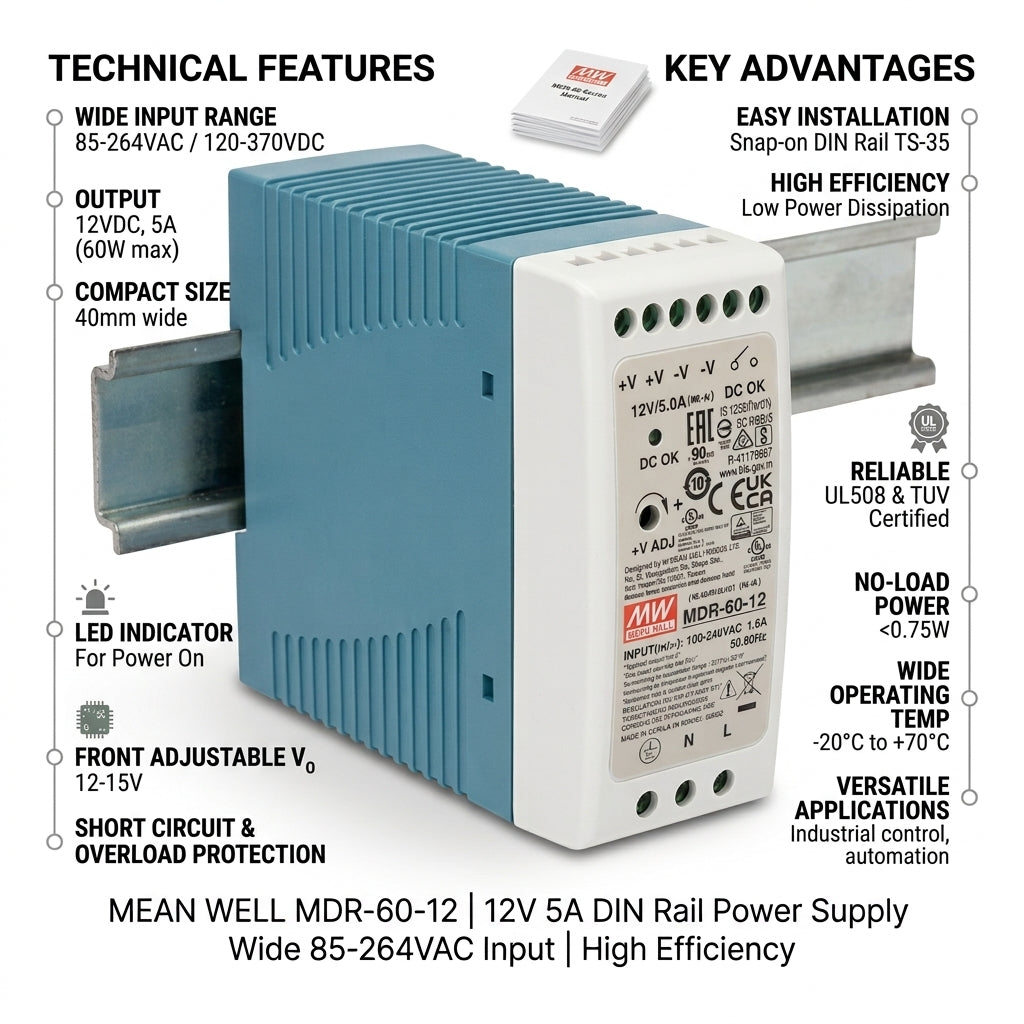

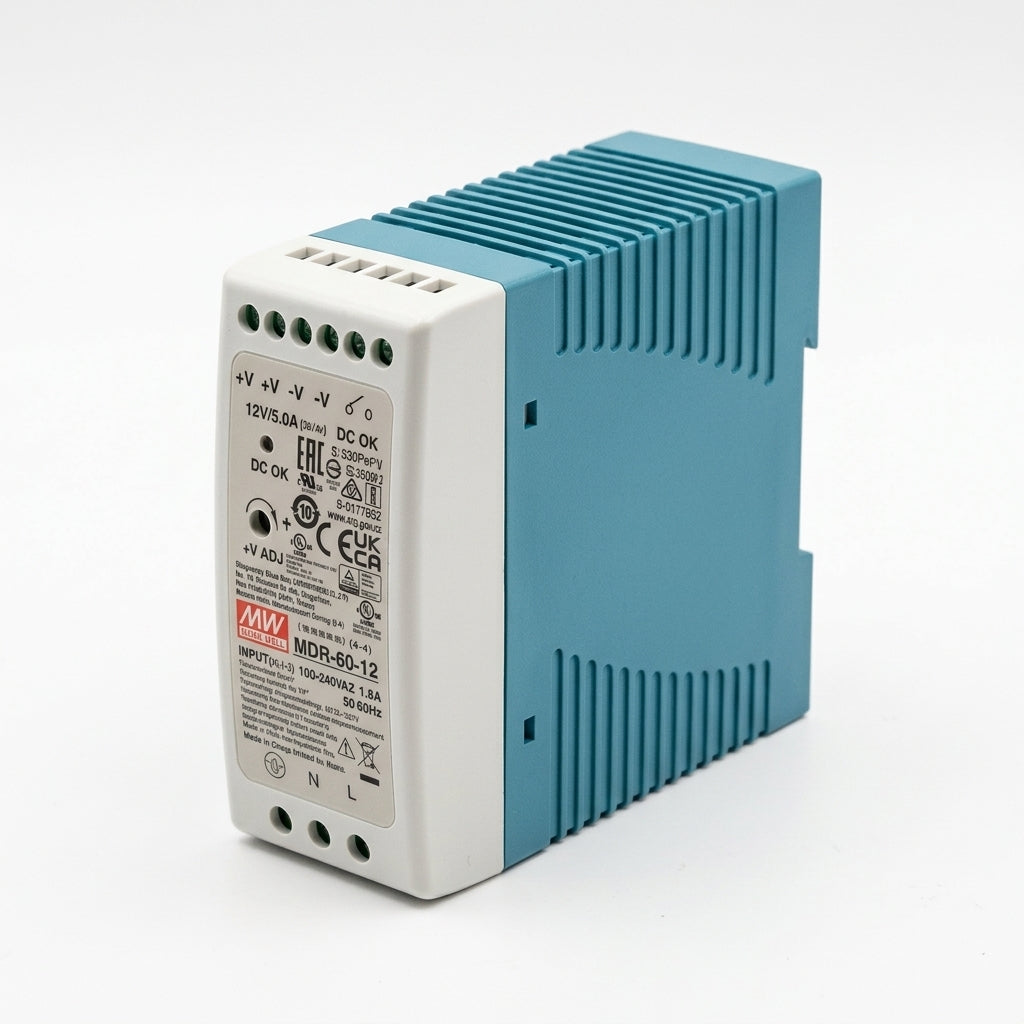

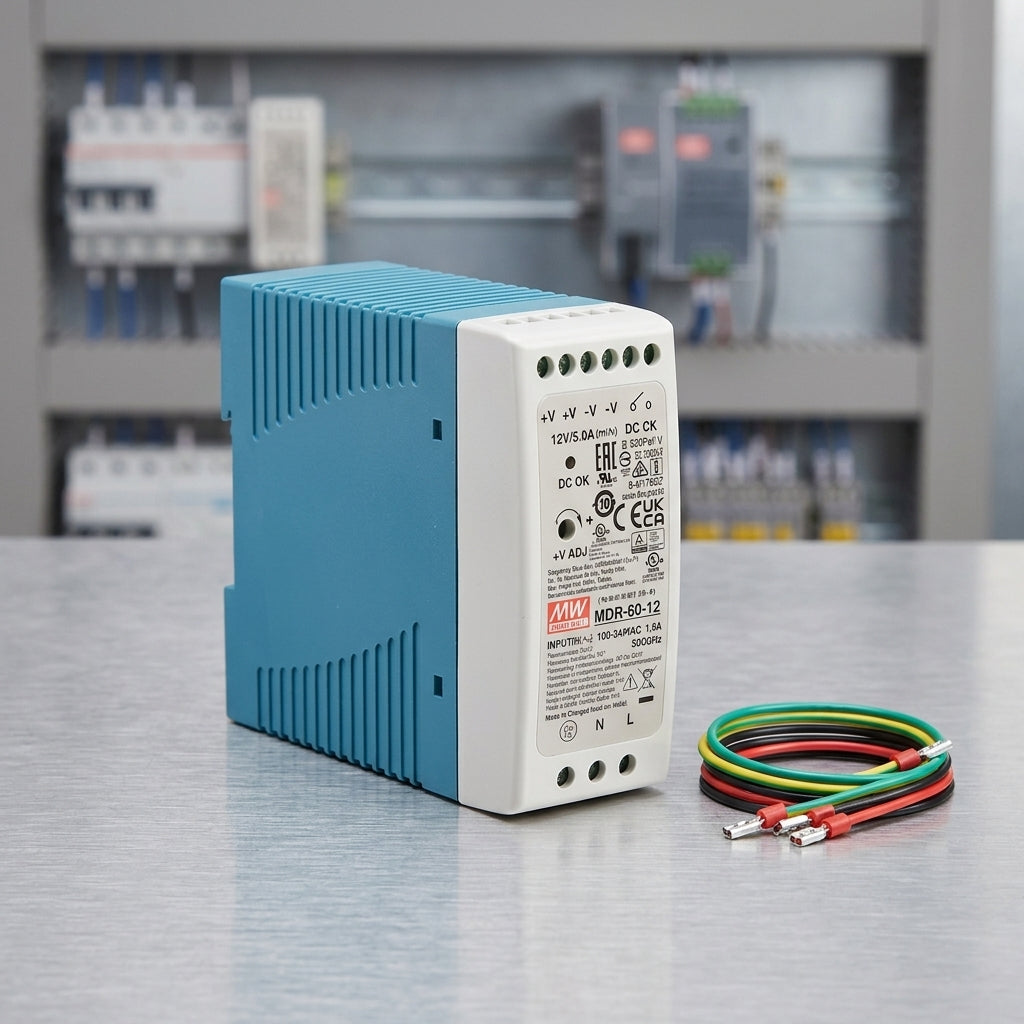

The Mean Well MDR-60-12 is a compact, ultra-slim 60W AC/DC DIN-rail power supply engineered for industrial control systems, automation equipment, and electrical enclosure installations. Designed for efficiency and reliability, it delivers a stable 12V DC output at up to 5A in a space-saving plastic housing suitable for standard TS-35/7.5 or TS-35/15 DIN rails.

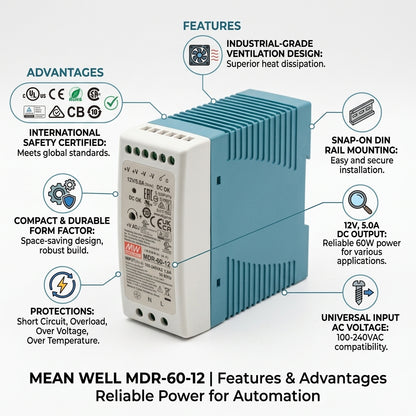

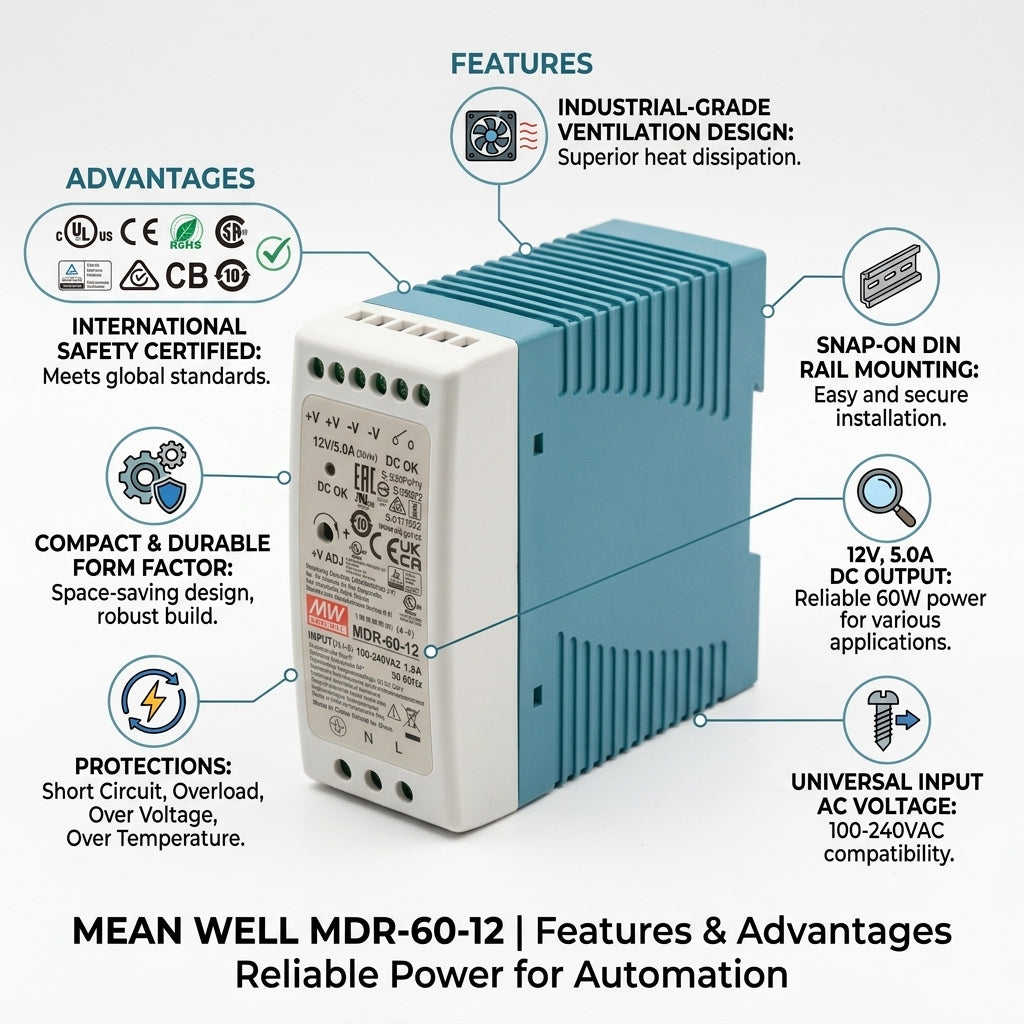

Key Features

Compact & Space-Saving: Ultra-slim profile conserves valuable panel space in control cabinets and distribution boards.

Universal AC Input: Accepts a wide input voltage range (100–240V AC, 50/60Hz), making it versatile for local and international power standards.

Adjustable Output Voltage: Front-panel +V ADJ potentiometer allows precision fine-tuning of the output voltage to meet specific load requirements.

Comprehensive Protection: Built-in protection against short circuit, overload, and overvoltage ensures long-term system stability and safety.

DC OK Signal: Features a integrated DC OK relay contact / indicator for real-time monitoring of operational status.

Efficient Heat Dissipation: Convection-cooled design with integrated side ventilation slots for quiet, fanless operation.

Global Certifications: Fully compliant with major safety standards including UL, CE, UKCA, EAC, and CCC.

Brand / Series Mean Well / MDR-60 Series
Model MDR-60-12
Input Voltage 100–240V AC ~ 1.8A, 50/60Hz
Output Voltage 12V DC (Adjustable via +V ADJ)
Rated Current 5.0A
Rated Power 60W

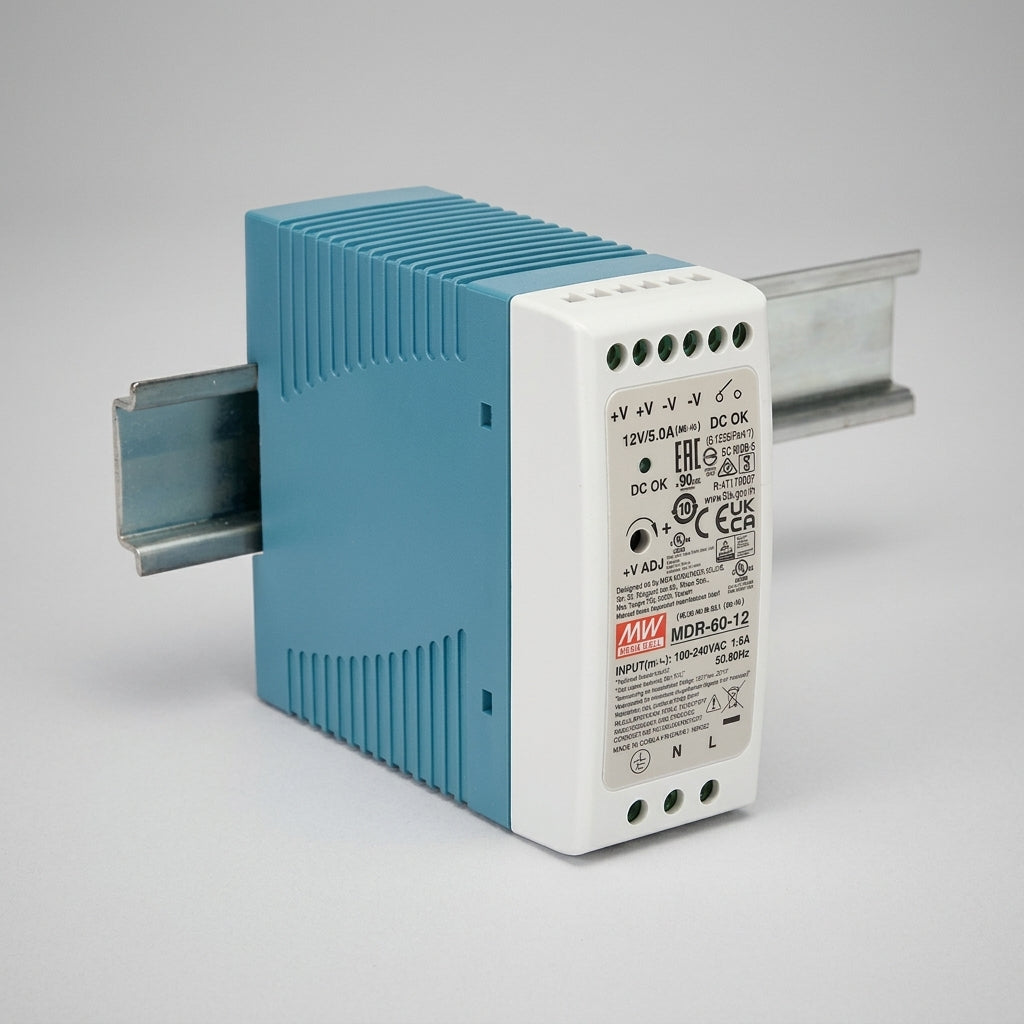

Mounting Type DIN Rail (TS-35/7.5 or TS-35/15)
Cooling Free air convection (fanless)
Terminal TypeScrew terminals (+V, -V, DC OK, N, L)

Applications
Industrial Automation & Control Systems
Factory Enclosures & Electrical Distribution Panels
Semiconductor Fabrication Equipment
Building & Home Automation Systems
LED Signage & Low-Voltage DC Lighting Control
