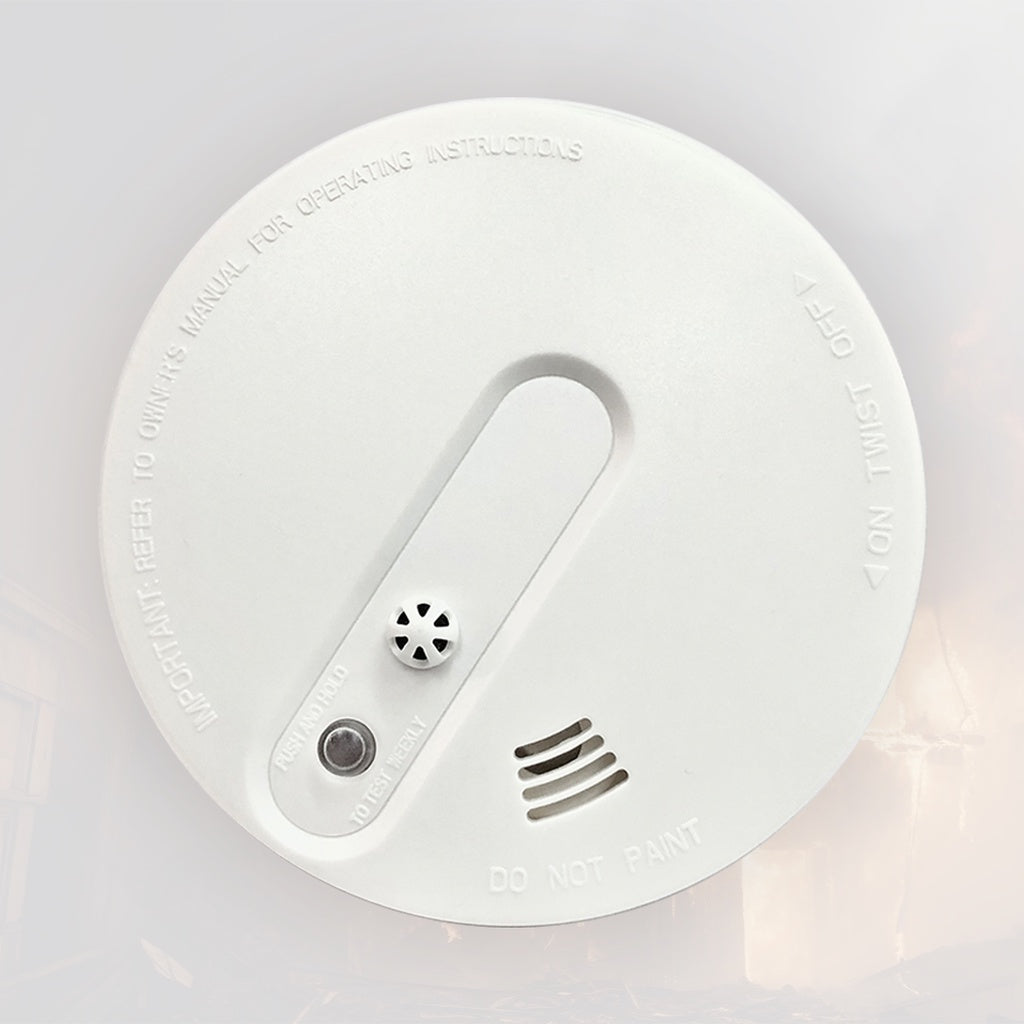

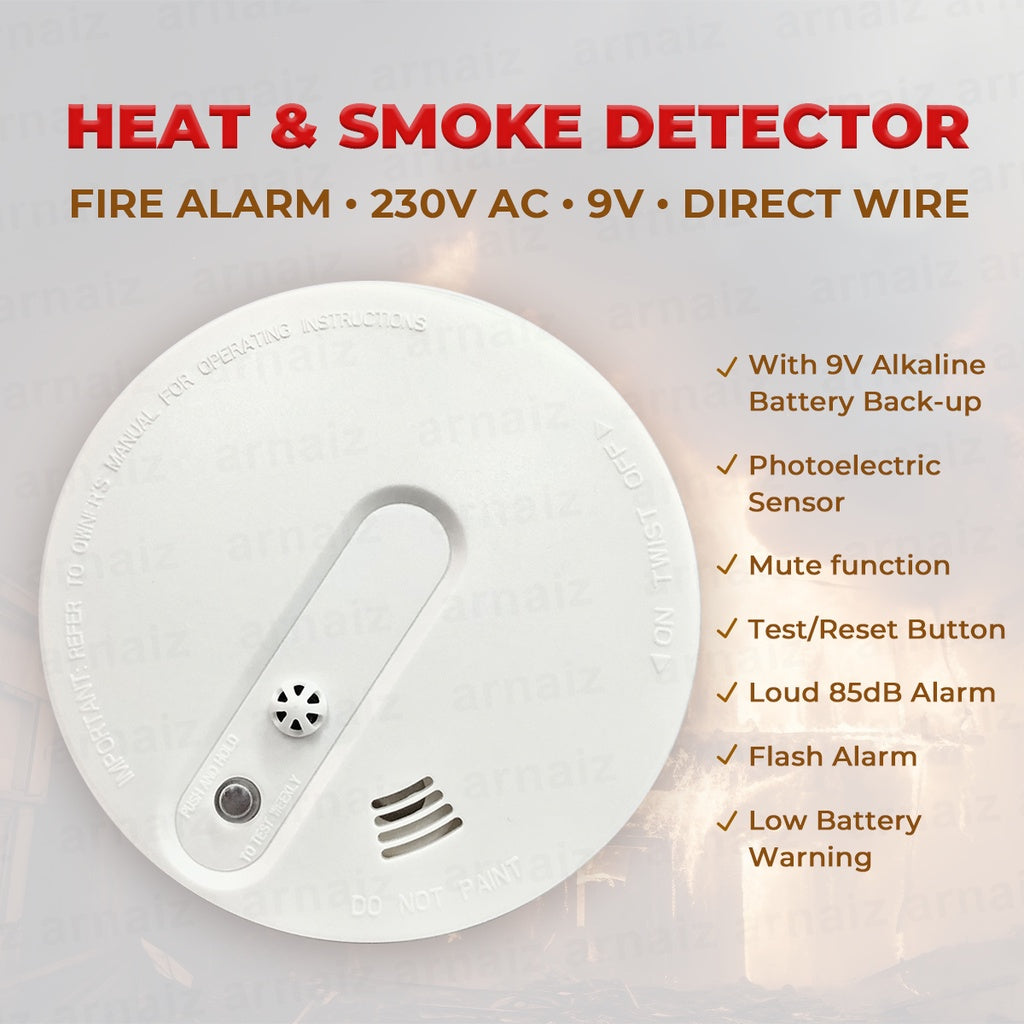

LQD Photoelectronic Heat and Smoke Detector 220V 230V Interconnectable Fire Alarm 9V Battery Backup

Photoelectronic Heat and Smoke Detector 230V Interconnectable Fire Alarm with 9V Battery Backup

100% Original

100% Brand New

Features:

• Infrared photoelectronic sensor

• with 9V Alkaline Battery Backup

• Test/Reset button

• Mute function

• Interconnects 40pcs detectors at most

• Loud 85dB sound and flash alarm / LED indicating alarm

• Low battery warning

• Separate mounting plate

• Flash alarm

• 230V AC wire harness included

• Adopts MCU Auto-Processing Technology

• Malfunction auto-check

• SMT Manufacture Technology, Reliable Stability

• Dust-proof, Moth-proof, Anti White Light Interference

• Anti-RF Interference (20V/m-1GHz)

Technical Parameters:

• Operating Voltage:

     - 9V Battery (6f22 carbon battery, DC TYPE)

     - AC220V / 110V with 9V backup battery (AC TYPE)

• Static current: ≥ 10uA

• Alarm Current: ≥ 35mA

• Sensitivity: 2.06%ft ± 1.3

• Alarm Temperature: 54°C ~ 65°C

• Alarm indication: LED flashes in Red

• Alarm sound: ≥ 85dB/3m

• Radio frequency: 315MHz / 433MHz

• Code form: 2262 code

• Radio transmitting distance: 200m (open area)

• Operating temperature" -10°C ~ +50°C

• Humidity; ≥ 95 % RH

• Dimension: ⌀ 128x38mm

• Execution standard: GB4715, GB4716, EN14604, UL217

• Detecting area: 80 m2 at 6-12m installation height;

                            60 m2 at installation height <6m
