LQD Newstar UT-360TRD Analog Multitester with Cover Multimeter UT360TRD

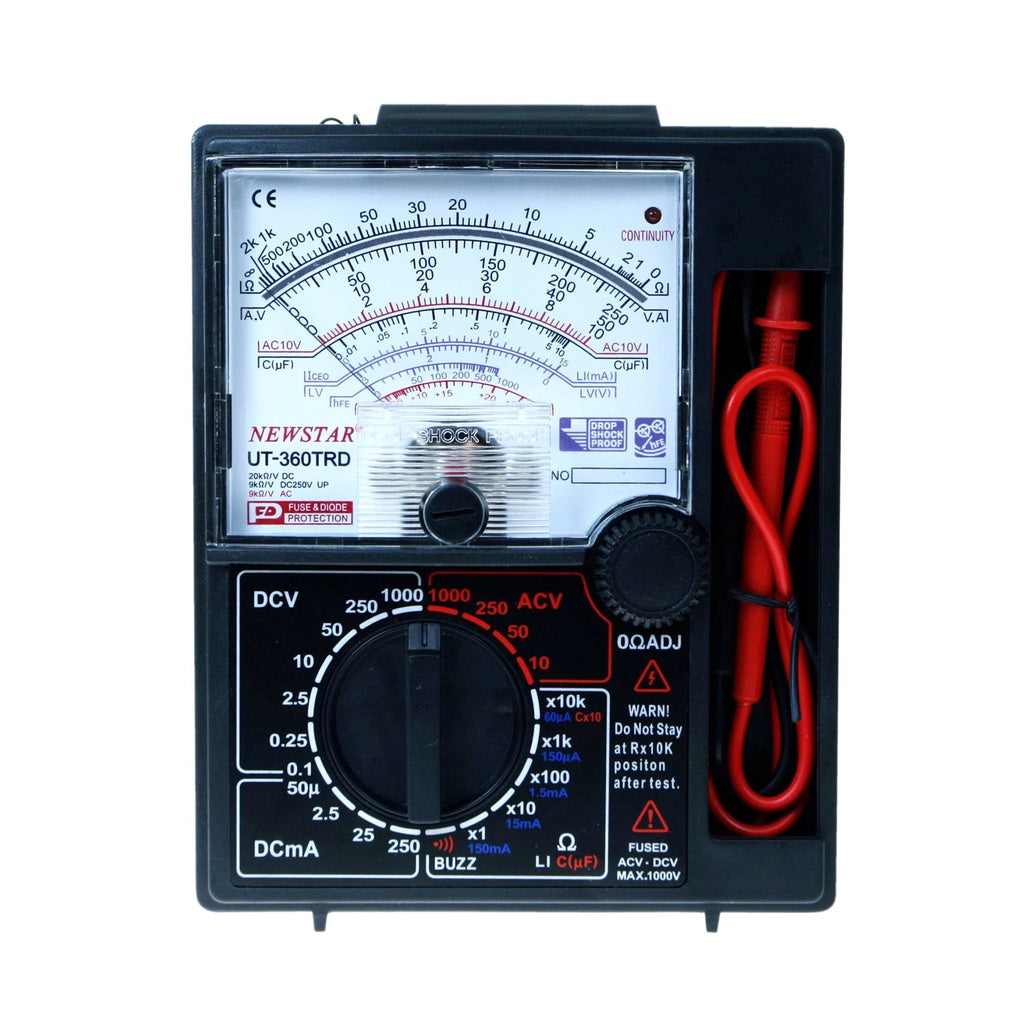

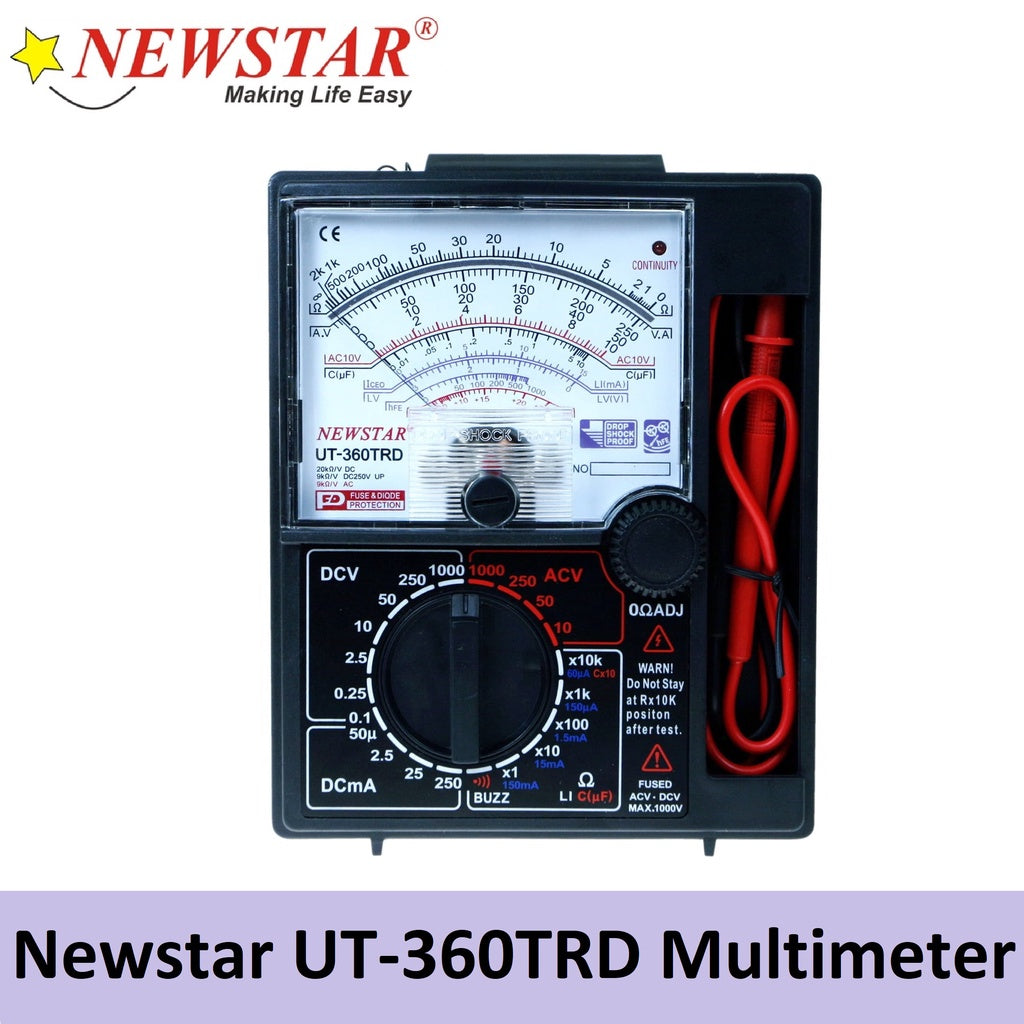

Newstar UT-360TRD Analog Multitester with Cover Multimeter

100% Original

100% Brand New

Application and Feature:

• This instrument is portable multitester designated for measurement of weak current circuits.

• Panel lace protection cover which serves also as a stand is employed.

• Our technology has made it possible to measure high resistance (up to maximum 200Mohm) with low voltage.

• Overload protection circuit up to maximum 230V is provided.

General Specification:

• Circuit protection: The circuit is protected by fuse even when voltage of up to AC 230V is impressed on each range for 5 seconds

• Internal battery: UM-3 1.5Vx2

• Internal fuse: 0.5A/250V 5.2mm dia x20mm

• Withstand voltage: 3kv AC (1min) between input terminal and case

• Dimensions and weigh: 159.5x129x41.5mm / approx 320g
