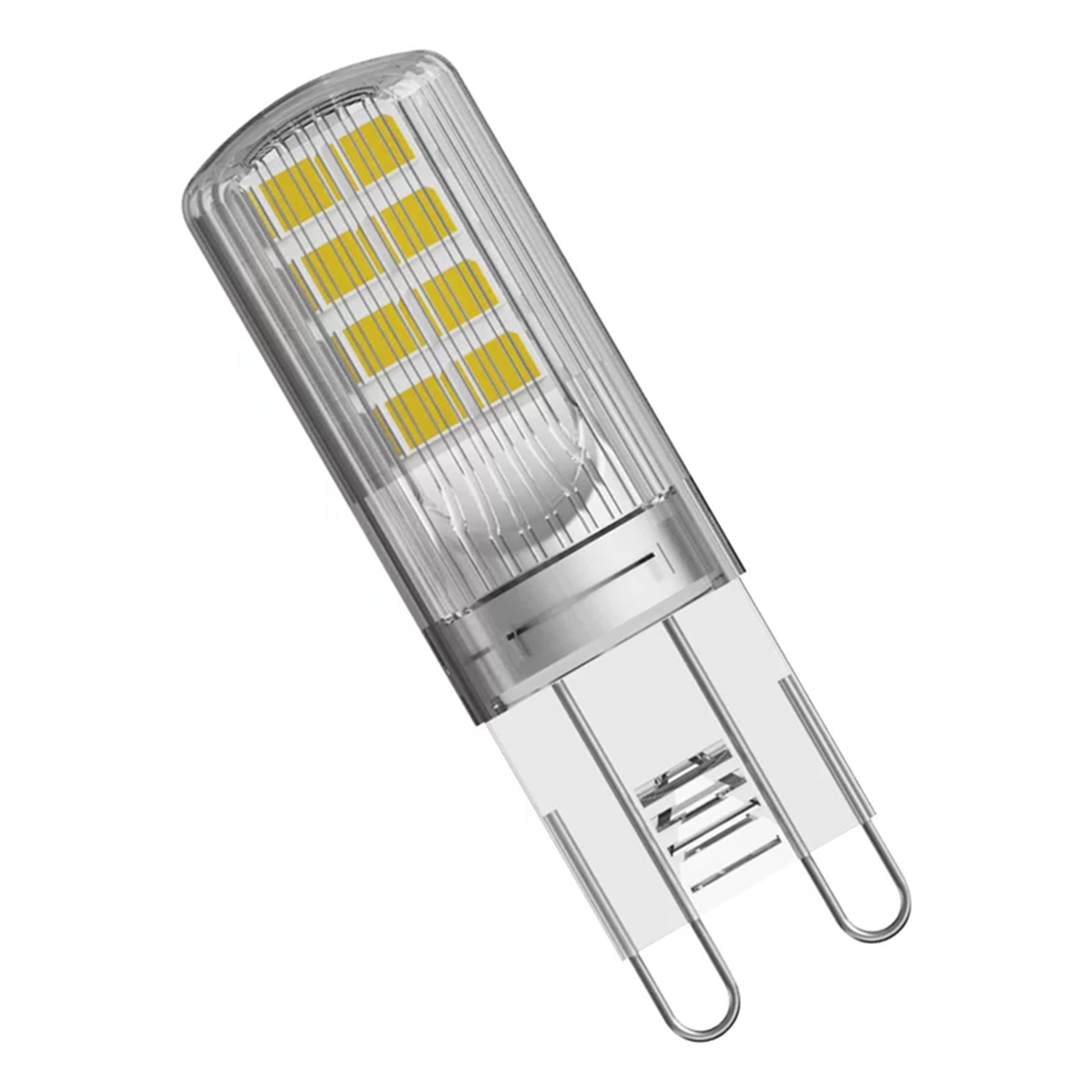

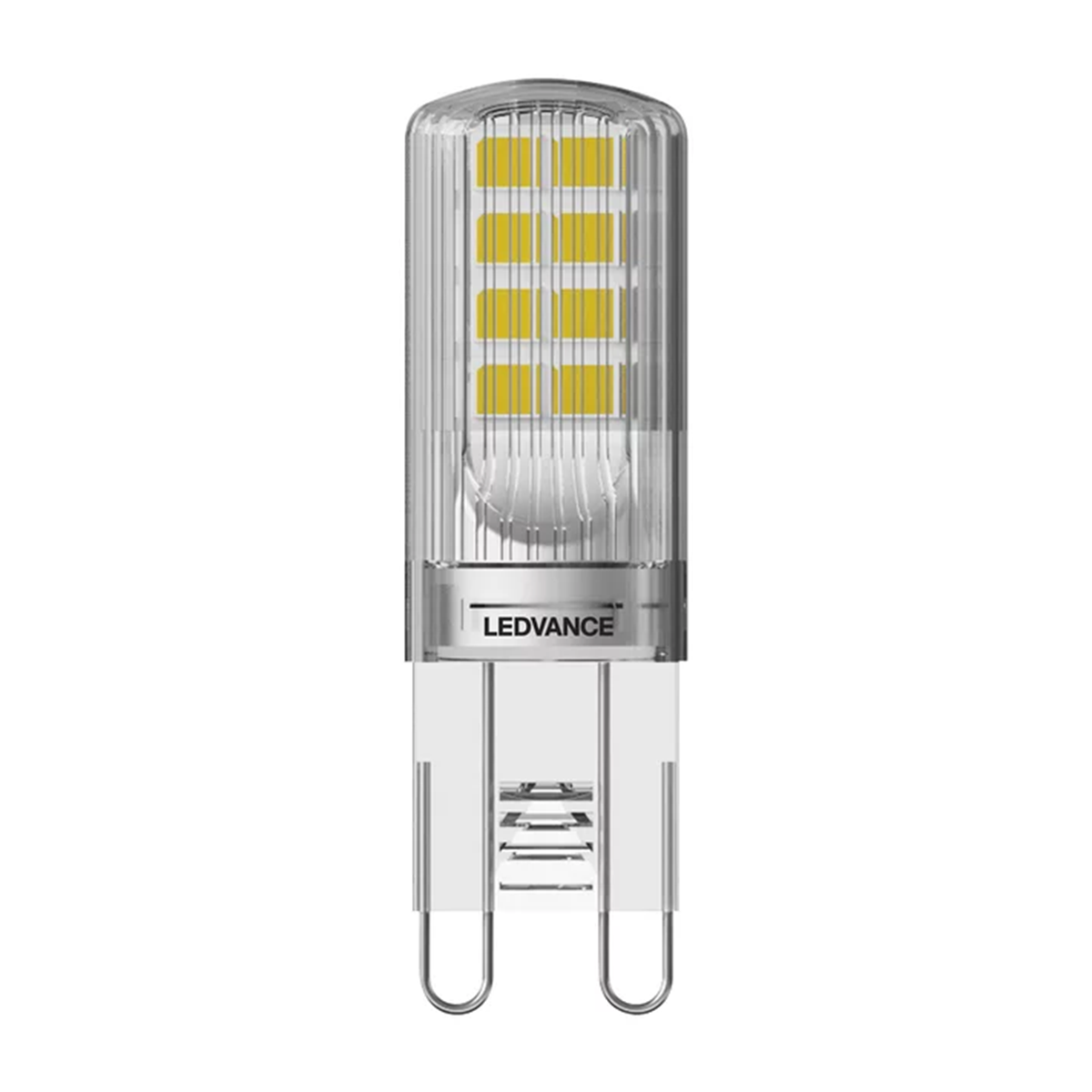

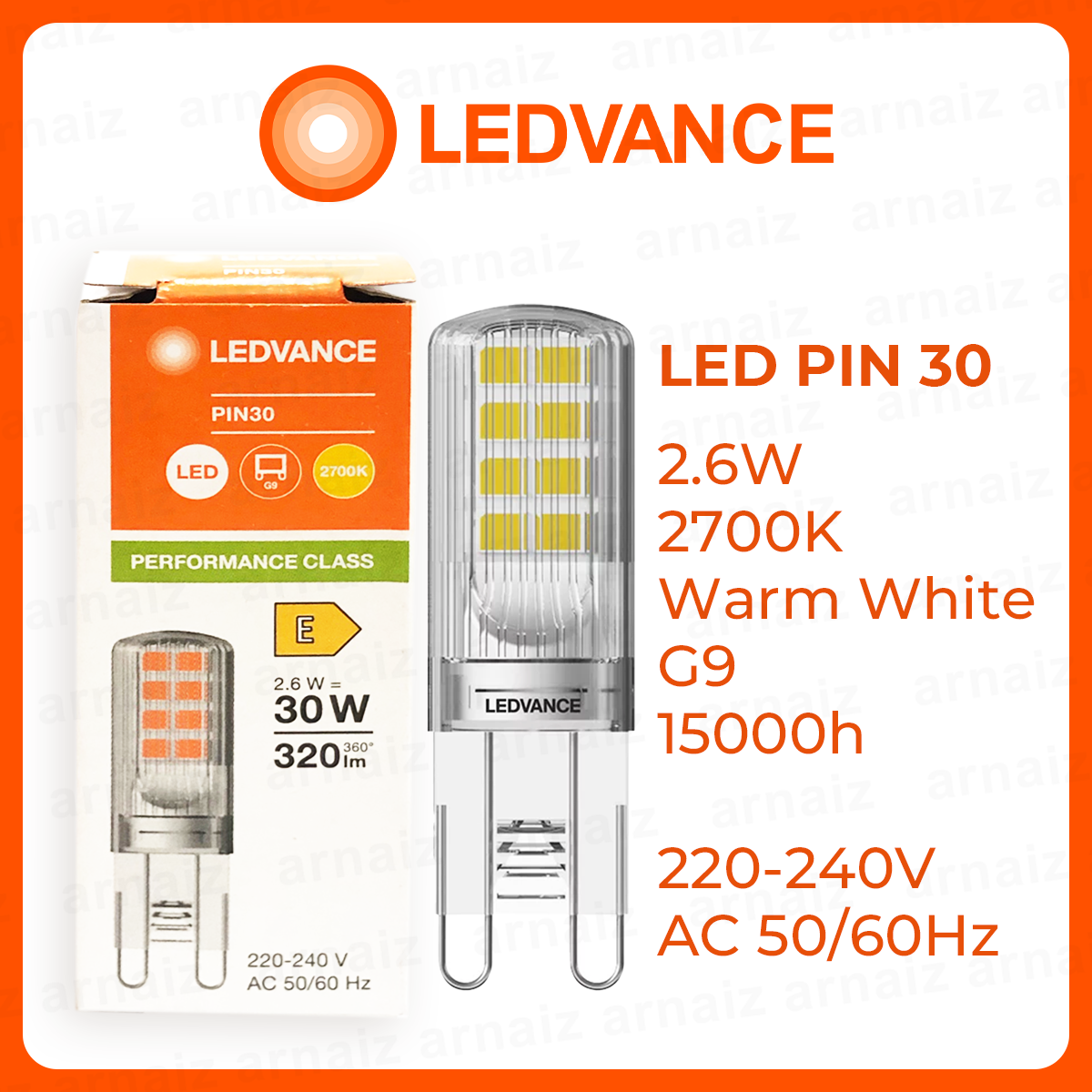

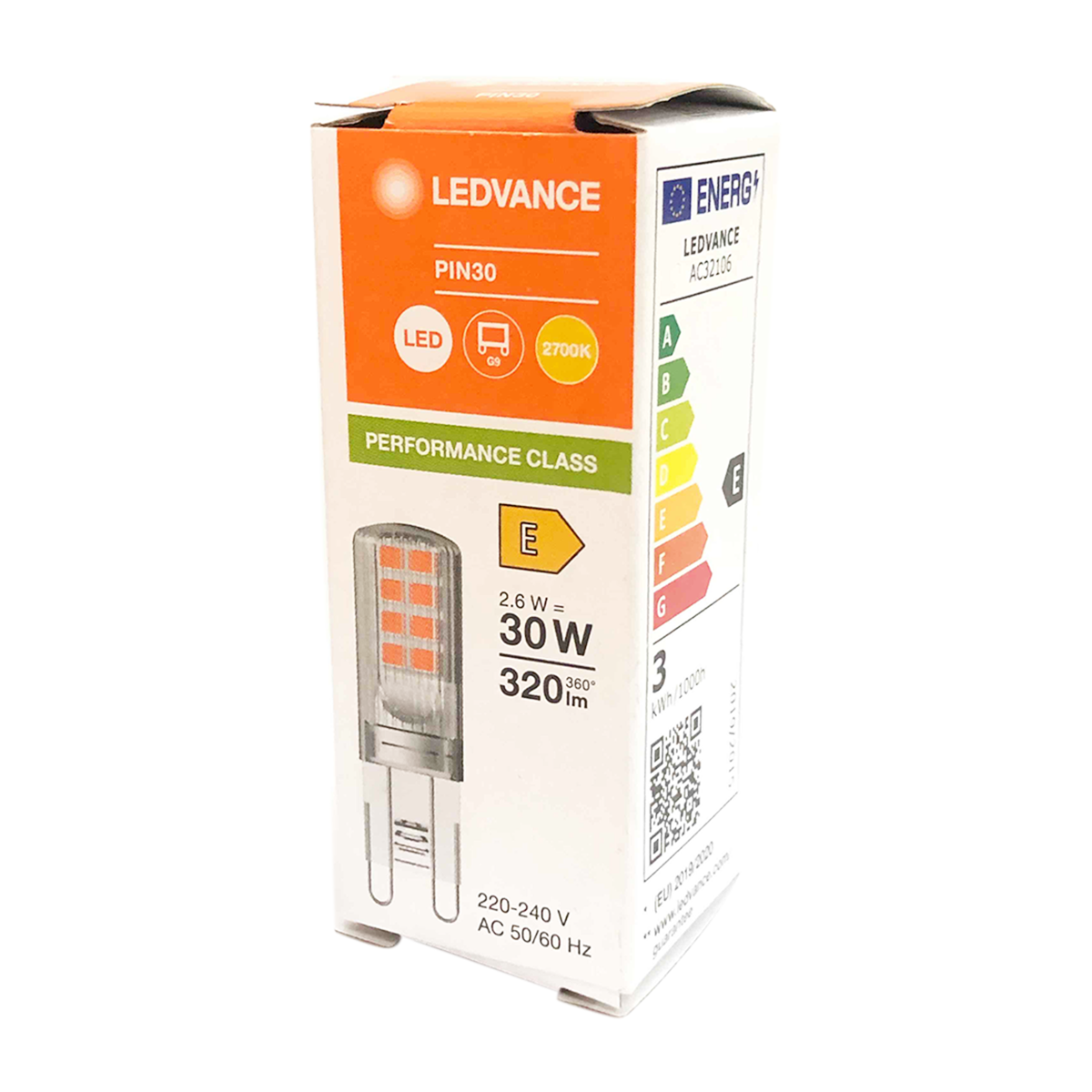

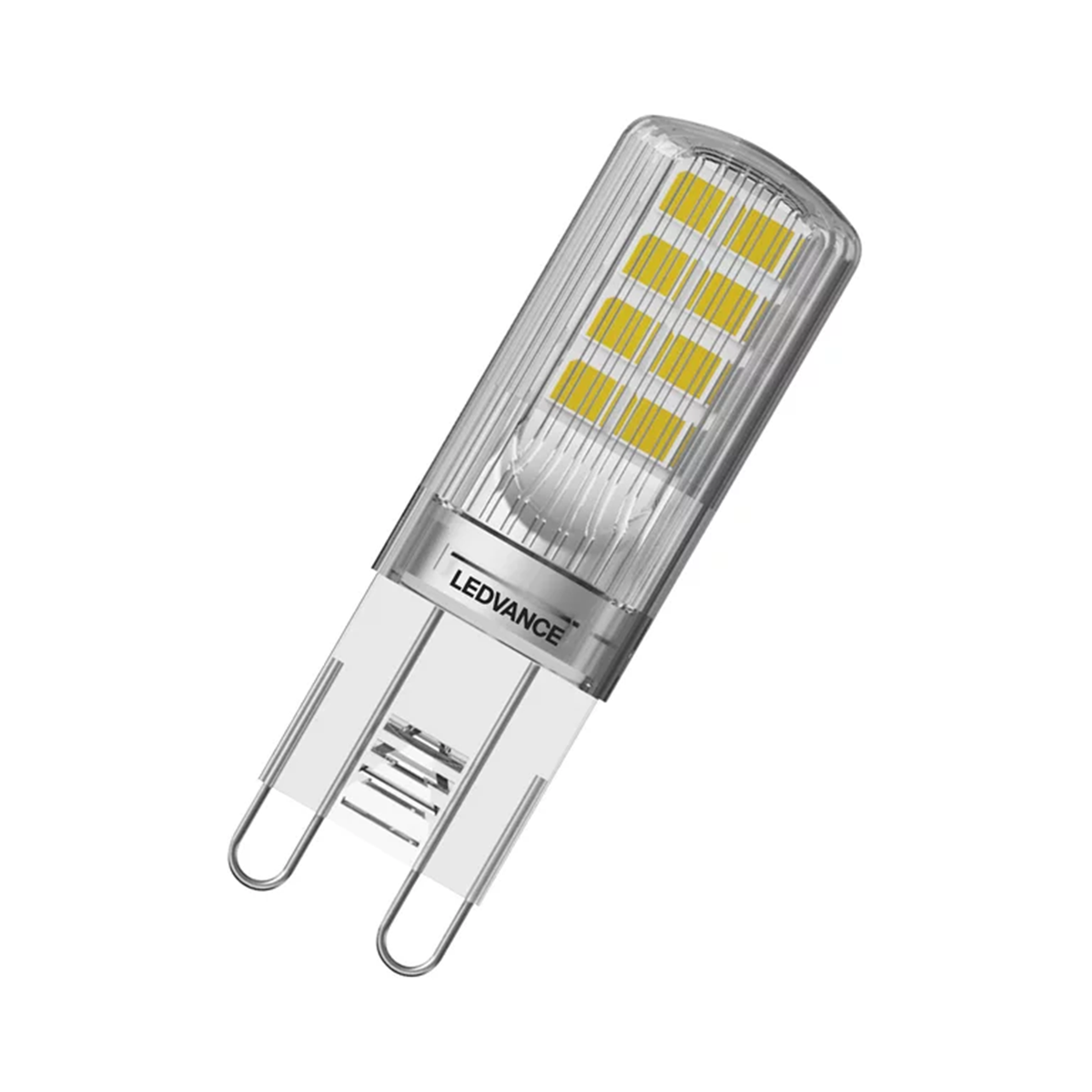

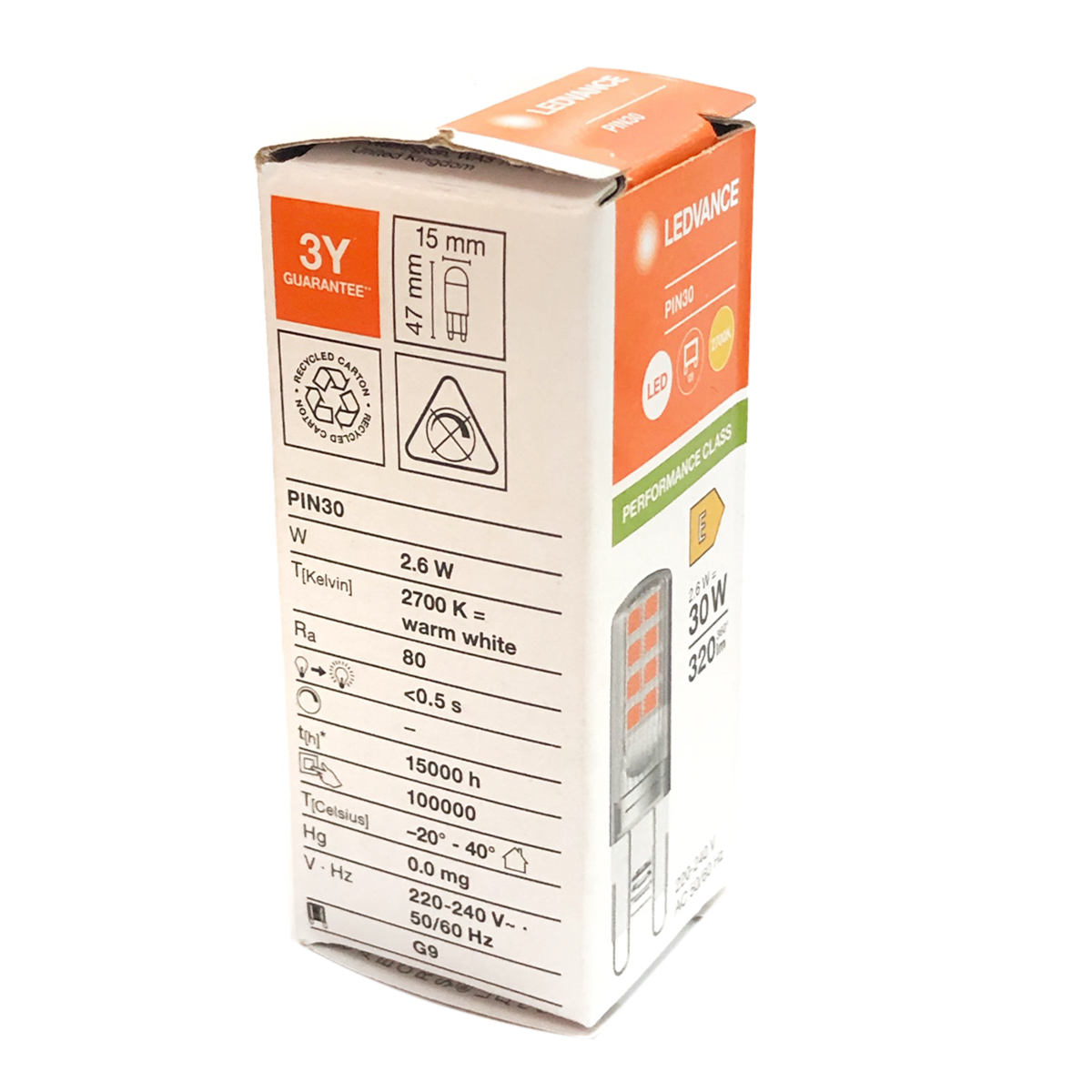

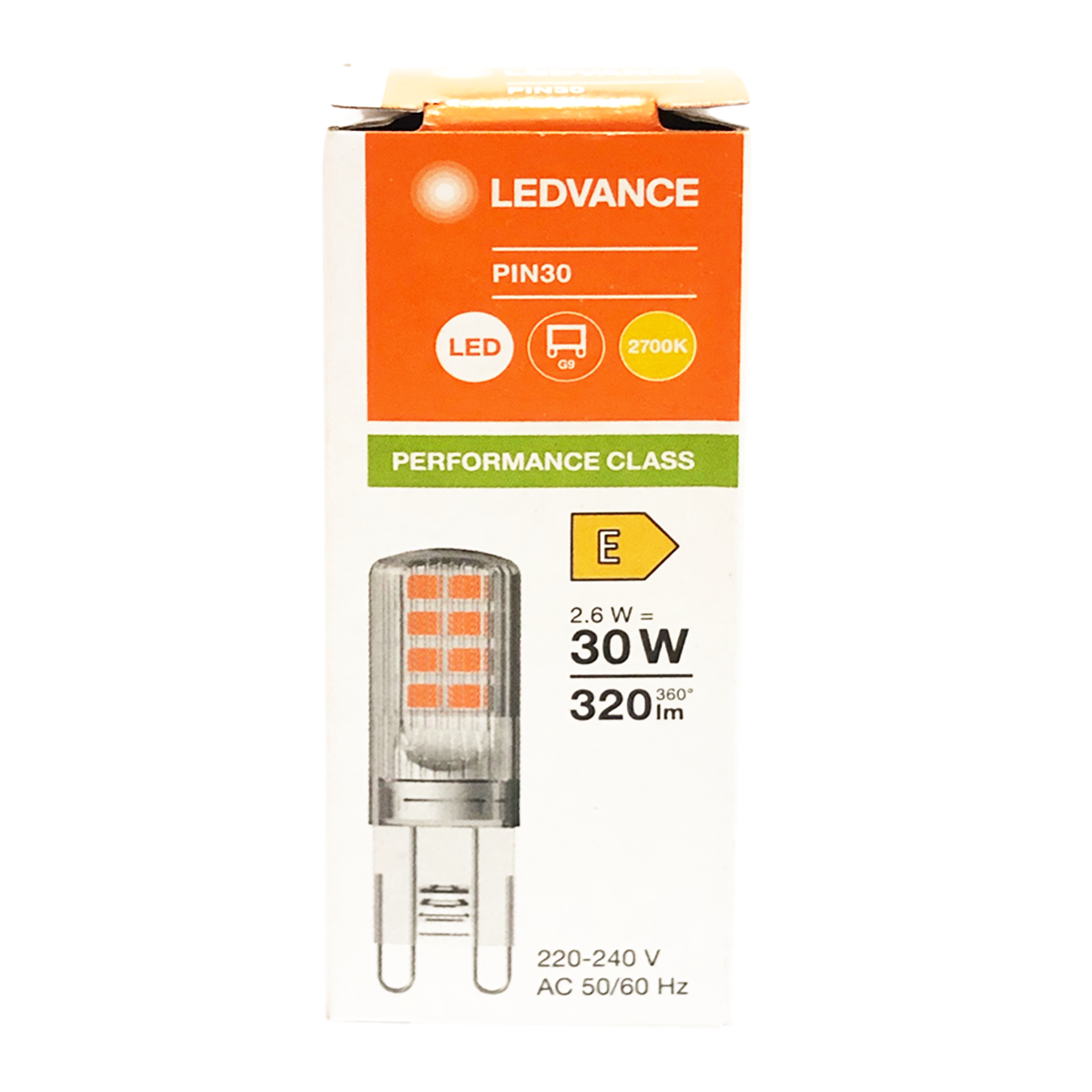

Ledvance PIN 30 LED Lamp 2.6W 2700K Warm White 827 CL Pin Base G9 220-240V AC IP20 Osram Lighting

Ledvance PIN 30 LED Lamp 2.6W 2700K Warm White 827 CL Pin Base G9 220-240V AC IP20 Osram Lighting E 4099854064548

100% Original

100% Brand New

Electrical Data:

- Nominal wattage: 2.6 W

- Construction wattage: 2.60 W

- Nominal voltage: 220-240 V

- Operating mode: AC Mains

- Claimed equiv. conventional lamp power: 30 W

- Nominal current: 23 mA

- Type of current: AC

- Inrush current: 3.06 A

- Operating frequency: 50/60 Hz

- Mains frequency: 50/60 Hz

- Max. lamp number on MCB B10 A: 41

- Max. lamp number on MCB B16 A: 52

- Total harmonic distortion: < 170 %

- Power factor λ: > 0.40

Photometrical Data:

-Luminous flux: 320 lm

-Nominal useful luminous flux 90°: 320 lm

-Luminous efficacy: 123 lm/W

-Lumen main.fact.at end of nom.life time: 0.70

-Light color (designation): Warm White

-Color temperature: 2700 K

-Color rendering index Ra: ≥80

-Light color: 827

-Standard deviation of color matching ≤6 sdcm

-Rated LLMF at 6,000 h: 0.80

-Flickering metric (Pst LM): 1.0

-Stroboscope effect metric (SVM): 0.4

Light technical Data:

- Beam angle: 300 °

- Warm-up time (60 %): ‹ 0.50 s

- Starting time: < 0.5 s

Dimensions & Weight:

- Overall length: 47.00 mm

- Diameter: 15.00 mm

- Maximum diameter: 15 mm

- Product weight: 6.00 g

Temperatures & Operating Conditions:

- Ambient temperature range: -20 - +40 °C

- Maximum temperature at tc test point: 72 °C

Lifespan:

- Lifespan L70/B50 at 25 °C: 15000 h

- Number of switching cycles: 100000

- Lumen maintenance at end of service lifetime: 0.70

- Rated lamp survival factor at 6,000 h: ≥ 0.90

Additional Product Data:

- Base (standard designation): G9

- Mercury content: 0.0 mg

- Mercury-free: Yes

- Design / version: Clear

- Dimmable: No

Certificates & Standards:

- Energy efficiency class: E 1)

- Energy consumption: 3.00 kWh/1000h

- Type of protection: IP20

- Standards: CE, EAC

- Photobiological safety group acc. to EN62778: RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Product Benefits:

- Good all-around light emission

- Long lifetime of up to 15,000 h

- Four year guarantee

- Lower energy consumption than incandescent or halogen lamps

Areas of Application:

- Atmospheric accent lighting throughout the home

- Shops, hotels and restaurants

- Outdoor use in suitable outdoor luminaires only

- Product features

- LED alternative to conventional high voltage lamps

- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity

- Safety advice

- To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
