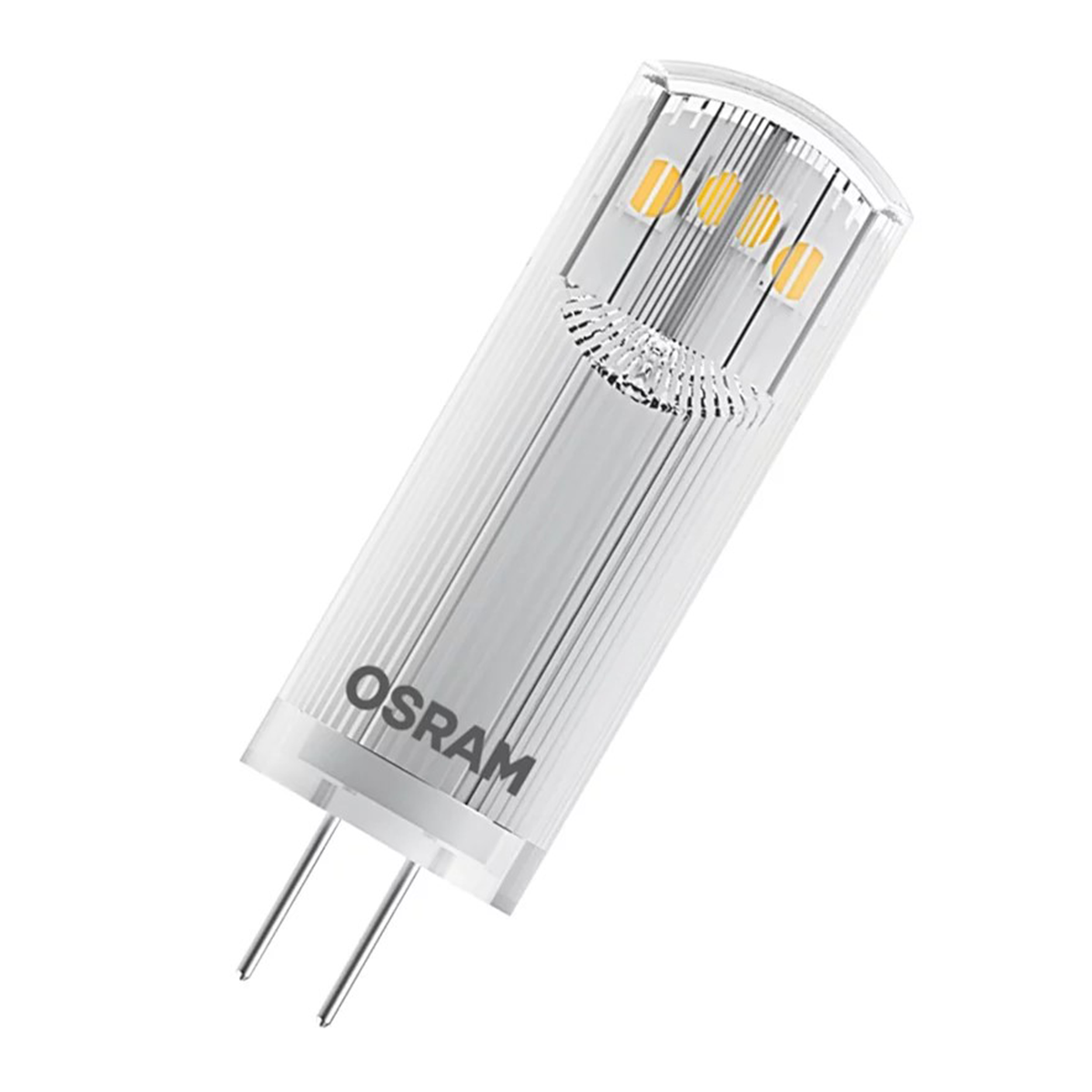

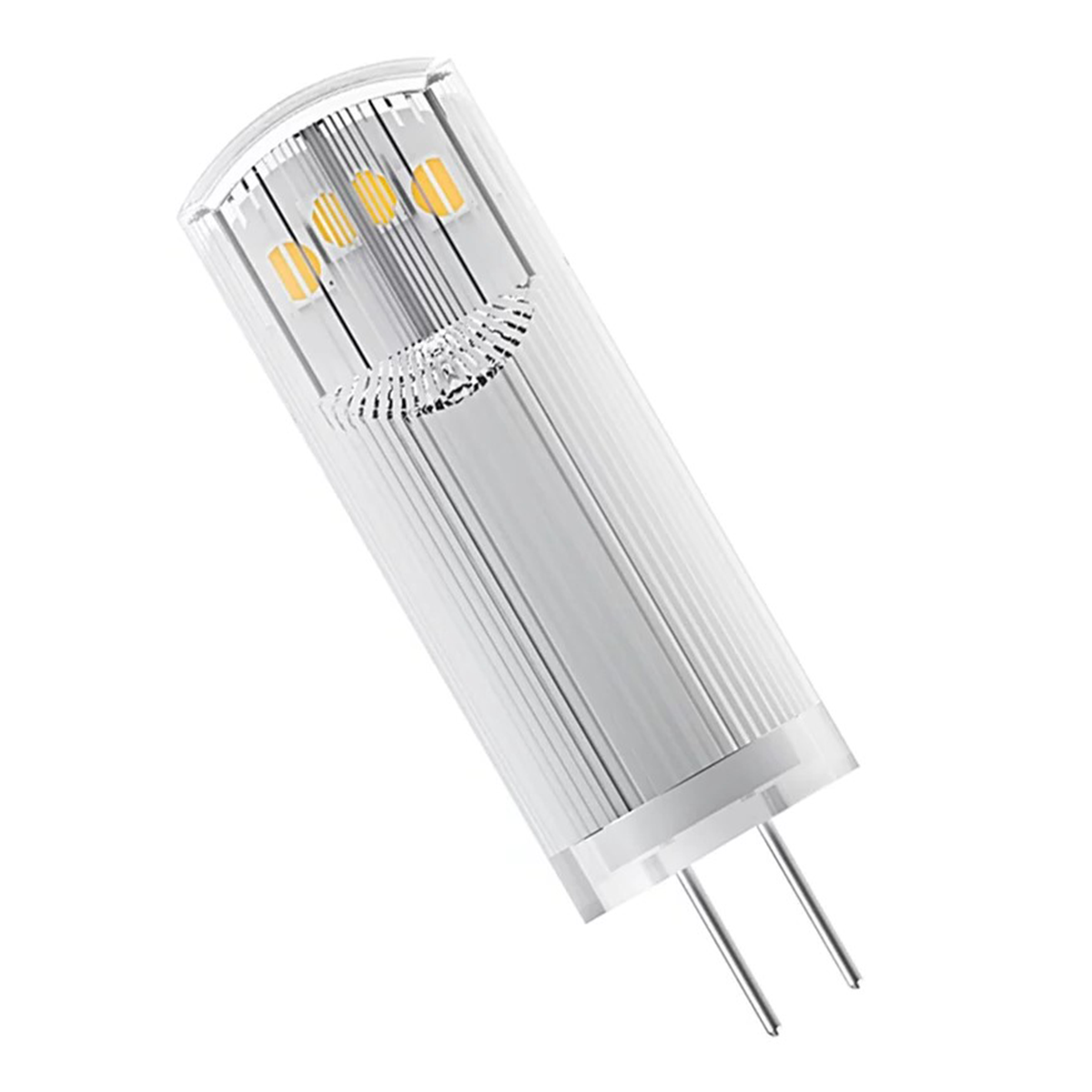

Ledvance PIN 20 LED Lamp 1.8W 2700K Warm White 827 CL G4 12V AC/DC Osram Lighting F 4099854064753

Ledvance PIN 20 LED Lamp 1.8W 2700K Warm White 827 CL G4 12V AC/DC Osram Lighting F 4099854064753

100% Original

100% Brand New

Electrical data

- Nominal wattage: 1.8 W

- Construction wattage: 1.80 W

- Nominal voltage: 12 V

- Operating mode: 12V AC/DC

- Claimed equiv. conventional lamp power: 20 W

- Nominal current: 230 mA

- Type of current: AC/DC

- Inrush current: 17.7 A

- Operating frequency: 50/60 Hz

- Mains frequency: 50/60 Hz

- Max. lamp number on MCB B10 A 33

- Max. lamp number on MCB B16 A 42

- Total harmonic distortion < 120 %

- Power factor λ > 0.50

Photometrical data

- Luminous flux: 200 lm

- Nominal useful luminous flux 90°: 200 lm

- Luminous efficacy: 11 lm/W

- Lumen main.fact.at end of nom.life time; 0.70

- Light color (designation): Warm White

- Color temperature: 2700 K

- Color rendering index Ra: ≥80

- Light color: 827

- Standard deviation of color matching ≤6 sdcm

- Rated LLMF at 6,000 h 0.80

- Flickering metric (Pst LM) 1.0

- Stroboscope effect metric (SVM) 0.4

- Beam angle 320 °

- Warm-up time (60 %) ‹ 0.50 s

- Starting time < 0.5 s

Dimensions & Weight

- Overall length: 36.00 mm

- Diameter: 13.00 mm

- Maximum diameter: 13 mm

- Product weight: 3.00 g

Temperatures & operating conditions

- Ambient temperature range -20…+40 °C

- Maximum temperature at tc test point 77 °C

Lifespan

- Lifespan L70/B50 at 25 °C 15000 h

- Number of switching cycles 100000

- Lumen maintenance at end of service lifetime 0.70

- Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

- Base (standard designation): G4

- Mercury-free:Yes

- Design / version: Clear

- Dimmable: No

Certificates & Standards

- Energy efficiency class F 1)

- Energy consumption 2.00 kWh/1000h

- Type of protection IP20

- Standards CE, EAC

- Photobiological safety group acc. to EN62778 RG1

Product benefits

- Variable use at Direct Current and Alternating Current

- Good all-around light emission

- Ideal for decorative and free-burning applications

- Long lifetime of up to 15,000 h

- Four year guarantee

- Lower energy consumption than incandescent or halogen lamps

Areas of application

- Decorative applications

- Atmospheric accent lighting throughout the home

- Shops, hotels and restaurants

- Outdoor use in suitable outdoor luminaires only
