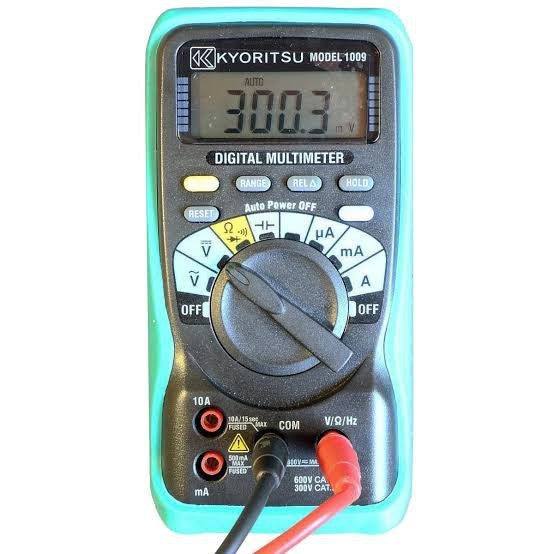

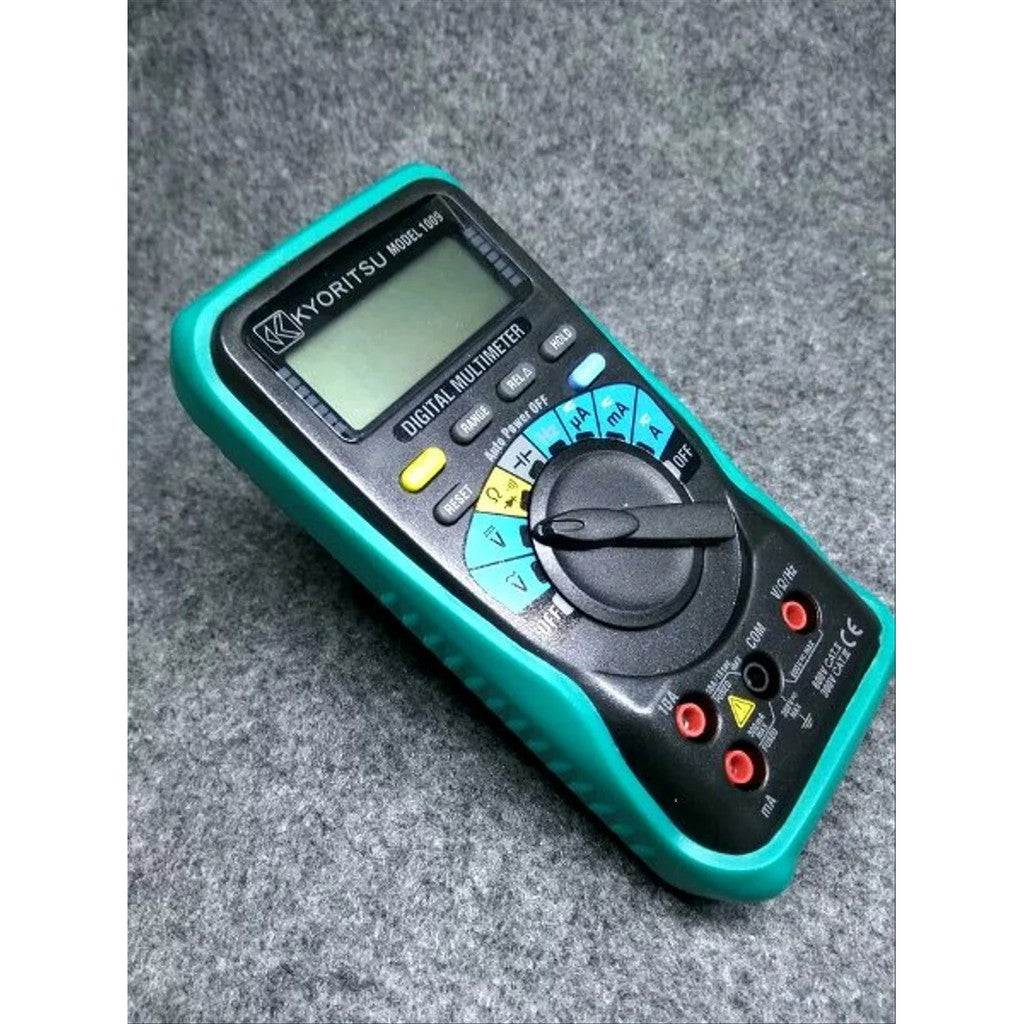

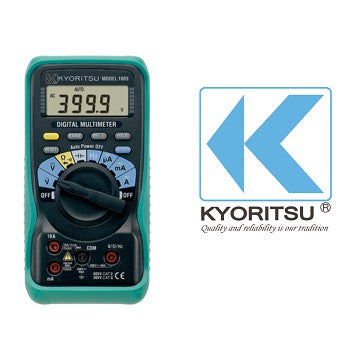

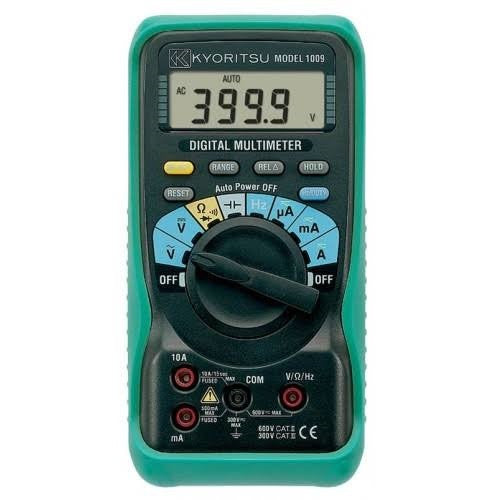

Kyoritsu Digital MultiTester MultiMeter 1009
100% ORIGINAL
100% BRAND NEW
Display : 4000 counts.
Auto range and manual range selector provided.
(with range hold feature)
Resistance range provides audible continuity test.
Automatically turns power off in about 30 minutes to conserve battery life.
Direct current measurement up to 10A AC and DC.
With Holster.
DC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V)
AC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 - 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V)
DC A 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt
(400/4000µA)±1.0%rdg±4dgt
(40/400mA) ±1.6%rdg±4dgt (4/10A)
AC A 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt
(400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A)
Ω 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ)
Continuity buzzer 400Ω (Buzzer sounds below 100Ω)
Diode test 1.5V Release Voltage:Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/100µF
Frequency 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Applicable standards
IEC 61010-1 CAT III 300V
IEC 61010-2-031
IEC 61326
Power source R6 (1.5V) × 2
Dimensions 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Included Accessories

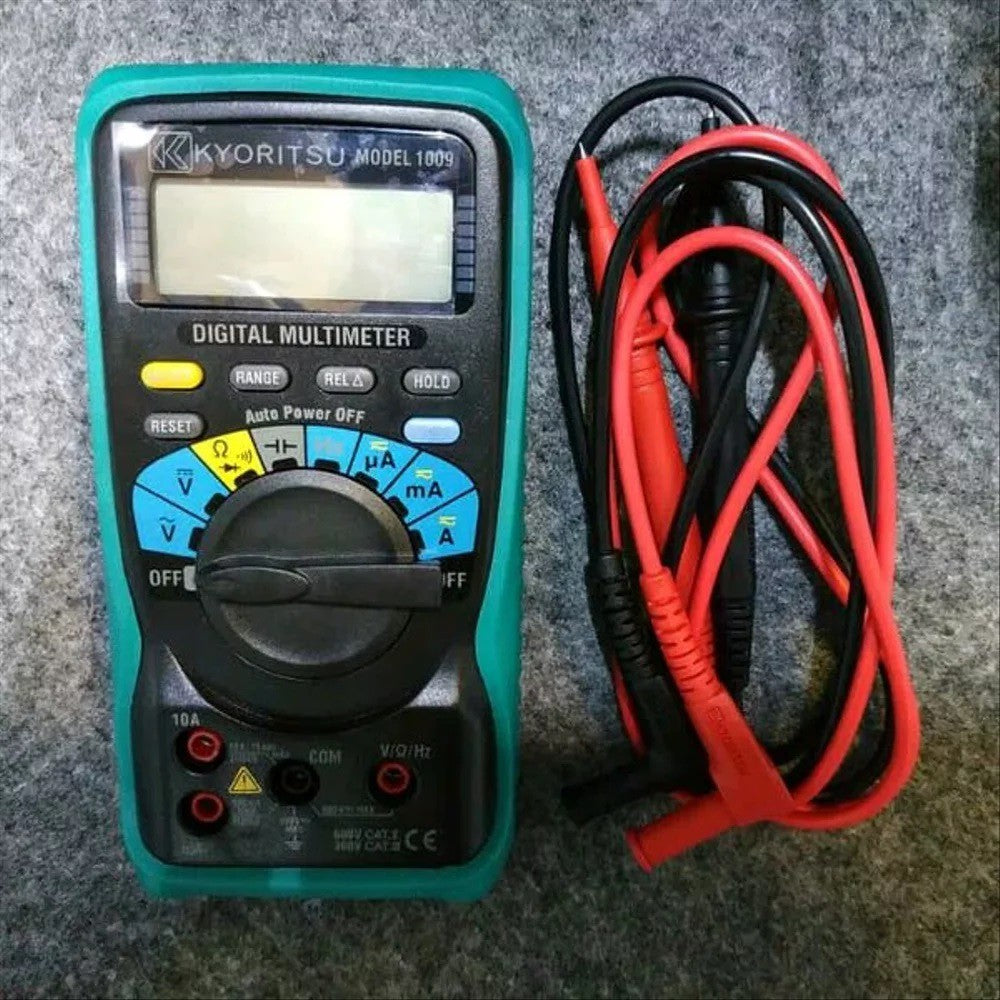

7066A (Test leads)
8919 (Ceramic fuse [10A/600V])× 1
8923 (Fuse [0.5A/600V])× 1
R6× 2
Instruction Manual
