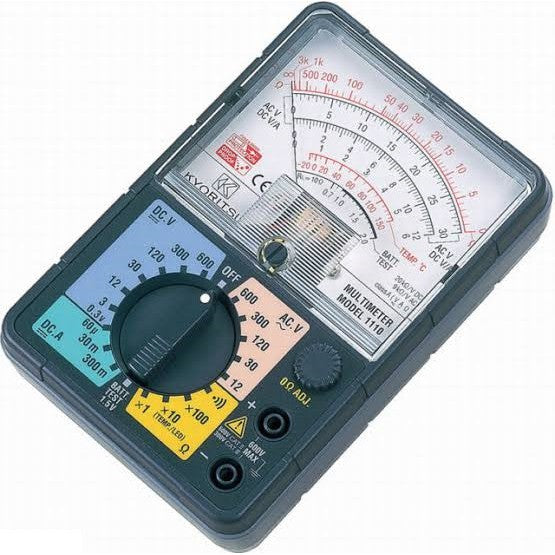

Kyoritsu Analogue Multimeters Multi testers 1110

Kyoritsu Analogue Multimeters Multi testers 1110

100% ORIGINAL

100% BRAND NEW

High sensitivity DC20kΩ/V.

1m drop-proof heavy duty designed taut-band movement.

Can measure line voltage up to AC 600V.

(Voltage to ground MAX AC300V)

(Protected by 600V ceramic fuse against accidental overload)

Continuity buzzer, battery check, LED check function.

Skeleton type robust and clear case

with carrying handle furnished as standard accessory.

DC V 0.3V (16.7kΩ/V) ±3% of FS

3/12/30/120/300/600V (20kΩ/V)

±3% of FS

AC V 12V (9kΩ/V) ±4% of FS

30/120/300/600V (9kΩ/V)

±3% of FS

DC A 60µA/30/300mA

±3% of FS

Ω 3/30/300kΩ

±3% of scale length

Continuity buzzer Buzzer sounds below 100Ω

Battery Test 1.5V (0.7 - 2V)

±3% of FS (10Ω load)

Temperature Note: The MODEL1110 includes a temperature measurement scale,

but it is not available for new customers due to the discontinue of the Temperature Probe 7060.

LED 10mA approx. at 0 Ω

(at 3V of battery voltage)

Applicable standards IEC 61010-1

CAT III 300V Pollution Degree 2

CAT II 600V Pollution Degree 2

IEC 61010-2-031

Power source R6 (AA) (1.5V) × 2

Dimensions 140(L) × 94(W) × 39(D) mm

Weight 280g approx.

Included Accessories

7066A (Test leads)

8923 (F500mA/600V fuse) × 2

R6 (AA) × 2

9103 (Carrying case)

Instruction Manual
