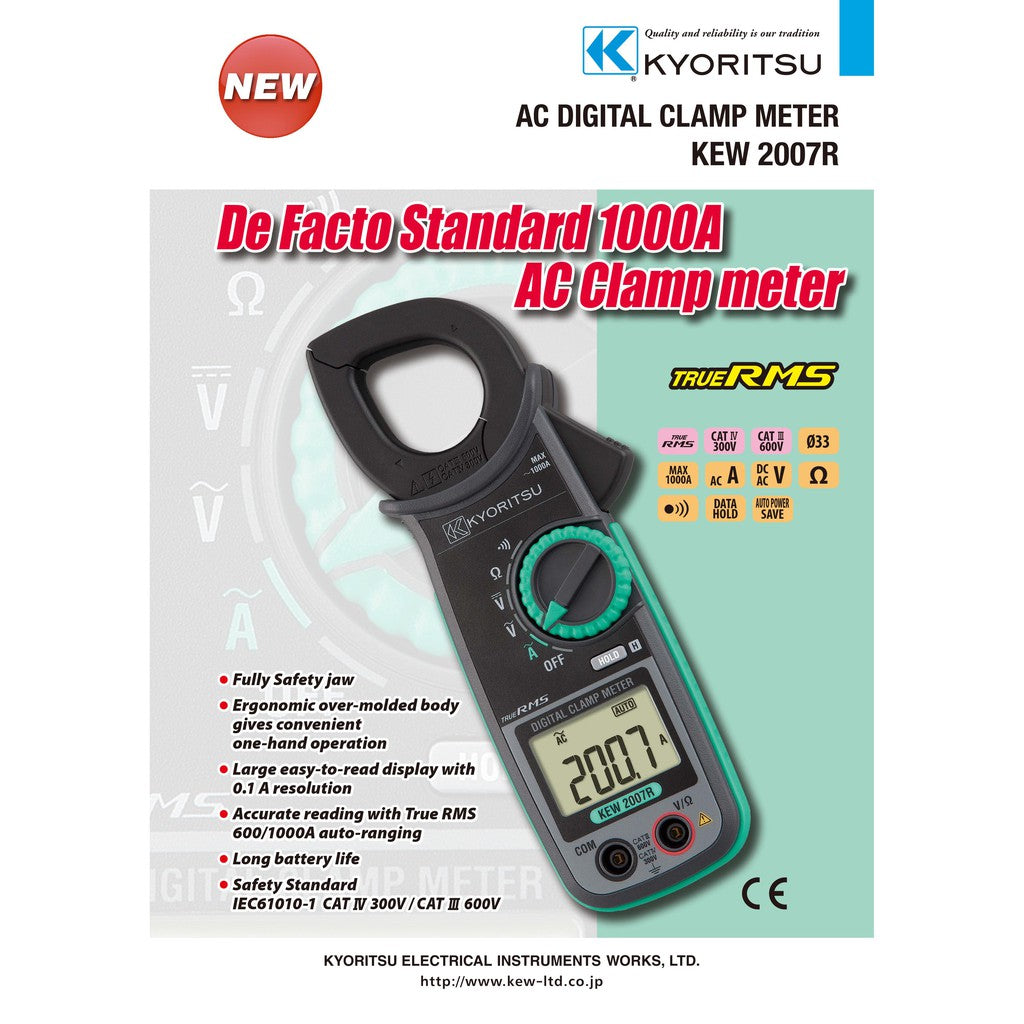

Kyoritsu AC Digital Clamp Meters KEW 2007R

Kyoritsu AC Digital Clamp Meters KEW 2007R

100% ORIGINAL

100% BRAND NEW

Fully Safety jaw

Ergonomic over-molded body gives convenient one-hand operation

Large easy-to-read display with 0.1A resolution

Accurate reading with True RMS

600/1000A auto-ranging

Long battery life

Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V

AC A    600.0/1000A (Auto-ranging)

±1.5%rdg±4dgt [45 - 65Hz]

±2.0%rdg±4dgt [40 - 400Hz]

AC V    600.0V

±1.2%rdg±3dgt [45 - 65Hz]

±1.5%rdg±4dgt [40 - 400Hz]

DC V    600.0V

±1.2%rdg±3dgt

Ω    600.0Ω/6.000kΩ (Auto-ranging)

±1.3%rdg±5dgt (600Ω)

±2.0%rdg±3dgt (6.000kΩ)

Continuity buzzer    600Ω (Buzzer sounds below 90Ω)

Conductor size    φ33mm max.

Applicable standards

IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2

IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,

IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)

Power source    R03/LR03 (AAA) (1.5V) × 2

Continuous measuring time    Approx.170 hours (when R03 is used)

(Auto power save : approx. 10 minutes)

Dimensions    204(L) × 81(W) × 36(D)mm

Weight    220g Approx. (including batteries)

Included Accessories

7066A (Test leads)

9079 (Carrying case)

R03 (AAA) × 2,

Instruction Manual
