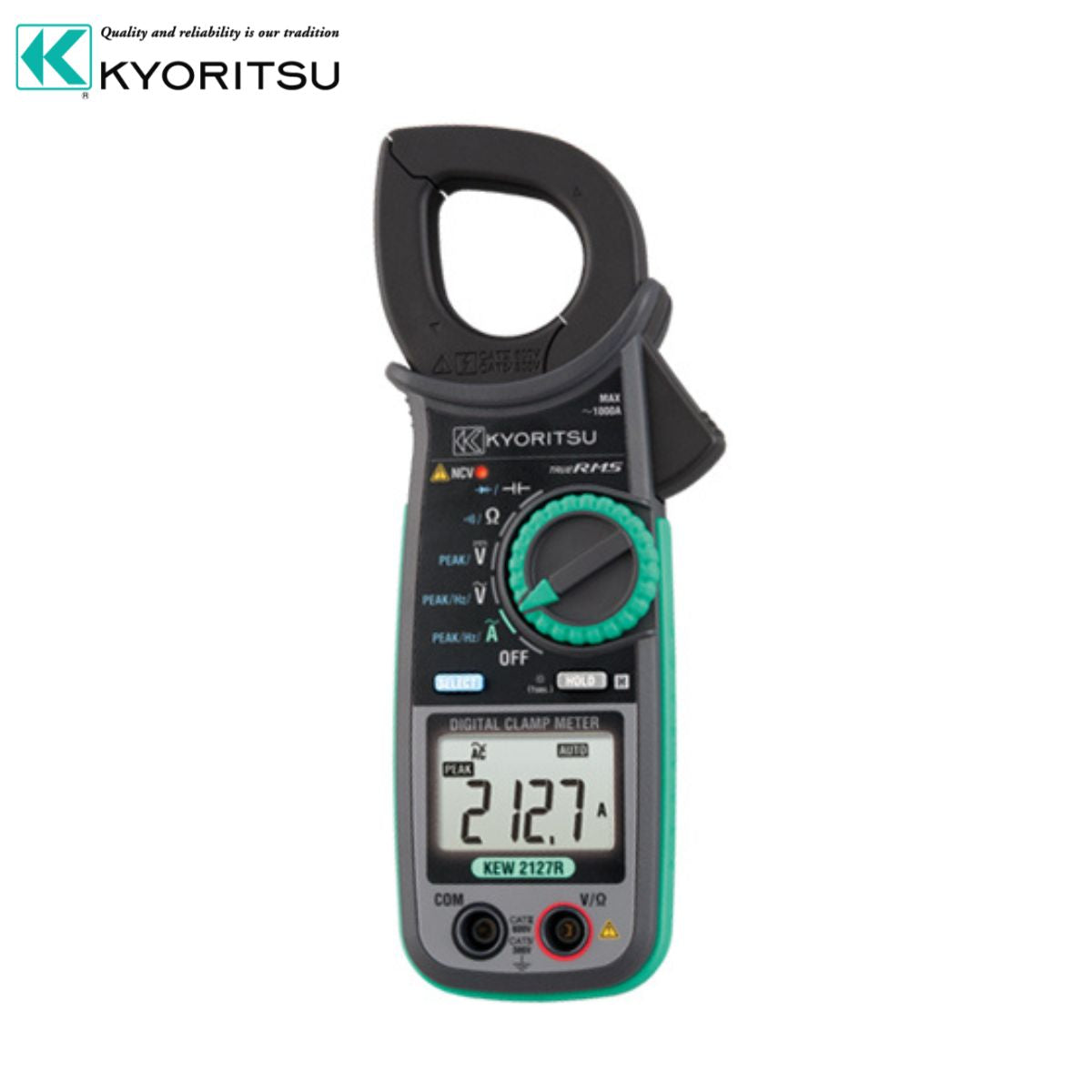

Kyoritsu 2127R AC Digital Clamp Meter Tester AC CLAMP METER KEW 2127R Accurate Reading True RMS
60/600/1000A auto-ranging
100% Original
100% Brand New
Kyoritsu Kew 2127R AC Digital Clamp Meter Tester
• Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.01A resolution
• Accurate reading with True RMS 60/600/1000A auto-ranging
• Peak Hold for inrush current
• Large display with backlight
• Capacitance and Diode test
• Long battery life
• Safety standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
• AC A
60.00/600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 to 65Hz]
±2.0%rdg±5dgt [40Hz to 1kHz]
• AC V
60.00/600.0V (Auto-ranging)
±1.0%rdg±2dgt [45 to 65Hz] (600V)
±1.5%rdg±4dgt [40Hz to 1kHz] (60/600V)
• DC V
60.00/600.0V (Auto-ranging)
±1.0%rdg±3dgt (60V)
±1.2%rdg±3dgt (600V)
• Ω
600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ(Auto-ranging)
±1.0%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6/60/600kΩ)
±3.0%rdg±3dgt (6MΩ)
±5.0%rdg±3dgt (40MΩ)
• Continuity buzzer
600Ω (Buzzer sounds below 90Ω)
• Capacitance test
1.000/10.00/100.0μF
±3.0%rdg±15dgt(1μF)
±3.0%rdg±10dgt(10/100μF)
• Diode test
2.000V ±4%rdg±5dgt
Open-circuit voltage:<3.5V
• Hz
999.9Hz/9.999kHz (Auto-ranging)
±0.1%rdg±3dgt
(Input sensitivity Current:more than 4A Voltage:more than 2V)
• Conductor size
φ33mm max.
• Dimension
204(L) × 81(W) × 36(D)mm
• Weight
Approx. 230g
• Accessories
- Test leads
- Carrying case
- Instruction Manual
