Kyoritsu 2002R AC Digital Clamp Meter Tester 2000A True RMS
100% Original
100% Brand New

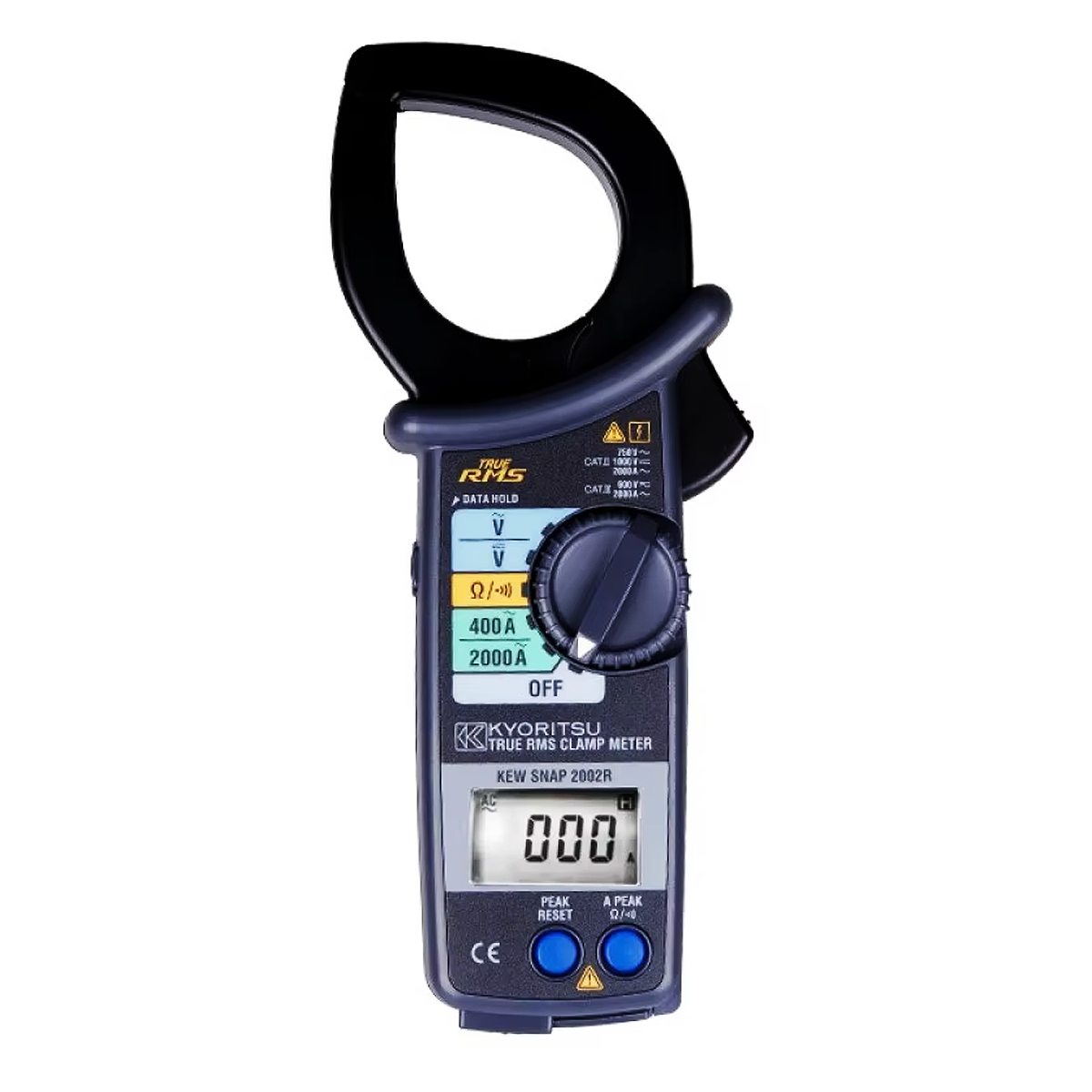

Kyoritsu 2002R AC Digital Clamp Meter
• Can measure large AC current up to 2000A
• Peak hold function
• φ55mm large tear drop shaped jaws
• Minimum resolution 0.1A
AC A
• 400A (0 - 400A)
±1.5%rdg±3dgt [45 - 65Hz]
±2.5%rdg±3dgt [40Hz - 1kHz]
• 2000A (0 - 1500A)
±2%rdg±5dgt [45 - 65Hz]
±3%rdg±5dgt [40Hz - 1kHz]
• 2000A (1500 - 2000A)
±4%rdg [50/60Hz]
AC V
• 40/400/750V
±1%rdg±2dgt [45 - 65Hz]
±1.5%rdg±3dgt [40Hz - 1kHz]
DC V
• 40/400/1000V
±1%rdg±2dgt
Ω
• 400Ω/4/40/400kΩ
±1.5%rdg±2dgt
Continuity buzzer: Buzzer sounds below 50±35Ω
Conductor size: φ55mm max.
Frequency response: 40Hz - 1kHz
Output (Recorder) :
• DC400mV against AC400A
• DC200mV against AC2000A
Safety Standard
• IEC 61010-1 CAT III 600V / CAT II 1000V
• IEC 61010-2-031 IEC 61010-2-032
Power source: R6 (AA) (1.5V) × 2
Dimension: 247(L) × 105(W) × 49(D)mm
Weight: Approx. 470g
Accessories:
• 7107A (Test leads)
• 9094 (Carrying Case)
• R6 (AA) × 2
• Instruction Manual
