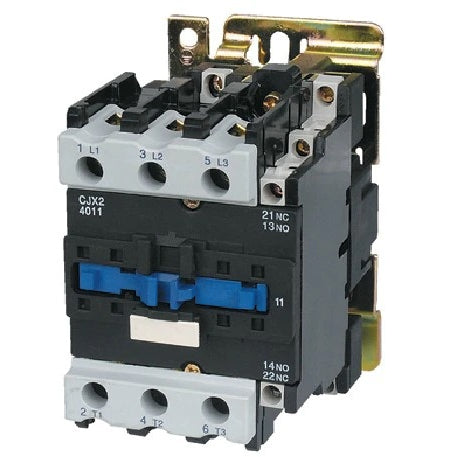

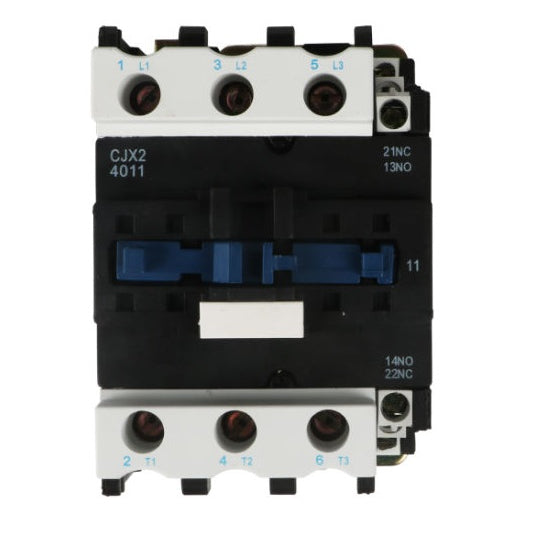

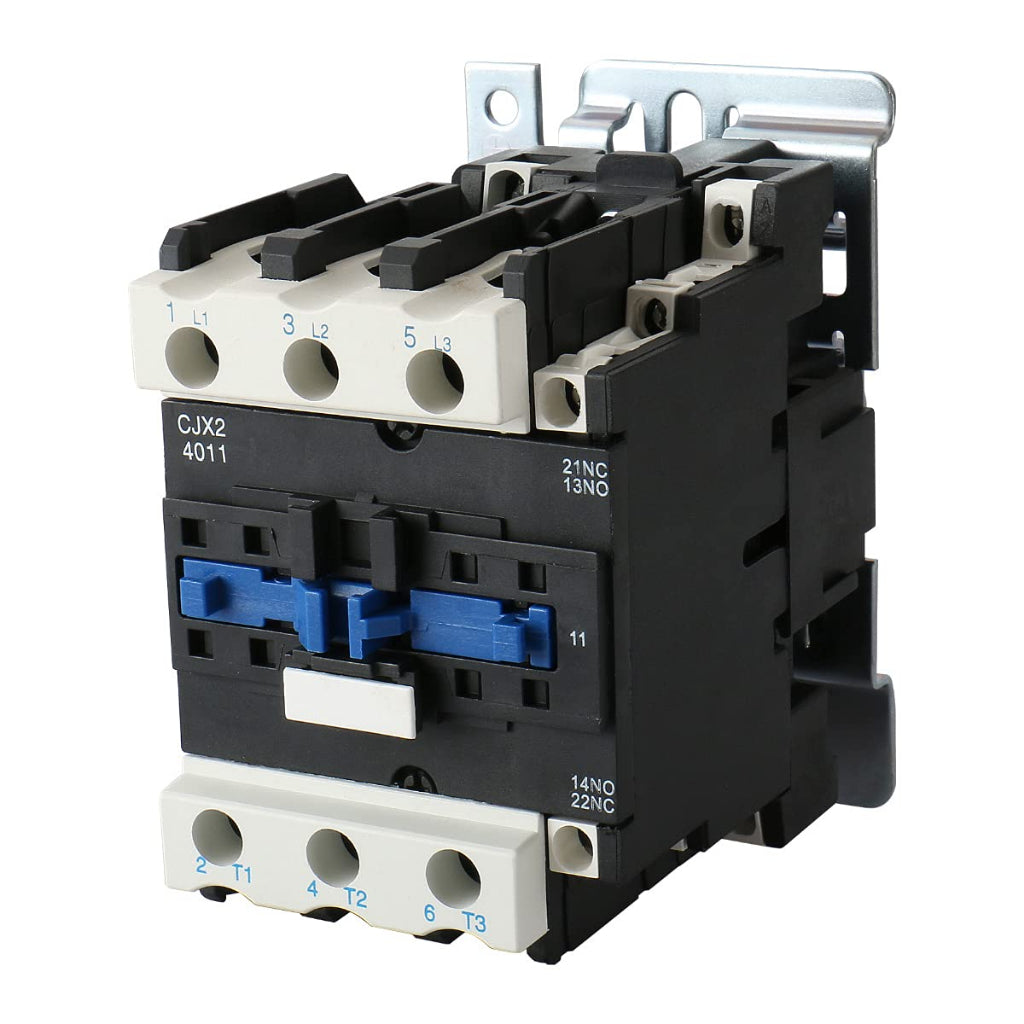

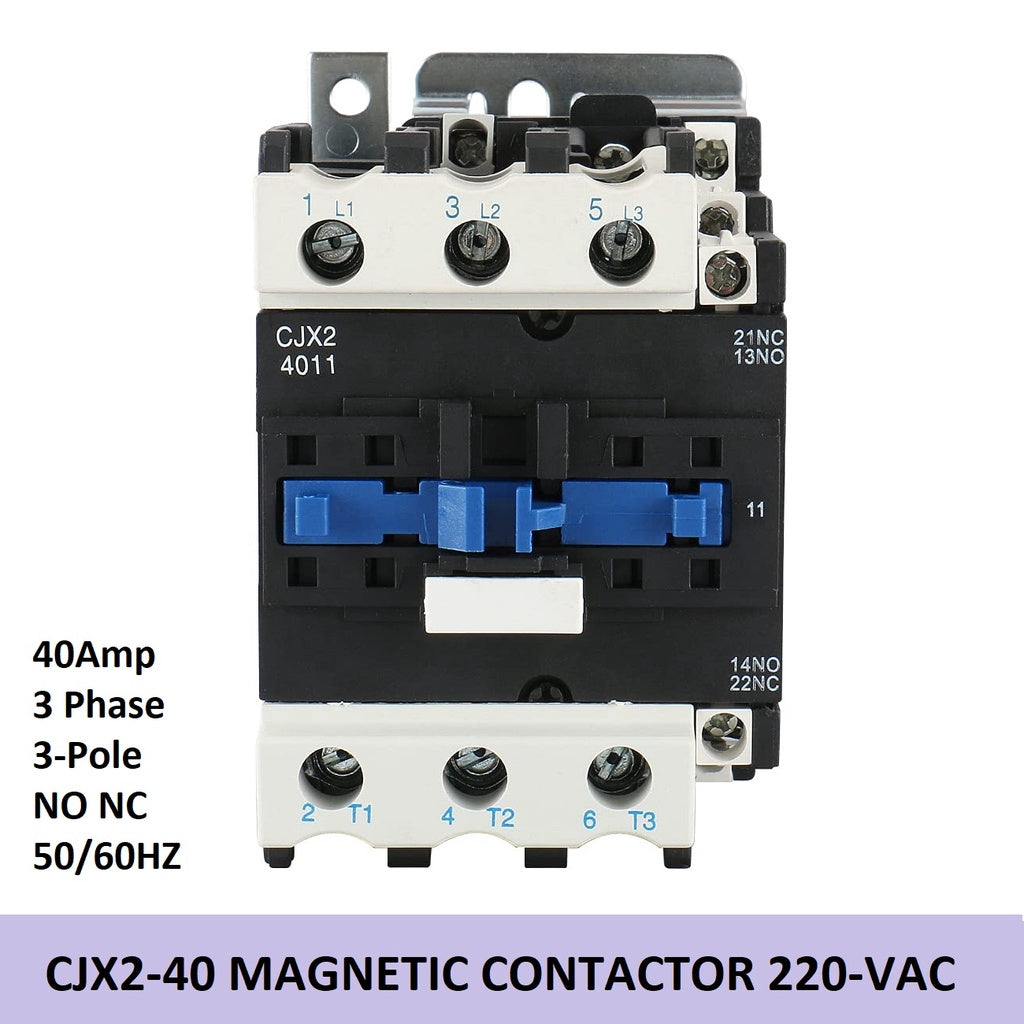

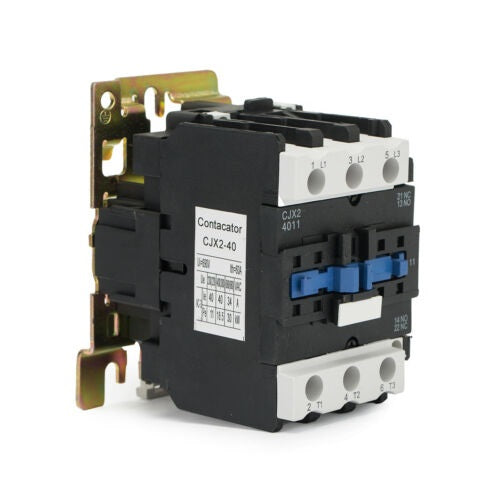

CJX2 40 Magnetic AC Contactor 220V 40A 3pole LC1D40 LC1-D40 CJX2-40

CJX2 40 Magnetic AC Contactor 220V 40A 3pole LC1D40 LC1-D40 CJX2-40

100% Brand New

Technical data:

-Item model number ‏ : ‎ CJX2-4011

- Dimensions ‏ : ‎ 5.2 x 4.8 x 3.2 inches; 2.67 Pounds

-Rating: 220 VAC; 50/60HZ

-Rated Operational Current: 40A; Number of Contact: 3P + 1 NO 1 NC.

- Conventional Thermal Current(Ith): 60A

- Voltage(Ui): 690V

- Overall Size(Approx.): 111 x 76 x 127mm / 4.37'' x 3'' x 5''(L*W*H)

- Weight: 1235g

•     It is mainly used for making or breaking electric ciucuits at a long distance,frequent starting,stopping and controlling AC motors.

•     It is used in the combination with thermal relay to compose a magnetic motor starter.
