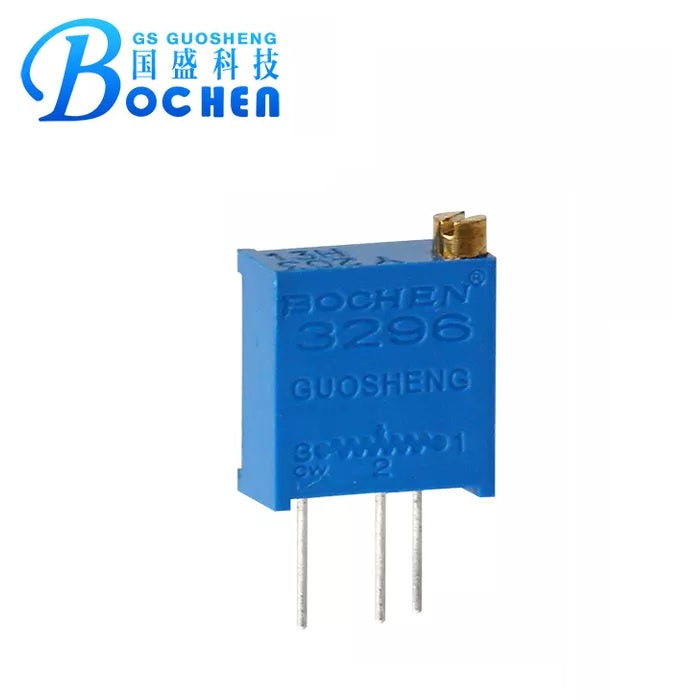

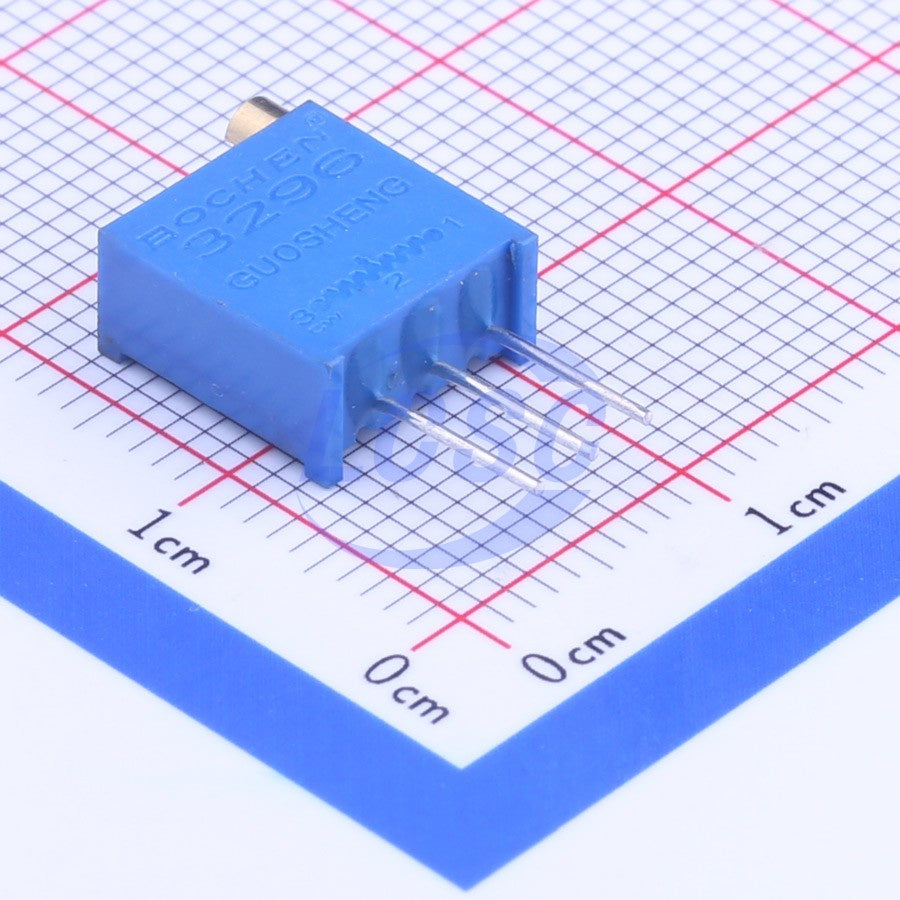

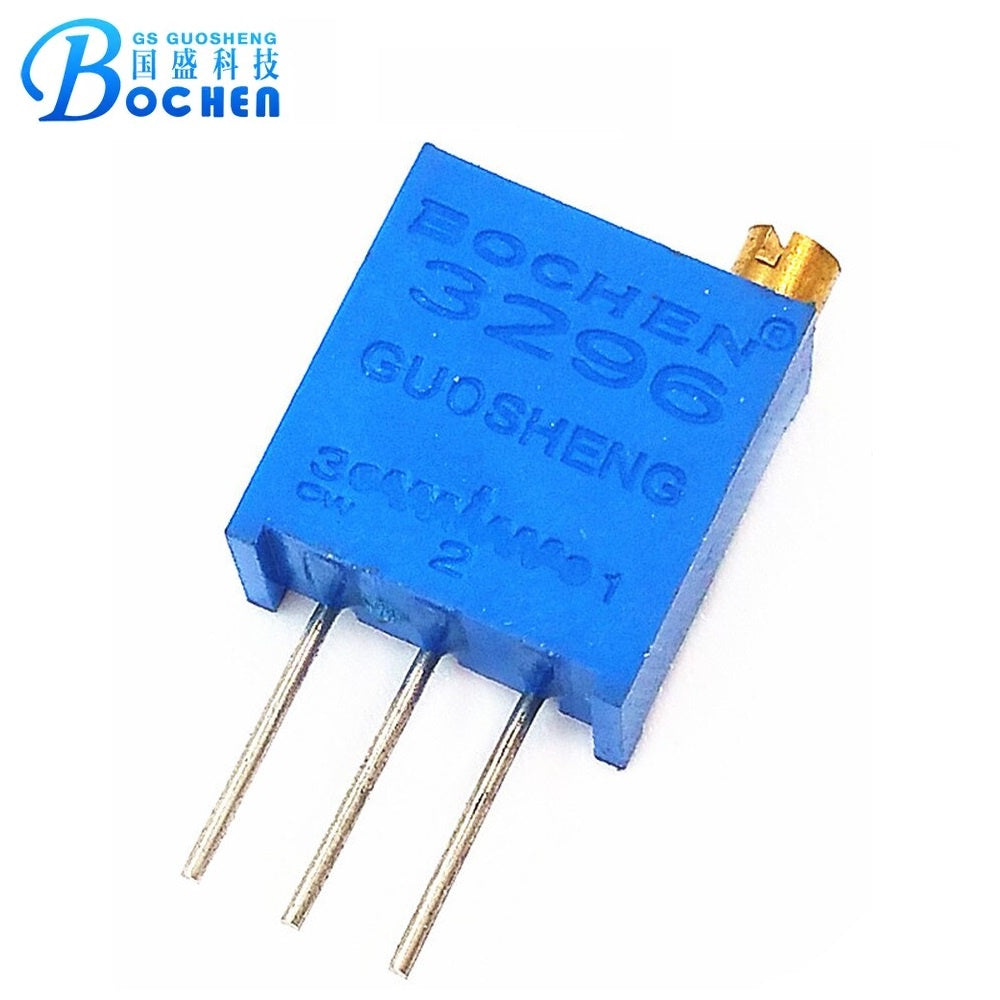

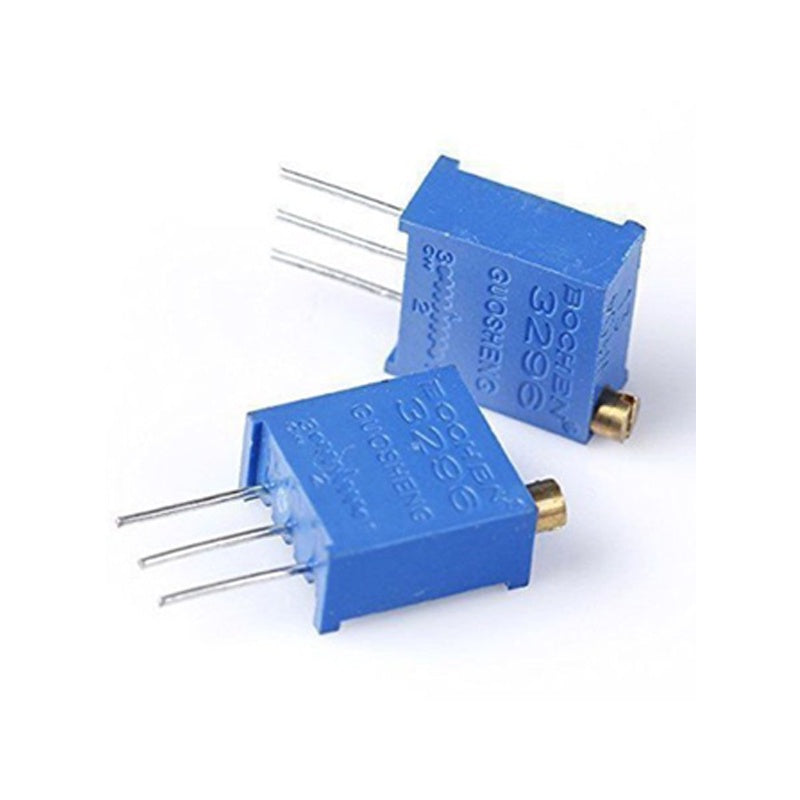

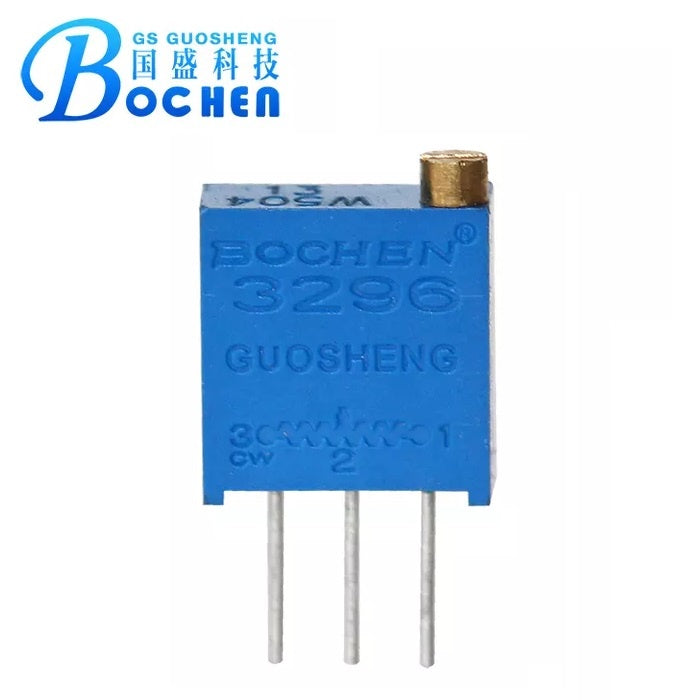

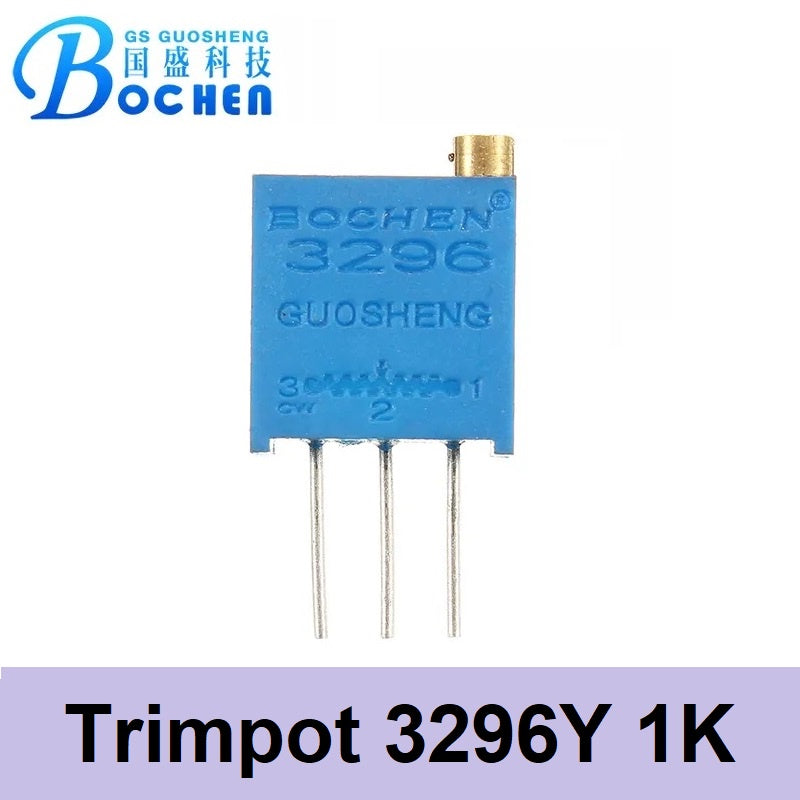

Bochen Trimpot Square 3296Y 1K Ohm Trimming Potentiometer Variable Resistor Trimpot 3296 1 KOhms 1kΩ

100% Original

100% Brand New

Standard Resistance : 1k ohms

Resistance Tolerance : ±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance : 1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation : 1.0 % or 3 ohms max.

(whichever is greater)

Adjustability Voltage : ±0.01 %

Resistance :  ±0.05 %

Resolution :  Infinite

Insulation Resistance : 500 vdc.

Dielectric Strength

Sea Level : 900 vac

70,000 Feet : 350 vac

Effective Travel : 25 turns nom.
