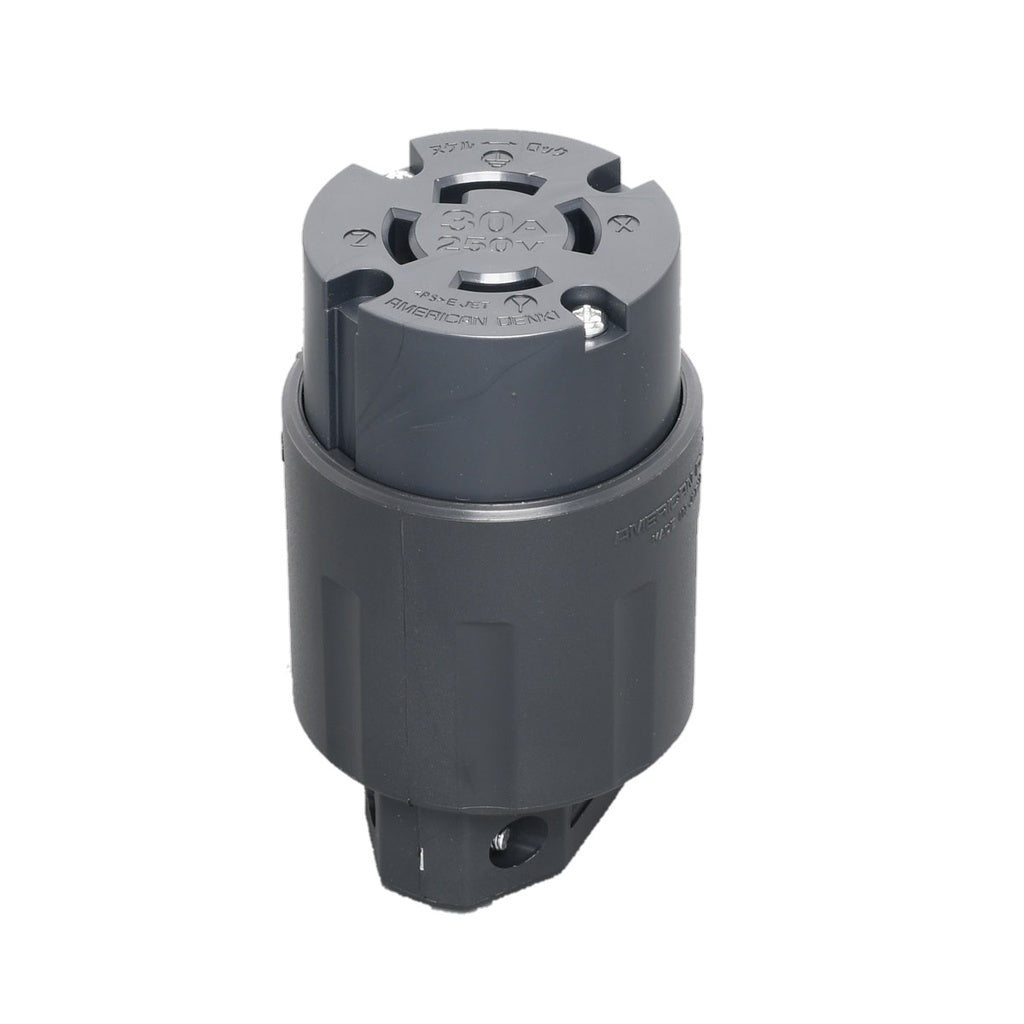

American Denki 4324N Locking Connector 30A 250V 3 Pole 4 Wire Nylon Housing

American Denki  4324N Locking Connector 30A 250V 3 Pole 4 Wire Nylon Housing

100% Original

100% Brand New

Catalog No.     4324N

Color     Black

Wire Size     2CT 5.5mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R5.5-5

Body Flammability     UL94 V-0

Weight     166.6g

Note     Nylon Housing

RoHS2 Compliant

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.

The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
