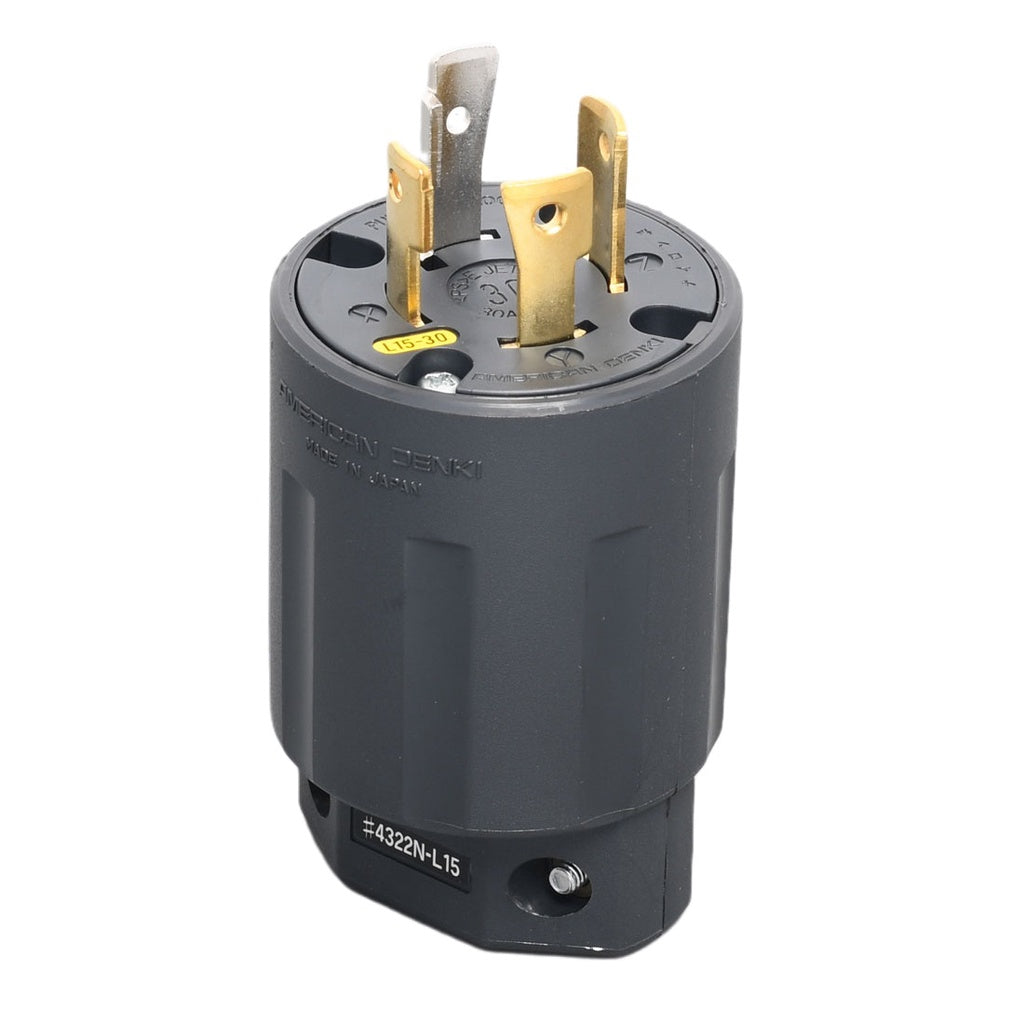

American Denki 4322N-L15 Locking Plug 30A 250V 3 Pole 4 Wire Grounding NEMA L15-30 Nylon Housing

American Denki 4322N-L15 Locking Plug 30A 250V 3 Pole 4 Wire Grounding NEMA L15-30 Nylon Housing

100% Original

100% Brand New

Catalog No.     4322N-L15

NEMA Configuration No.     NEMA L15-30

Color     Black

Wire Size     2CT 5.5mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R5.5-5

Body Flammability     UL94 V-0

Weight     136.9g

Note     Nylon Housing

RoHS2 Compliant

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.

The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
