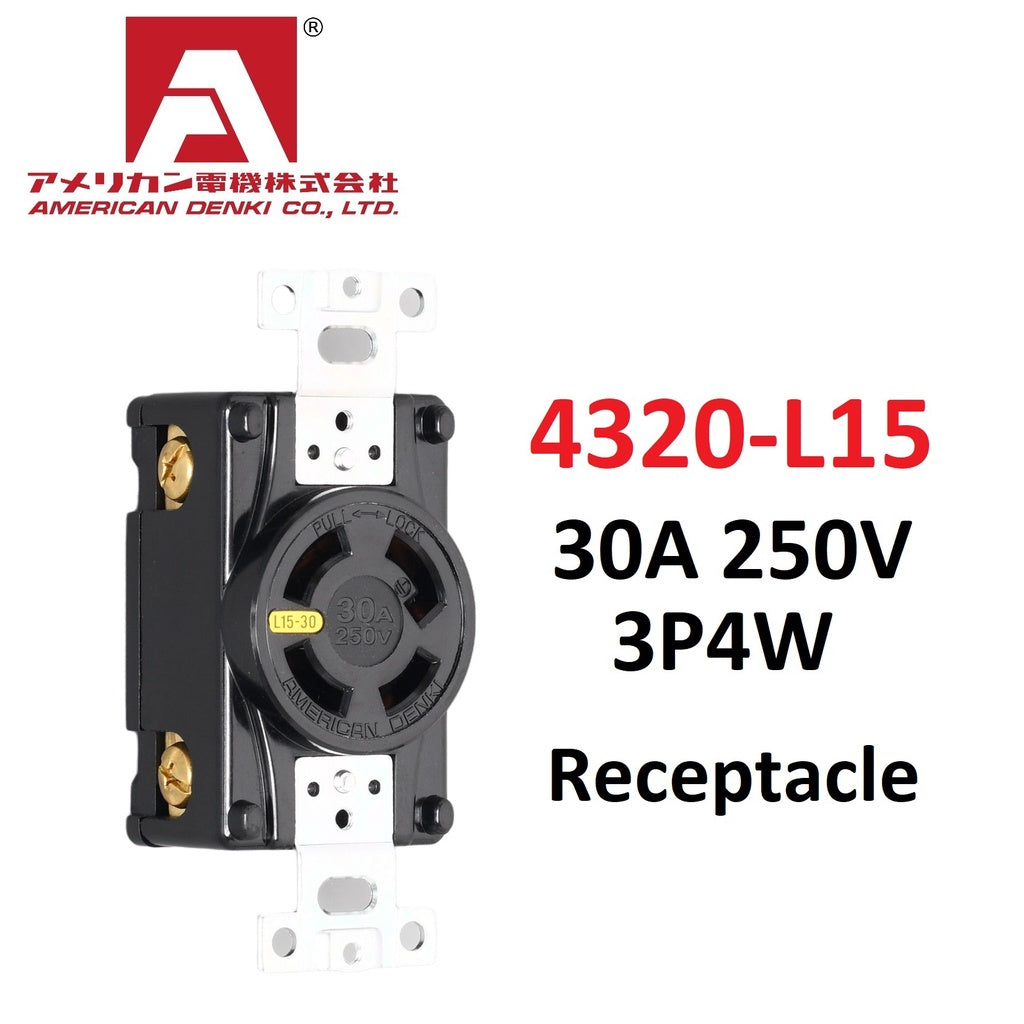

American Denki 4320-L15 Receptacle 30A 250V 3 Pole 4 Wire Grounding NEMA L15-30

American Denki 4320-L15 Receptacle 30A 250V 3 Pole 4 Wire Grounding NEMA L15-30

100% Original

100% Brand New

Catalog No.     4320-L15

NEMA Configuration No.     NEMA L15-30

Color     Black

Wire Size     2.6φ~3.2φ, 5.5mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R5.5-5

Body Flammability     UL94 V-0

Weight     159.0g

Note     RoHS2 Compliant

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.

The material of the main body is made of thermosetting resin excellent in durable and insulation properties.

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
