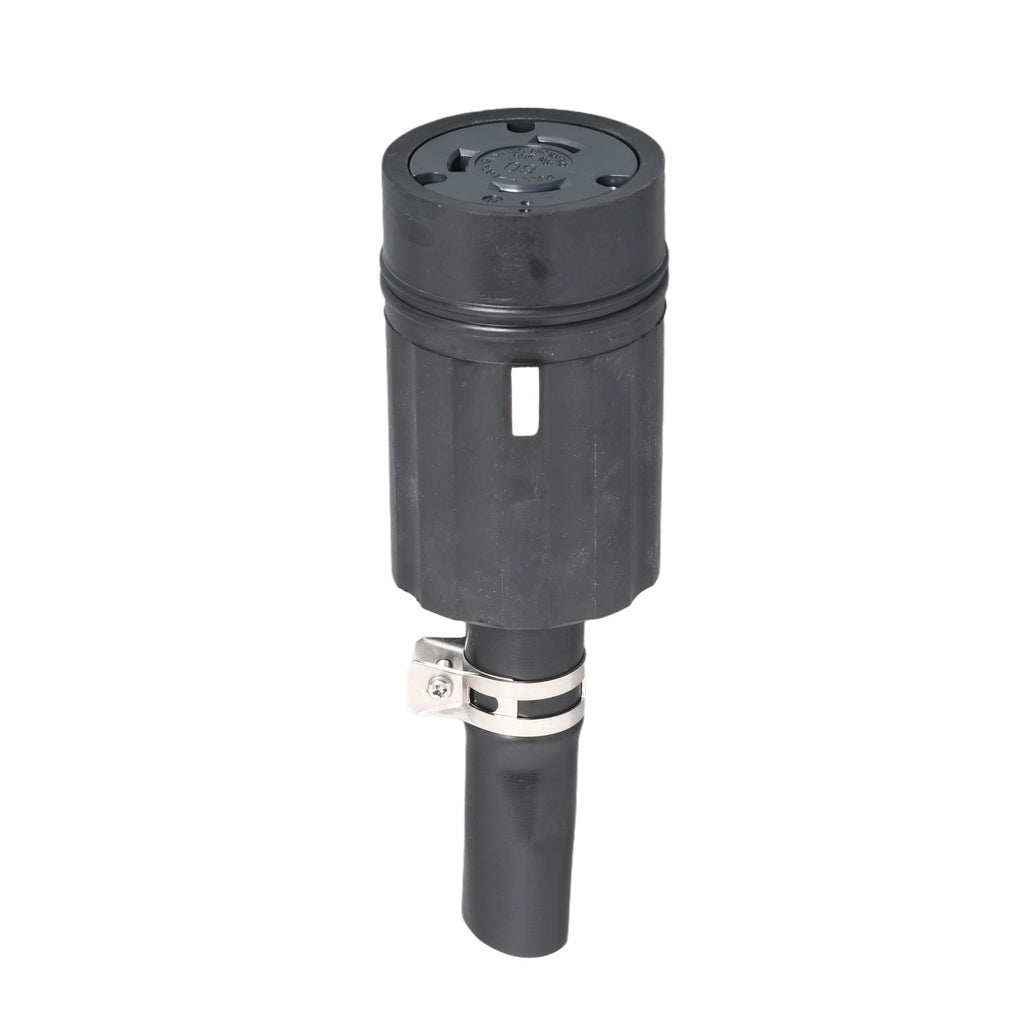

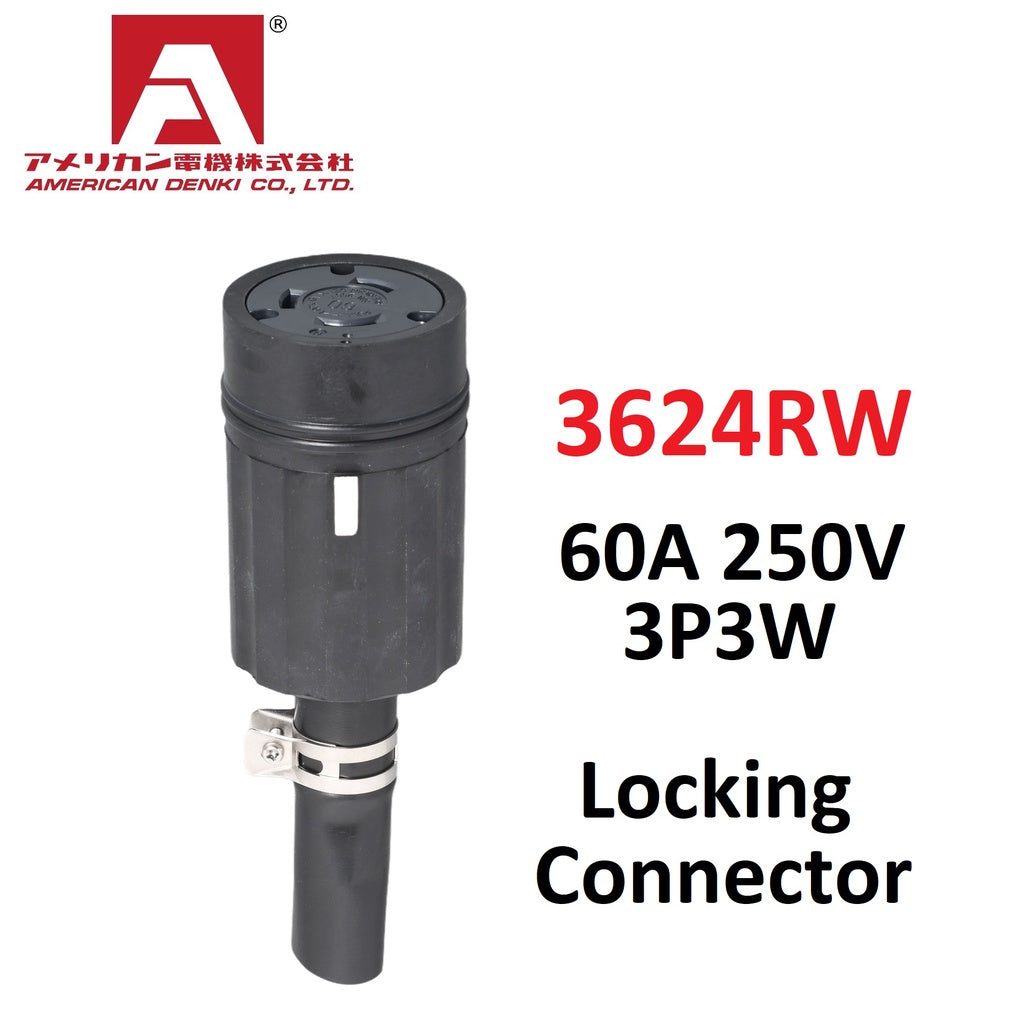

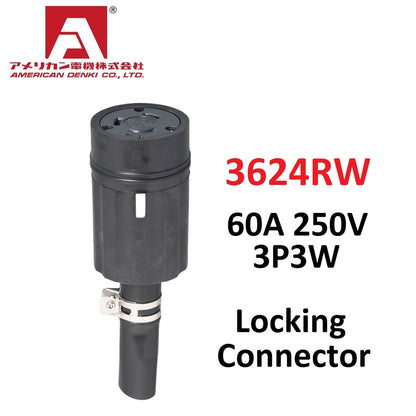

American Denki 3624RW Locking Connector 60A 250V 3 Pole 3 Wire Rubber Housing

American Denki 3624RW Locking Connector 60A 250V 3 Pole 3 Wire Rubber Housing

100% Original

100% Brand New

Catalog No.     3624RW

Twist Locking

Waterproof IP Rating     IP65 Equivalent Product

Color     Black

Wire Size     2CT/VCT 14mm²

Connectivity     Crimping Terminal

Crimp Terminal     R14-6

Body Flammability     UL94 V-0

Weight     458.0g

Note     Rubber Housing

RoHS2 Compliant

Connector Body is the portable relay receptacle which is provided with means for attachment to a flexible cord and which is not intended for permanent mounting, and is used to connect to an inlet for receiving power and to supply power.

The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances, and the housing is made of high grade chloroprene rubber excellent in weather resistance and durability.

By combining with a waterproof plug (3622RW) or a waterproof flanged inlet (3625RW), it is possible to obtain dust proof and waterproof performance.

Connectivity is "crimp terminal" tightening the terminal screw (double sems) on the side. By covering the cable entry with a insulation cover (heat shrinkable type), waterproof performance can be improved.

*Although this product is a waterproof type instrument, it can be combined with any non-waterproof type instrument such as the 3622R (waterproof performance will be lost).
