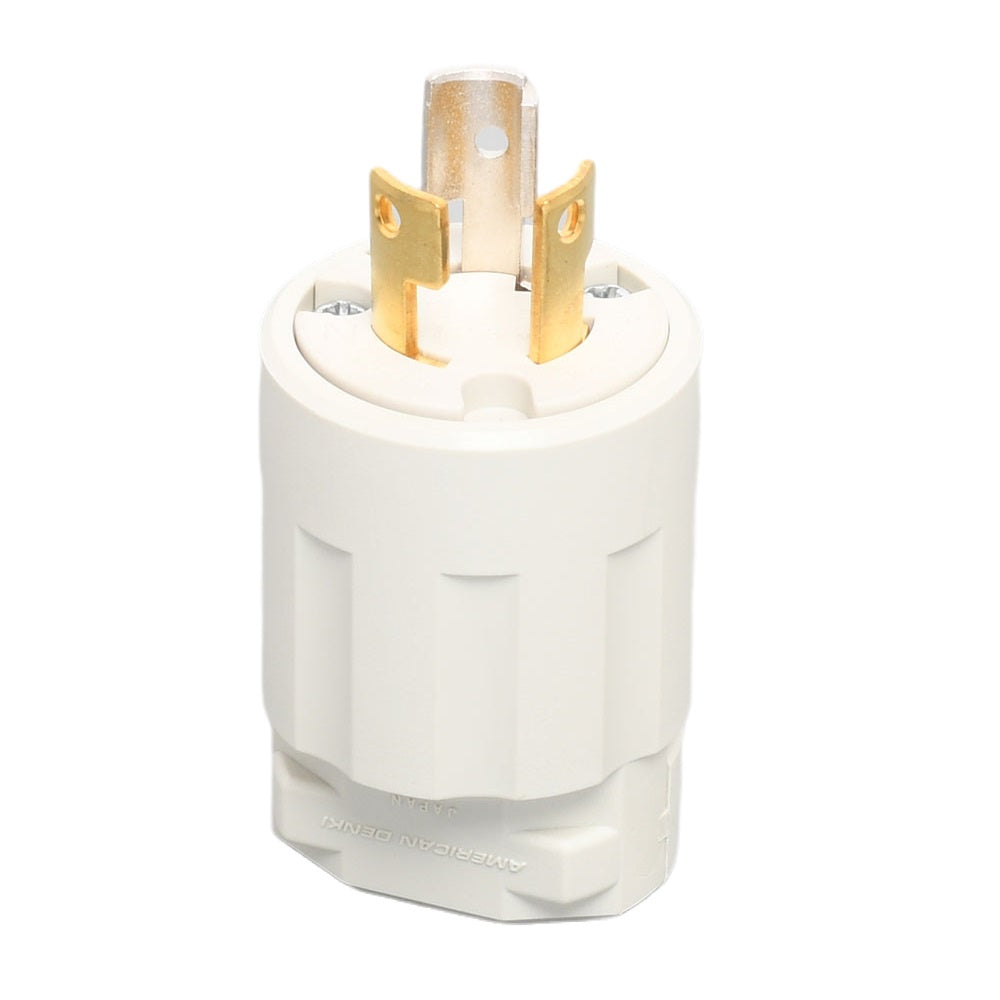

American Denki 3212N-L5 Locking Plug 20A 125V NEMA L5-20 2 Pole 3 Wire Nylon Housing White

American Denki 3212N-L5 Locking Plug 20A 125V NEMA L5-20 2 Pole 3 Wire Nylon Housing White

100% Original

100% Brand New

Catalog No.     3212N-L5-IV

NEMA Configuration No.     NEMA L5-20

Color     White

Wire Size     2PNCT/VCT 3.5mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R3.5-4

Body Flammability     UL94 V-0

Weight     70.8g

Note     Nylon Housing

RoHS2 Compliant

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.

The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
