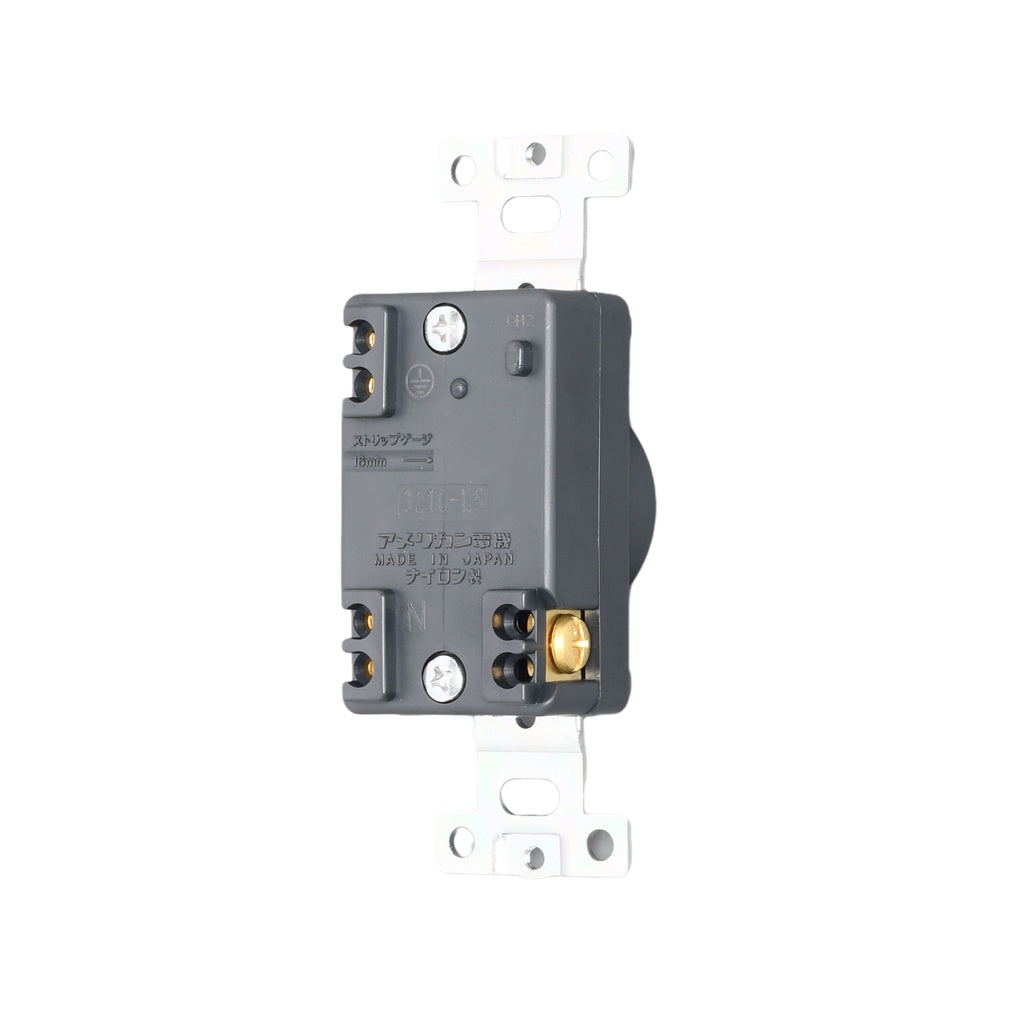

American Denki 3210-L5 Locking Outlet 20A 125V NEMA L5-20 2 Pole 3 Wire Receptacle

American Denki 3210-L5 Locking Outlet 20A 125V NEMA L5-20 2 Pole 3 Wire Receptacle

100% Original

100% Brand New

Catalog No. 3210-L5

NEMA Configuration No. NEMA L5-20

Color Black

Wire Size 2φ~2.6φ, 3.5mm²

Connectivity Crimping Terminal, Push-in-screw Terminal

Crimp Terminal R3.5-4

Body Flammability UL94 V-0

Weight 75.5g

Note RoHS2 Compliant

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.

The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
