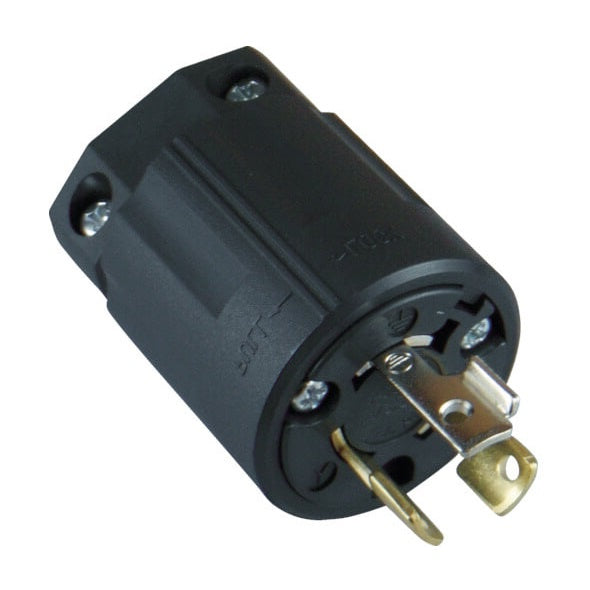

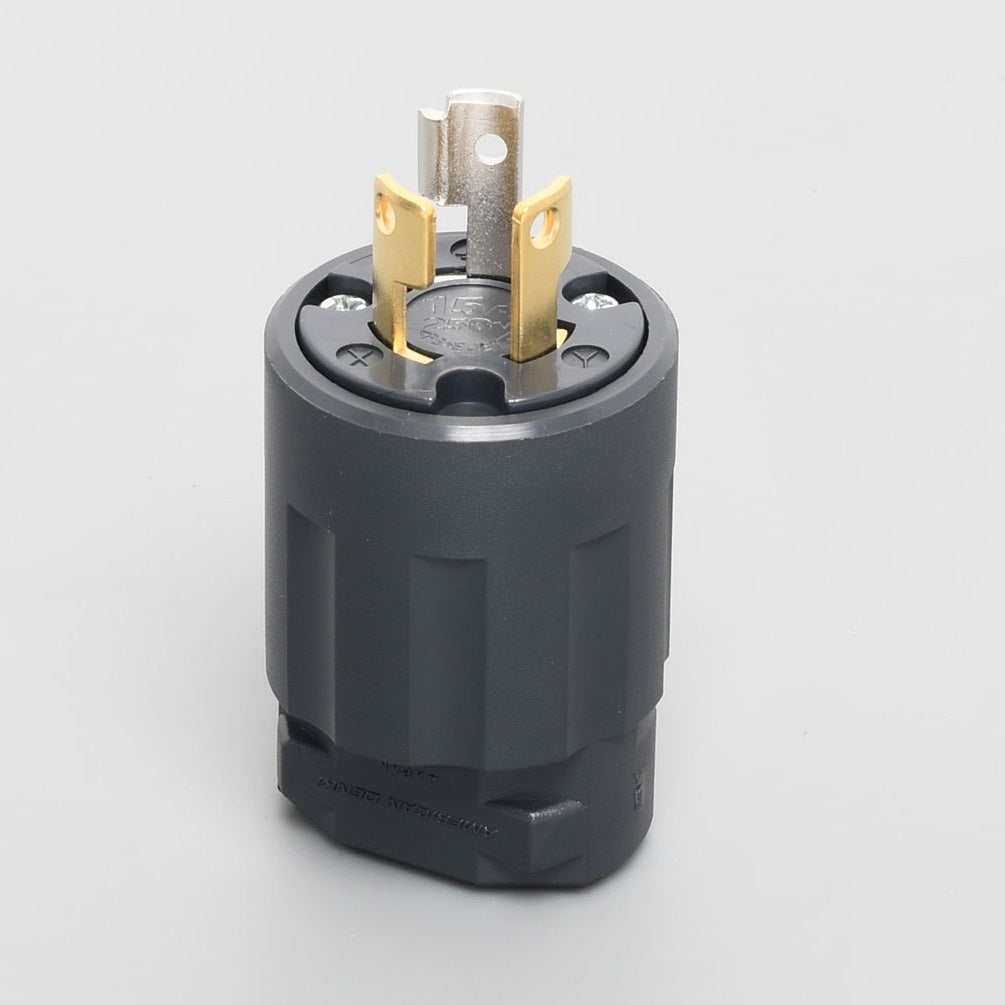

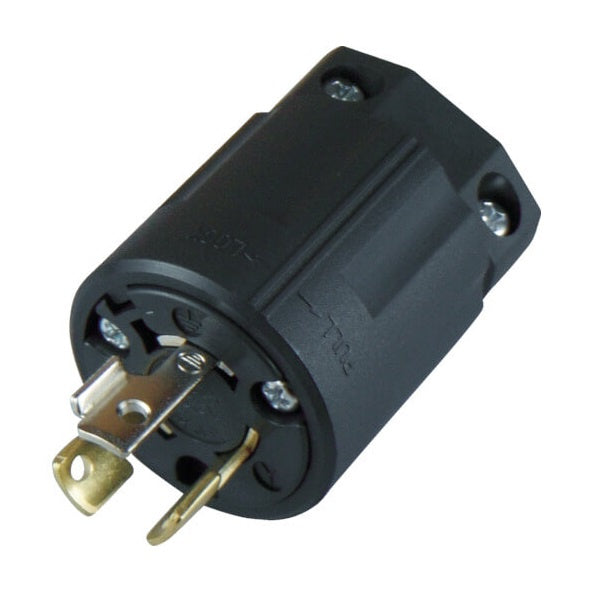

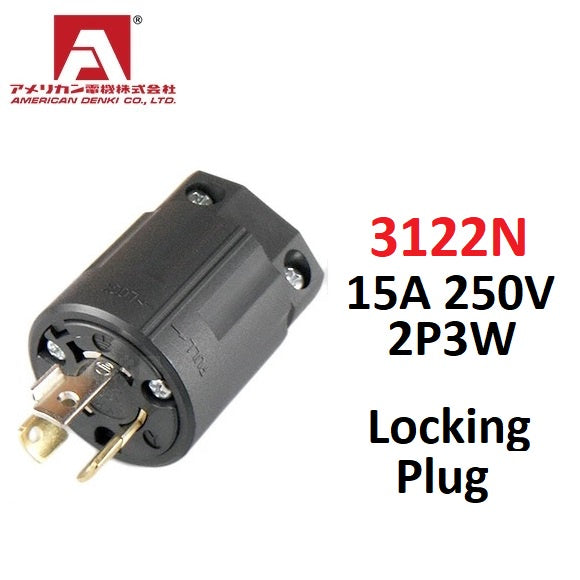

American Denki 3122N Locking Plug 15A 250V 2 Pole 3 Wire Rubber Housing Twist Locking Grounding Plug

American Denki 3122N Locking Plug 15A 250V 2 Pole 3 Wire Rubber Housing Twist Locking Grounding Plug

Arnaizph

SKU:A36-0052

Regular price ₱575.00
Regular price ₱1,150.00 Sale price ₱575.00
50% OFF Sold out
Shipping calculated at checkout.

American Denki 3122N Locking Plug 15A 250V 2 Pole 3 Wire Rubber Housing Twist Locking Grounding Plug


100% Original

100% Brand New


NEMA Configuration No.     NEMA L6-15

Color     Black

Wire Size     2CT/VCT 2mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R2-4

Body Flammability     UL94 V-0

Weight     60.5g

Note     Nylon Housing

RoHS2 Compliant


Features :

Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.

The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
