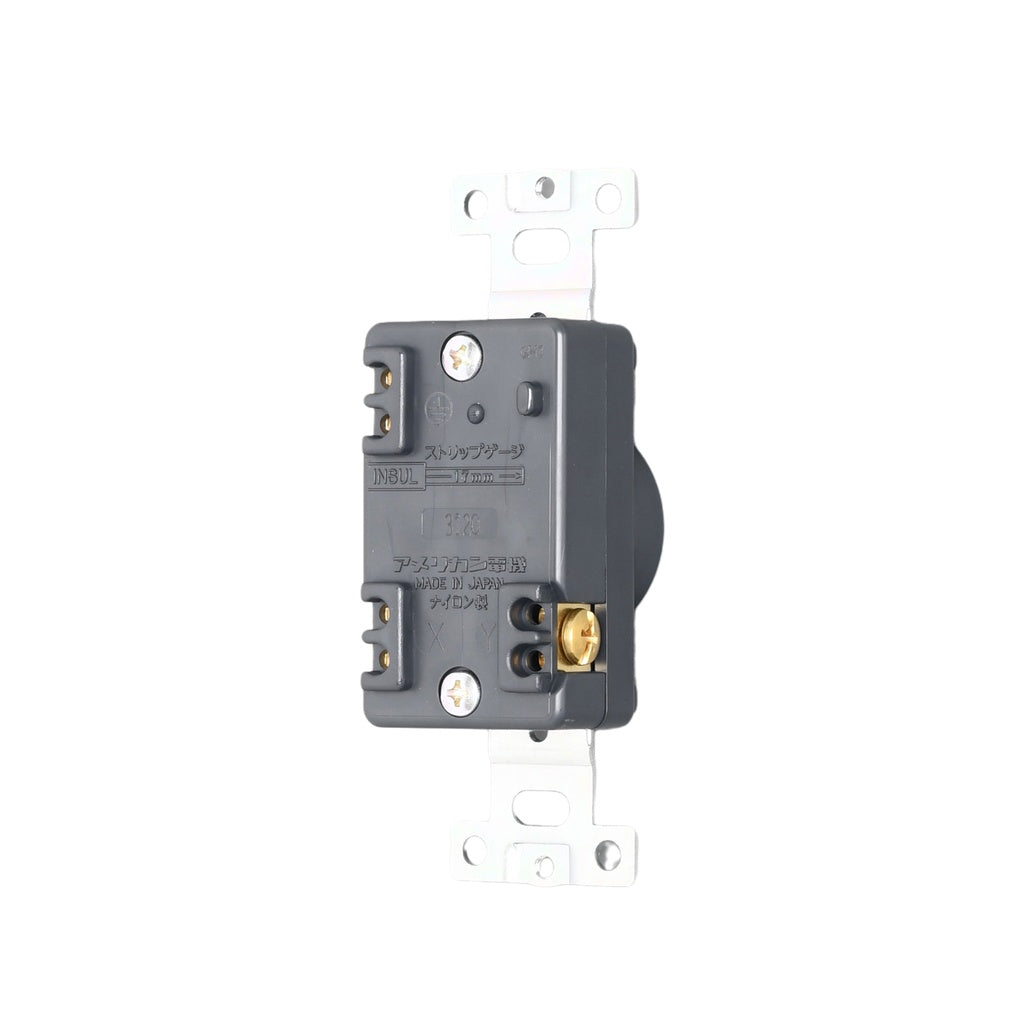

American Denki 3120 Locking Outlet 15A 250V NEMA L6-15 2 Pole 3 Wire Receptacle

American Denki 3120 Locking Outlet 15A 250V NEMA L6-15 2 Pole 3 Wire Receptacle

100% Original

100% Brand New

Catalog No.     3120

NEMA Configuration No.     NEMA L6-15

Color     Black

Wire Size     1.6φ~2φ, 2mm²

Connectivity     Crimping Terminal, Push-in-screw Terminal

Crimp Terminal     R2-4

Body Flammability     UL94 V-0

Weight     66.2g

Note     RoHS2 Compliant

Receptacle is the contact device installed in the box which is intended to establish electrical connection with an inserted plug.

The material of the main body is made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.

Connectivity is crimp terminal tightening the terminal screw on the side and insertion tightening using wire insertion holes.

Electrical Appliance and Material Safety Law (PSE) compliant product.
