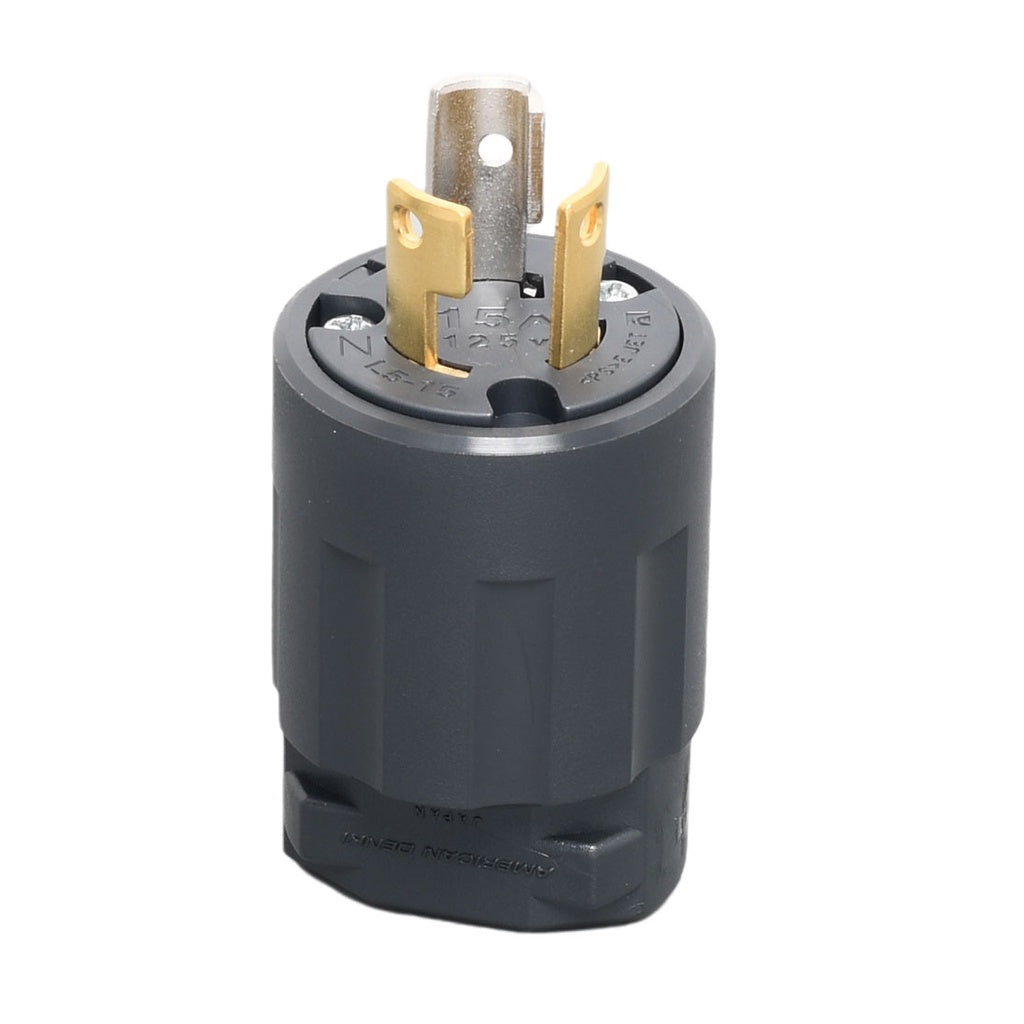

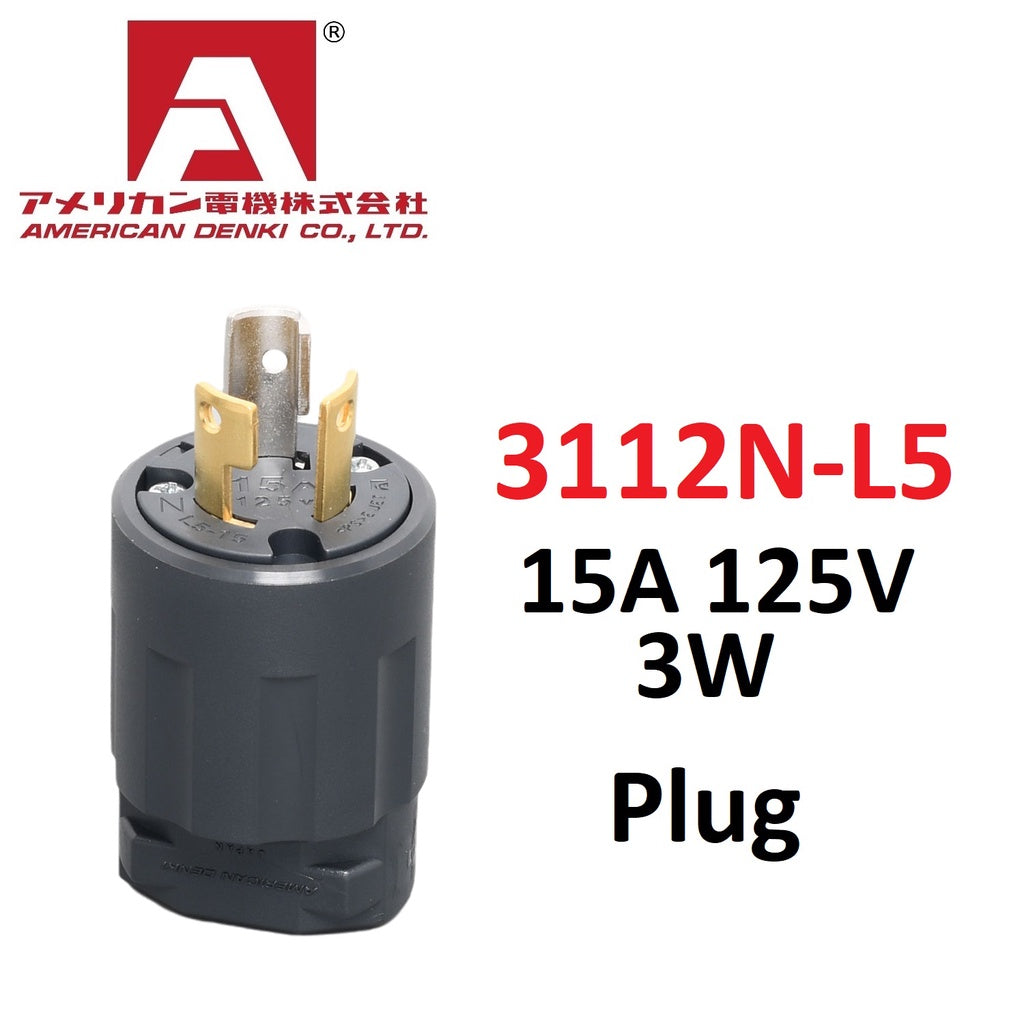

American Denki 3112N-L5 Locking Plug 15A 125V NEMA L5-15 2 Pole 3 Wire Nylon Housing
100% Original
100% Brand New
Catalog No. 3112N-L5
NEMA Configuration No. NEMA L5-15
Color Black
Wire Size 2CT/VCT 2mm²
Connectivity Crimping Terminal, Push-in-screw Terminal
Crimp Terminal R2-4
Body Flammability UL94 V-0
Weight 62.0g
Note Nylon Housing
RoHS2 Compliant
Plug is the device utilizing blades which, when inserted into a receptacle, establishes connection between the conductors of the attached flexible cord and conductors connected to the receptacle.
The material of the main body and the housing are made of flame-retardant (UL94 V-0) nylon resin which possesses heat resistance and tracking resistance and contains no harmful substances.
Connectivity is "crimp terminal" tightening the terminal screw on the side and "screwing terminal" using wire insertion holes.
Electrical Appliance and Material Safety Law (PSE) compliant product.
