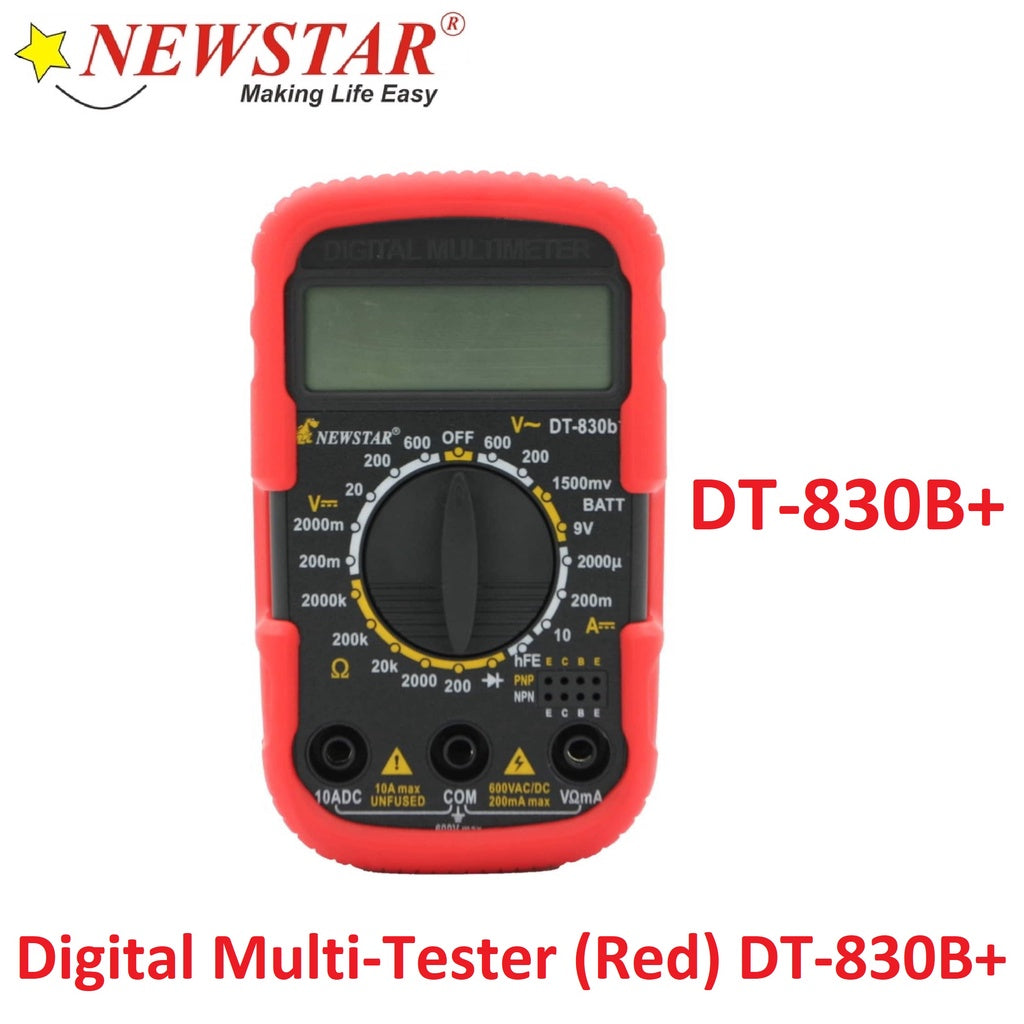

LQD Newstar DT-830B+ Digital Multi-Tester Red Multimeter Multitester Digital Tester

Newstar DT-830B+ Digital Multi-Tester Red Multimeter Multitester Digital Tester

100% Original

100% Brand New

The DT-830B+ is a mini-sized, durable, battery operated, 3 ½ digit LCD-display digital multimeter for measurements of DC and AC Voltage, DC Current, Resistance, Diode, Transistor, Dry Battery as well as Continuity Test (Option). The Dual-slope-A-D Converter plus C-MOS band-gap reference technology is taken into use for auto zeroing, polarity selection and over-range indication.

Overload Protection is provided with PTC, Transistor, Diode & Fuse for the small current load. It is designed for indoor use in the fields of laboratory, school, garage, and home.

Specifications:

DCV: 200mV (Range), 100 µ V (Resolution)

2000mV (Range), 1mV (Resolution)

20V (Range), 10mV (Resolution)

200V (Range), 100mV (Resolution)

600V (Range), 1V (Resolution)

ACV: 200V (Range), 100mV (Resolution)

600V (Range), 1V (Resolution)

DCA: 200 µ A (Range), 0.1 µ A (Resolution)

2000 µ A (Range), 1 µ A (Resolution)

20mA (Range), 10 µ A (Resolution)

200mA (Range), 100 µ A (Resolution)

10A (Range), 10mA (Resolution)

Resistance: 200 Ω (Range), 0.1 Ω (Resolution)

2000 Ω (Range), 1 Ω (Resolution)

20k Ω (Range), 10 Ω (Resolution)

200k Ω (Range), 100 Ω (Resolution)

2000k Ω (Range), 1000 Ω (Resolution)

Transistor: NPN/PNP (Range), 0~1000 (Resolution)

What’s in the box:

1 x Digital Multi-Tester

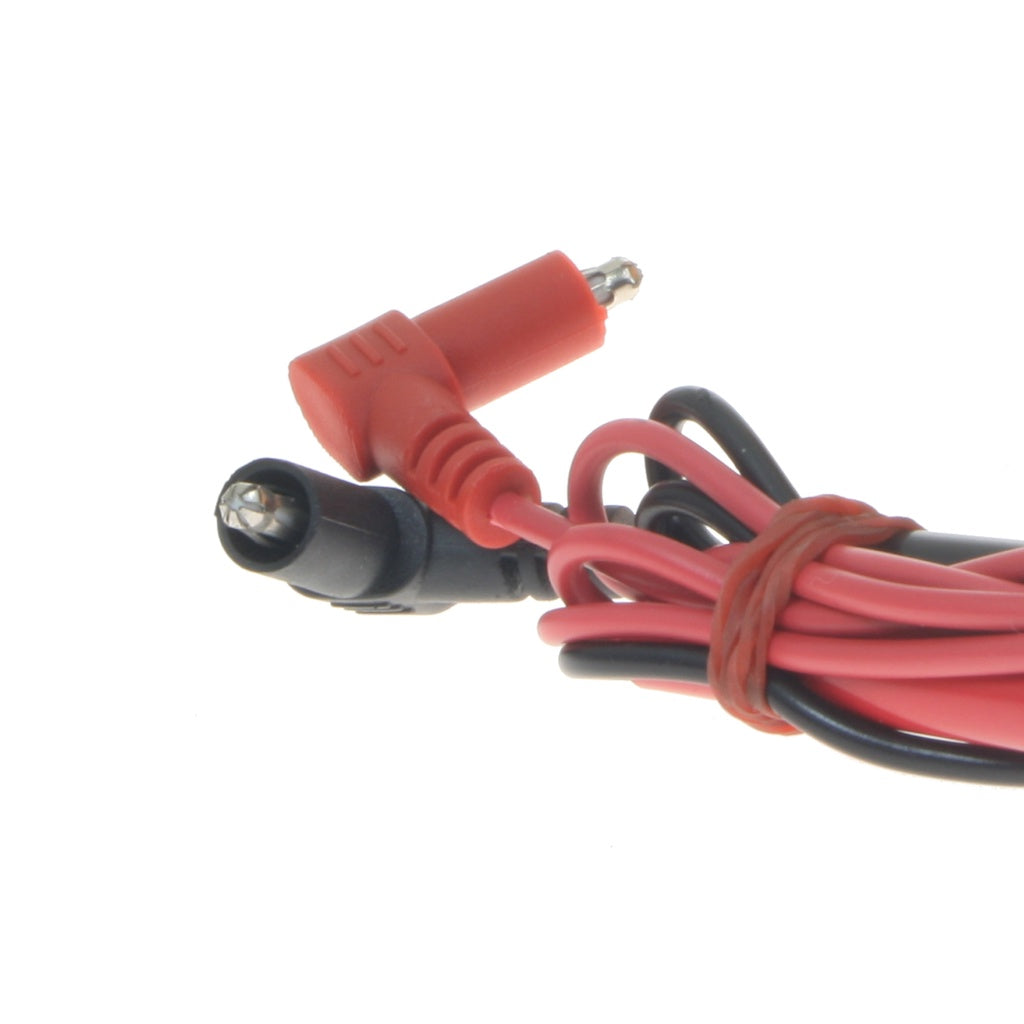

1 x Pair of test probes

1 x User manual

Dimensions:

Package: (LxWxH) cm

13.1 x 3.5 x 18.6

Weight: kg

0.2
