* 100% Original
* 100% Brand New

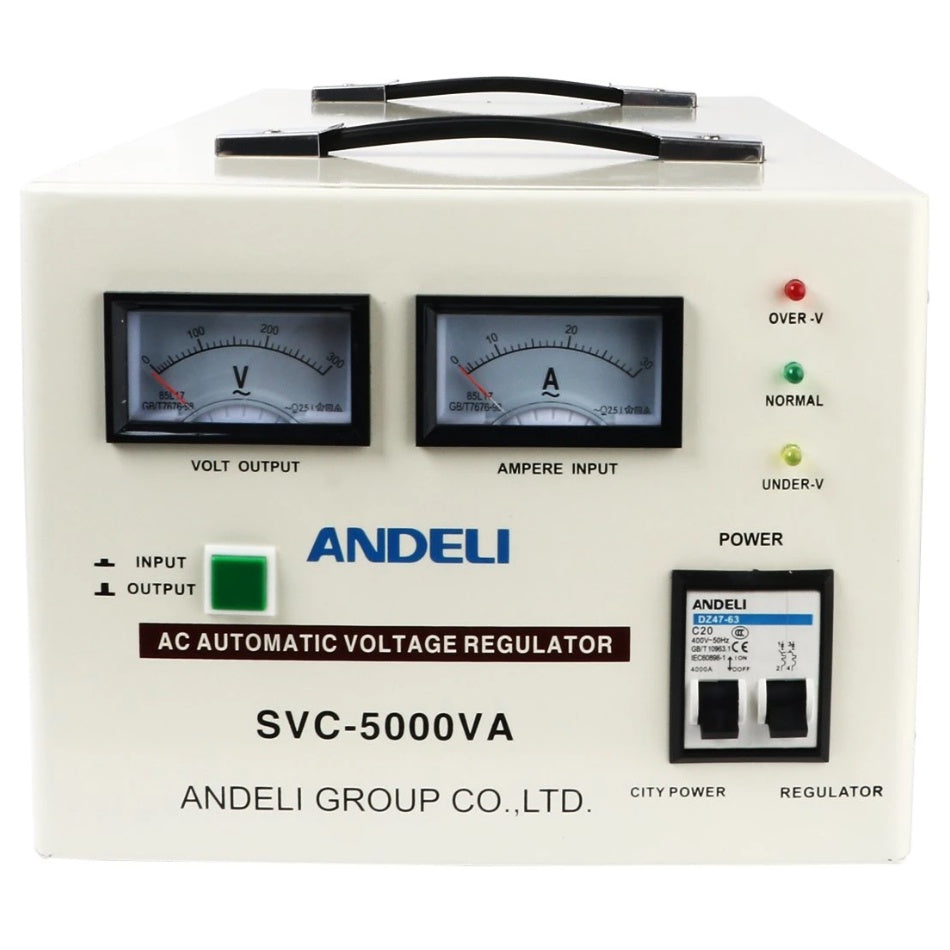

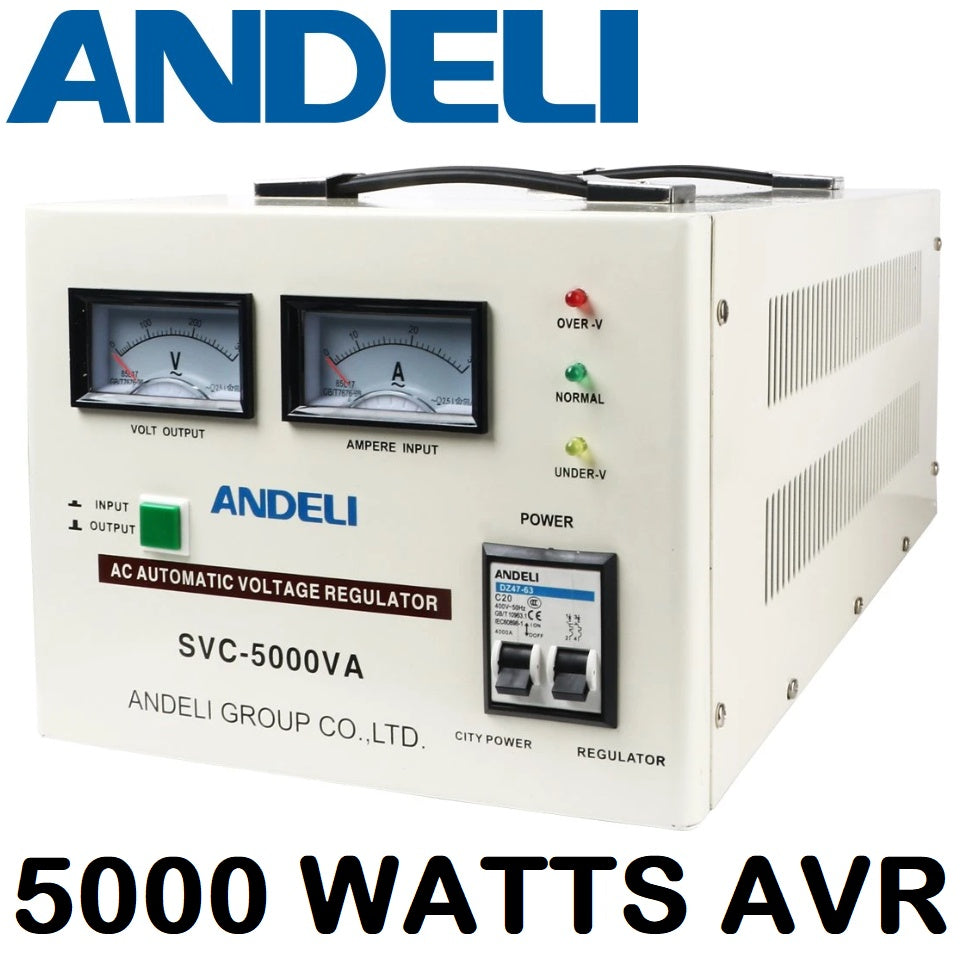

* Andeli SVC-5KVA
* Parameters:
* Input voltage: 150-250V (1P)
* Output voltage: 220V and 110V
* Stabilization accuracy: 220V±3% and 110V±6%
* Frequency: 50Hz/60Hz
* Debug time: ≤1s (with the input voltage variation of 10%)
* Overload power factor: 0.8
* Efficiency: ≥90%
* Dielectric strength: 1,500V/min
* Voltage over voltage: 246±4V
* Ambient temperature: -10±40°C
* Relative humidity: ≤95%
* Temperature rise: lower than 60°C
* Wave form distortion: no additional wave form distortion
* Insulation resistance: ≥2MΩ

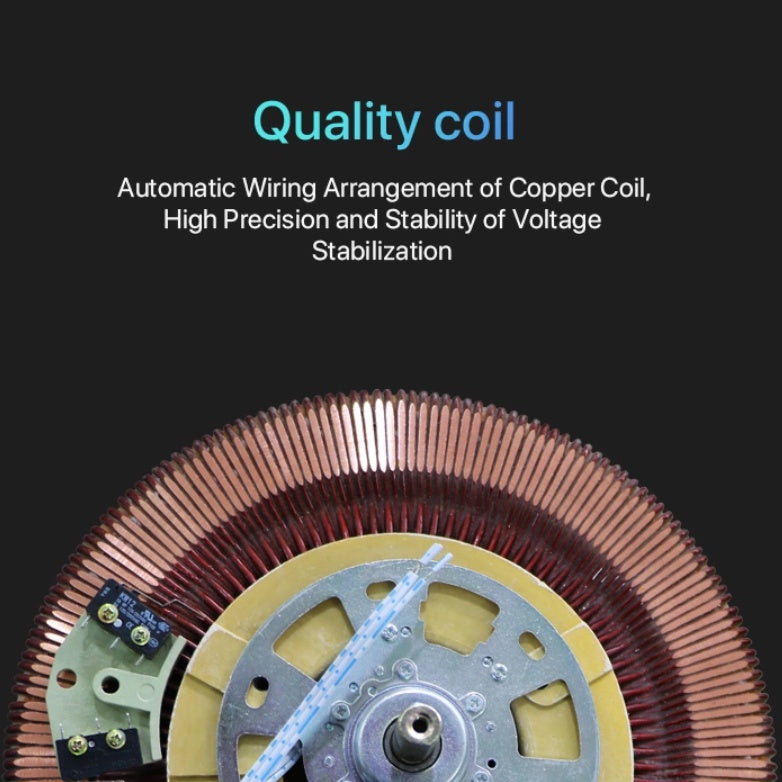

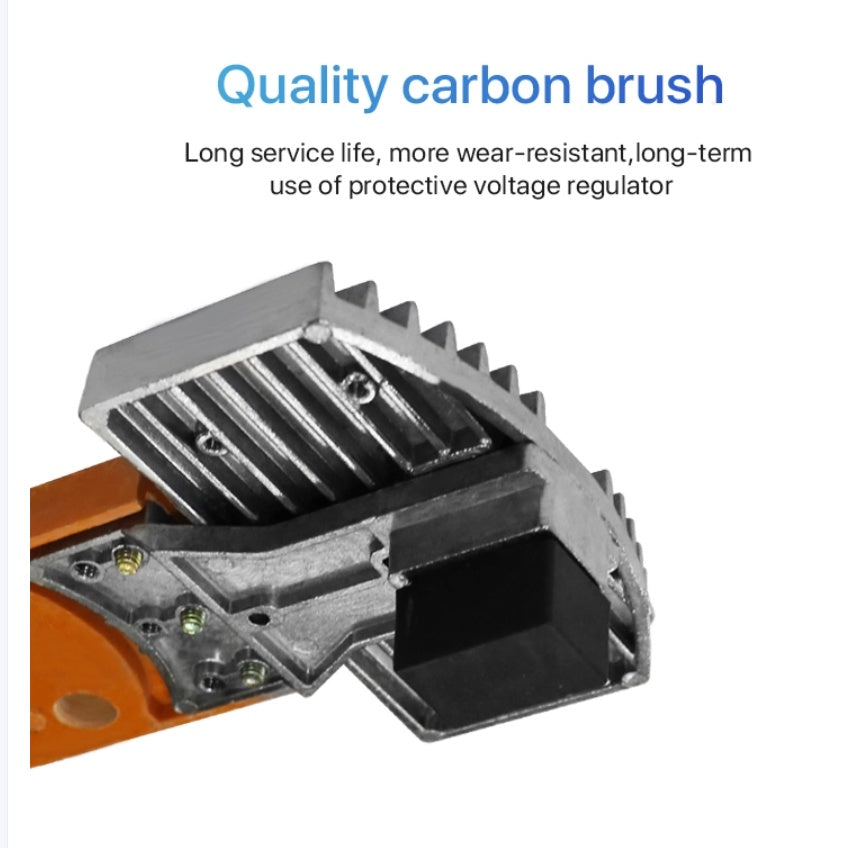

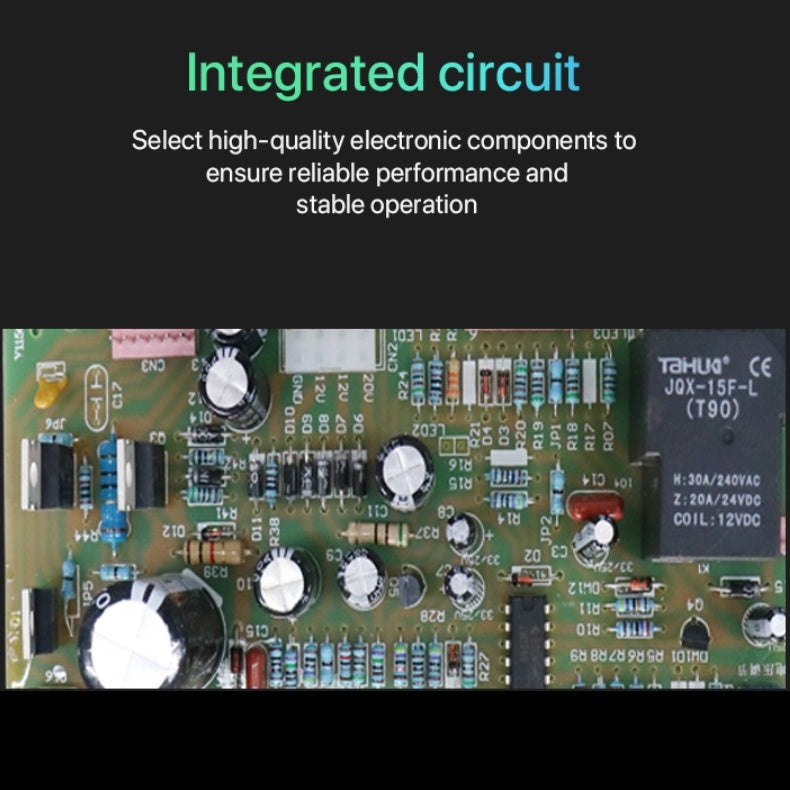

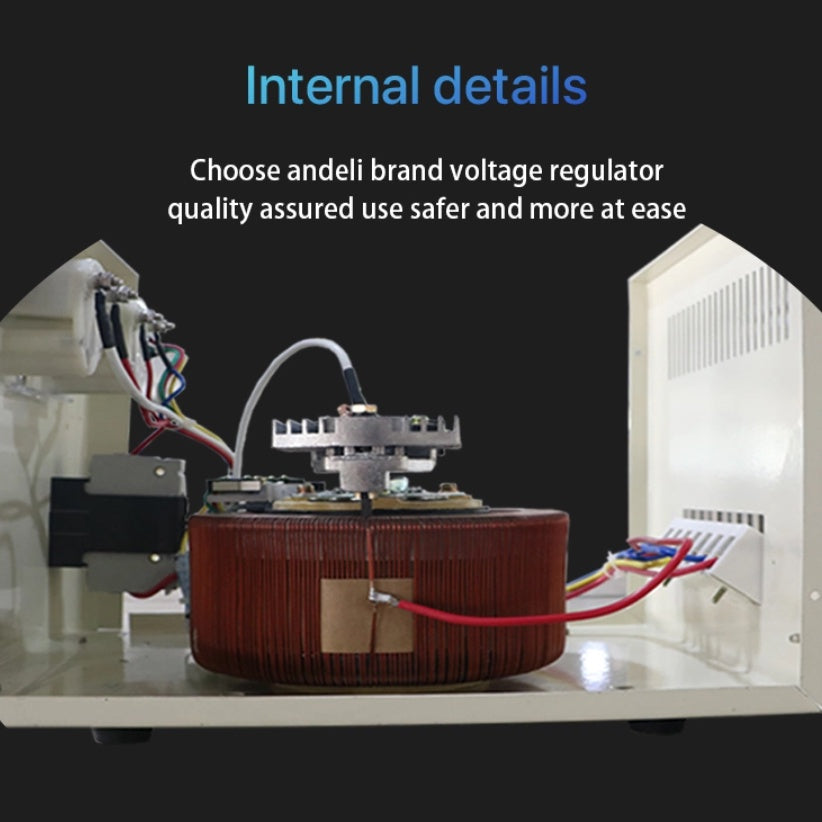

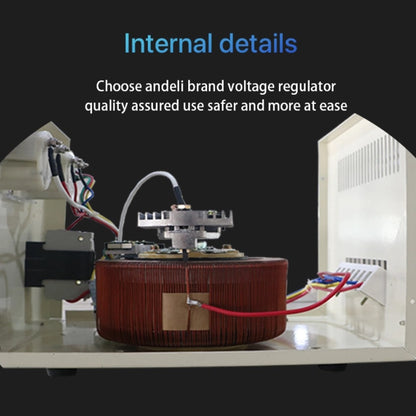

* When the voltage fluctuates or the load varies, automatic sampling control circuit will send a signal to drive the servo motor which can adjust the position of carbon brush, then the output voltage will be adjusted to rated value and get a steady state.
