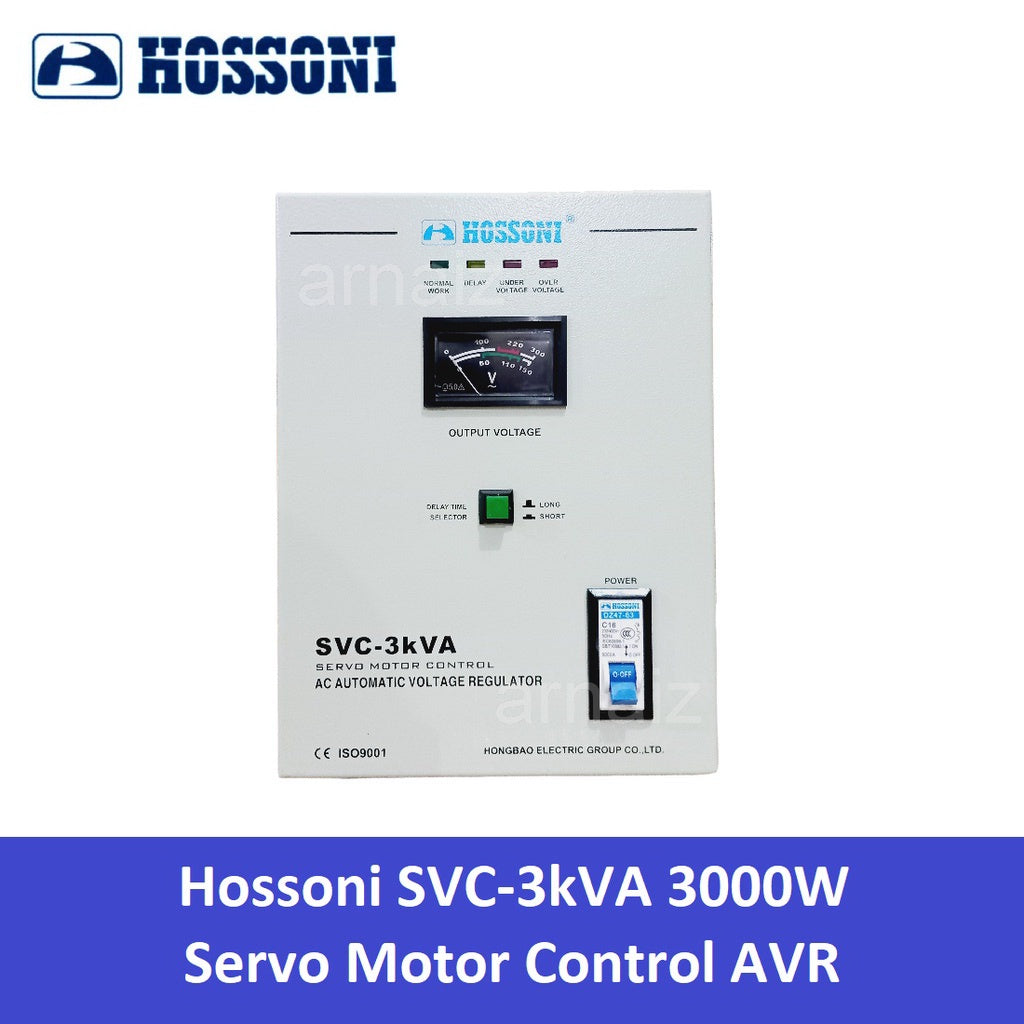

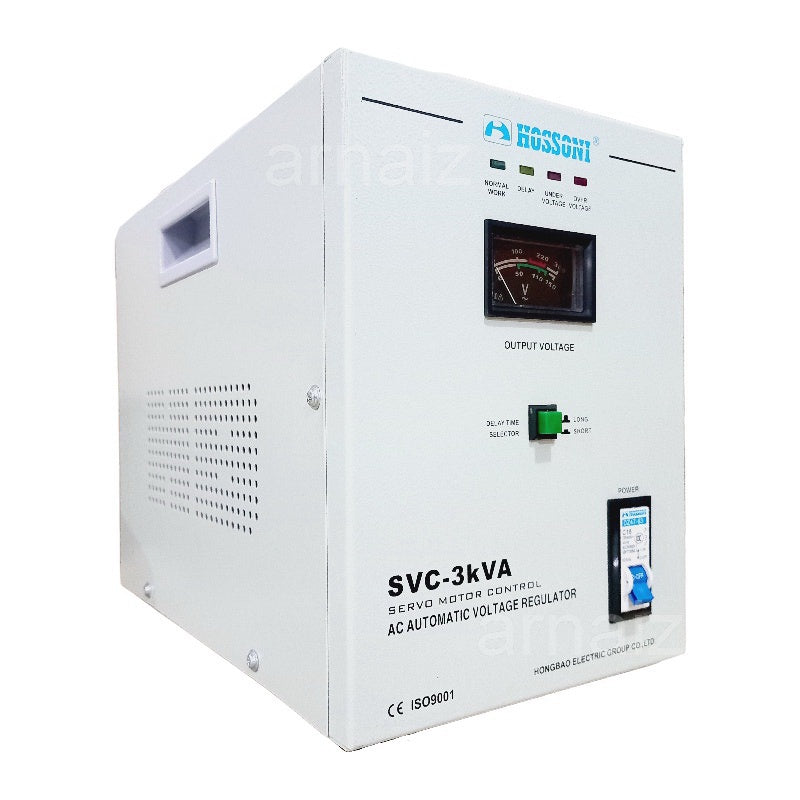

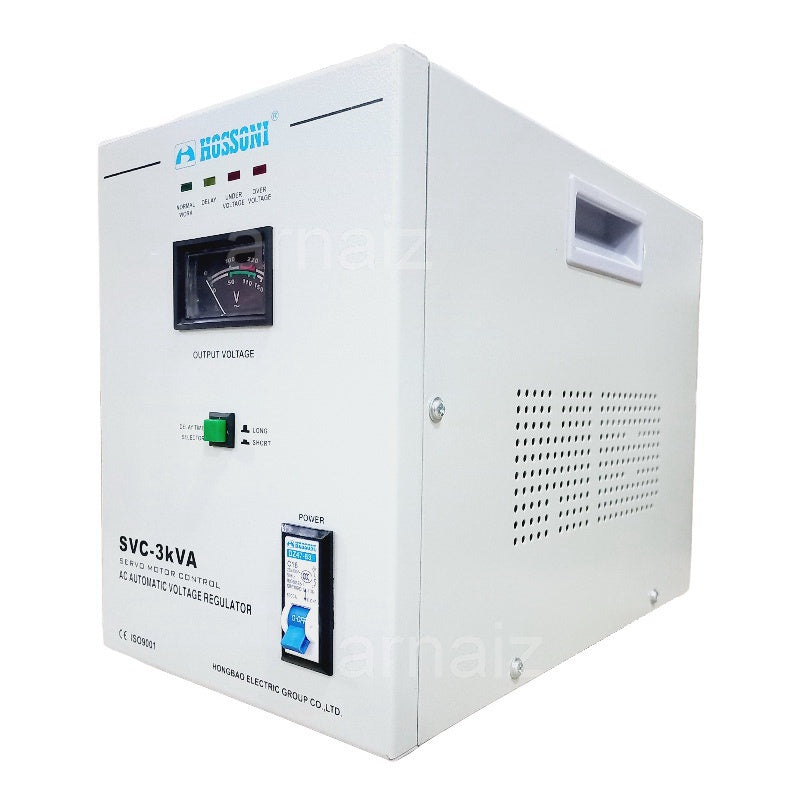

Hossoni AVR 3000W Servo Type Automatic Voltage Regulator SVC-3000 Servo Motor Control AC AVR 3KVA
100% Original
100% Brand New
Parameters: Input voltage: 160-250V
Output voltage: 220V and 110V
Stabilization accuracy: 220V±3% and 110V±6%
Frequency: 50Hz/60Hz
Debug time: ≤1s (with the input voltage variation of 10%)Overload
power factor: 0.8
Efficiency: ≥90%
Dielectric strength: 1,500V/min Voltage
over voltage: 246±4VAmbient
temperature: -10±40°CRelative
humidity: ≤95%
Temperature rise: lower than 60°C
Wave form distortion: no additional wave form distortion Insulation
resistance: ≥2MΩ
Features:
+ Single phase servo motor control
+ High precision regulation output
+ Pure copper winding coil, variable transformer an buck-boost transformer
+ Digital meter display
+ Fully automatic MCU controlled circuit
+ Available power capacity from 0.5KVA to 30KVA
+ Full protection: over voltage, under voltage, overheat, overload, sag, surge, spike and short circuit
+ Delay Time to protect the equipment from rapid fluctuations
+ CE certified
Applications:
+ Refrigeration equipment: fan, refrigerator, chest freezer, cooler and air conditioner
+ Kitchen appliances: microwave oven, rice cooker
+ Entertainment appliances: TV, DVD, VCR, DVB, HiFi
+ IT & Office equipment: PC, workstation, fax machine, photocopier
+ Heating systems: gas boiler, circulation pump
