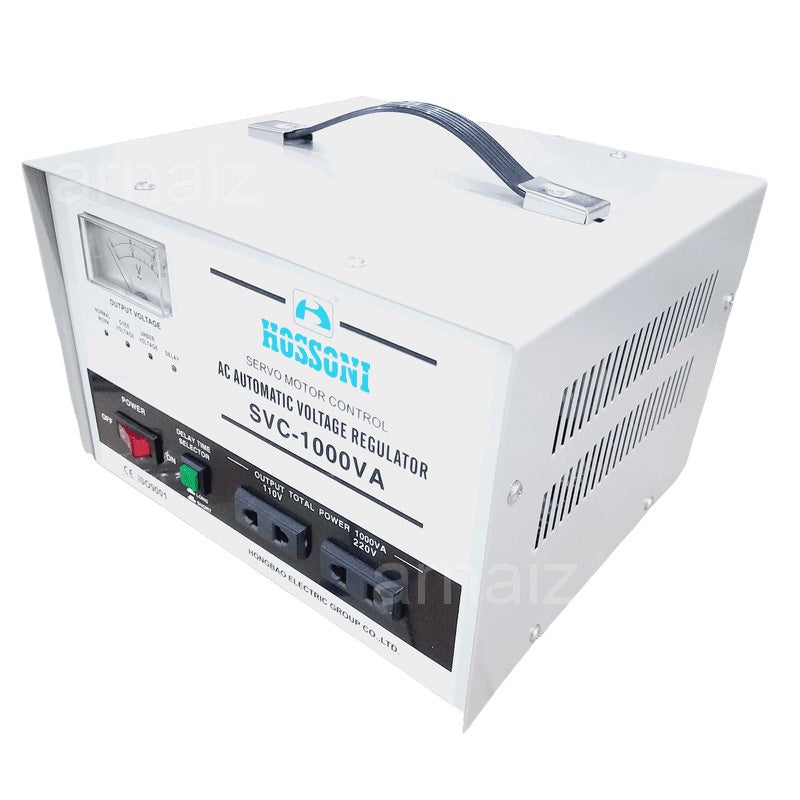

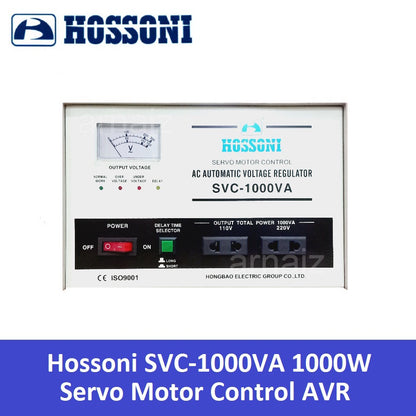

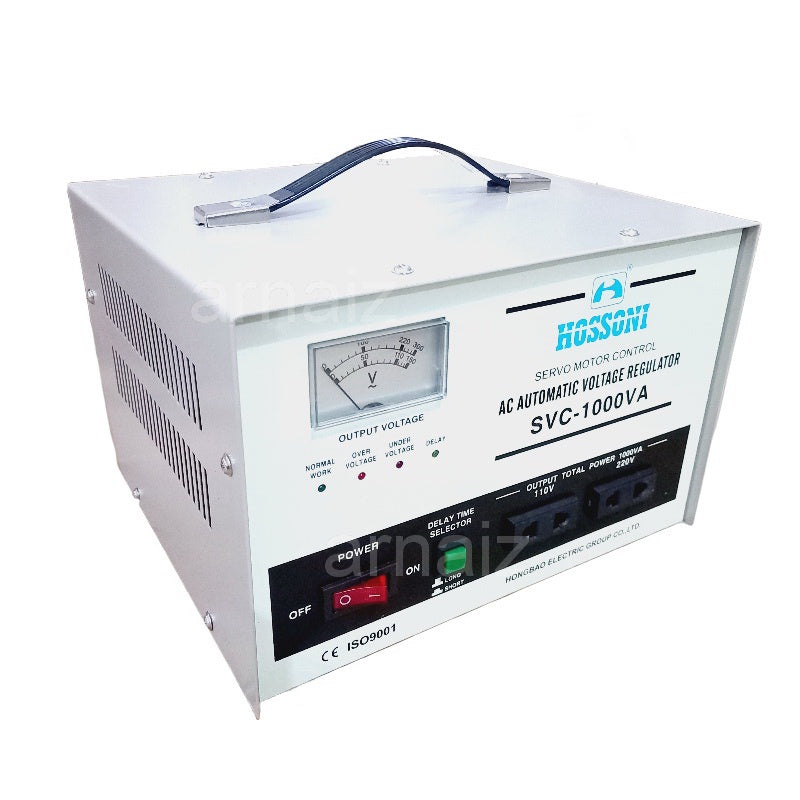

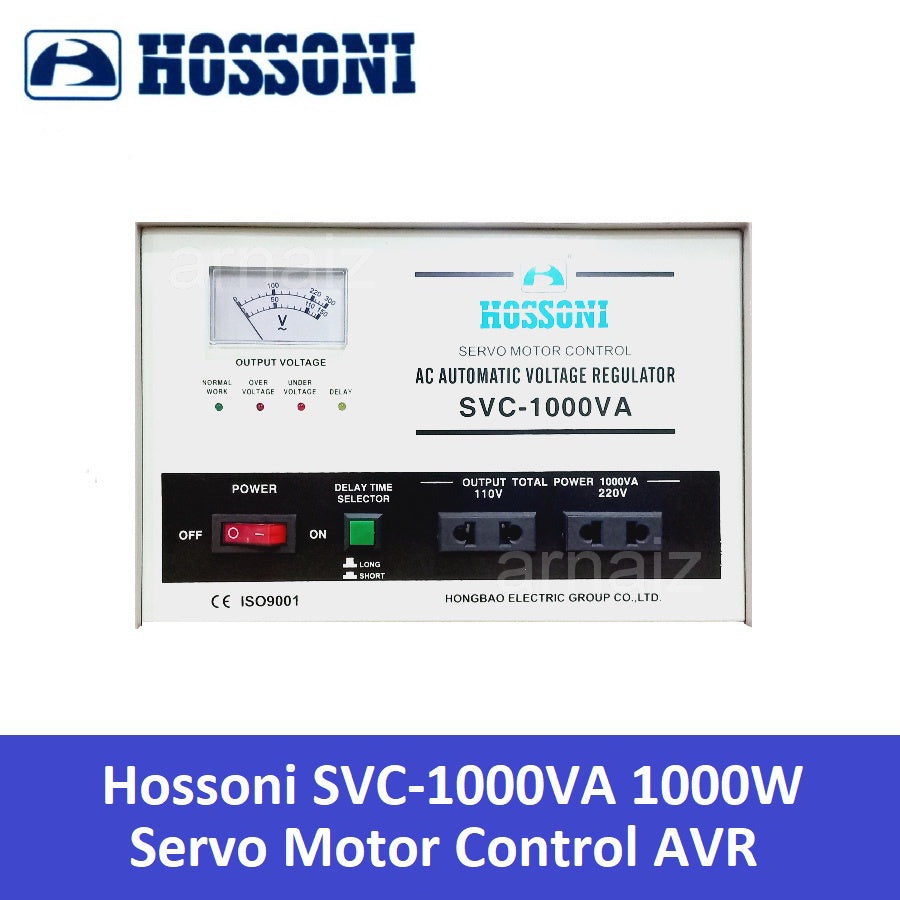

Hossoni AVR 1000W Servo Type Automatic Voltage Regulator SVC-1000 Servo Motor Control AC AVR 1KVA

Hossoni AVR 1000W Servo Type Automatic Voltage Regulator SVC-1000 Servo Motor Control AC AVR 1KVA

100% Original

100% Brand New

Input voltage(standard):     150V-260V

Frequency:     50HZ/60Hz

Input voltage(especial ):     90V-240V/120V-260V/180V-300V(different price)

Adjustable time:     <1s(when input voltage has a change of 10%)

Standard Output:     0.5KVA-10KVA  220V/110V

Ambient temperature:     -5 ºC--+ 45 ºC

Standard Output: 500VA-250KVA 220V

Waveform distortion:     No additional waveform distortion

Special Output:     110V/220V

Load power factor:     0.8

Special Output: (100V/120V/230V/240V)

Dielectric strength:     1500V/1min

Accuracy:     220V±3% 110V±6%

Insulation resistance:     ≥2MΩ

Single-phase high accuracy full automatic AC voltage stabilizer consists of contact type self-coupling voltage regulator, servo motor, automatic control circuit and other parts.

Working Principle:

When Voltage  instability or the load varies, the automatic sampling control circuit will make a signal to drive servo motor to Adjust the position of carbon brush of the self-coupling voltage regulator, Then get Stable voltage to protect your Equipment.

Main Application:

In areas With Unsteady power Voltage, The Voltage regulator should be installed, That can keep your equipment in normal working.

Wide usage Suitable to post office, store, elevator, hospital, school, publishing house and stock exchange where normal voltage is in need, Also the factories of large and middle-scale industrial and mining corp. It is very much suitable for some important devices and supporting single machine.
